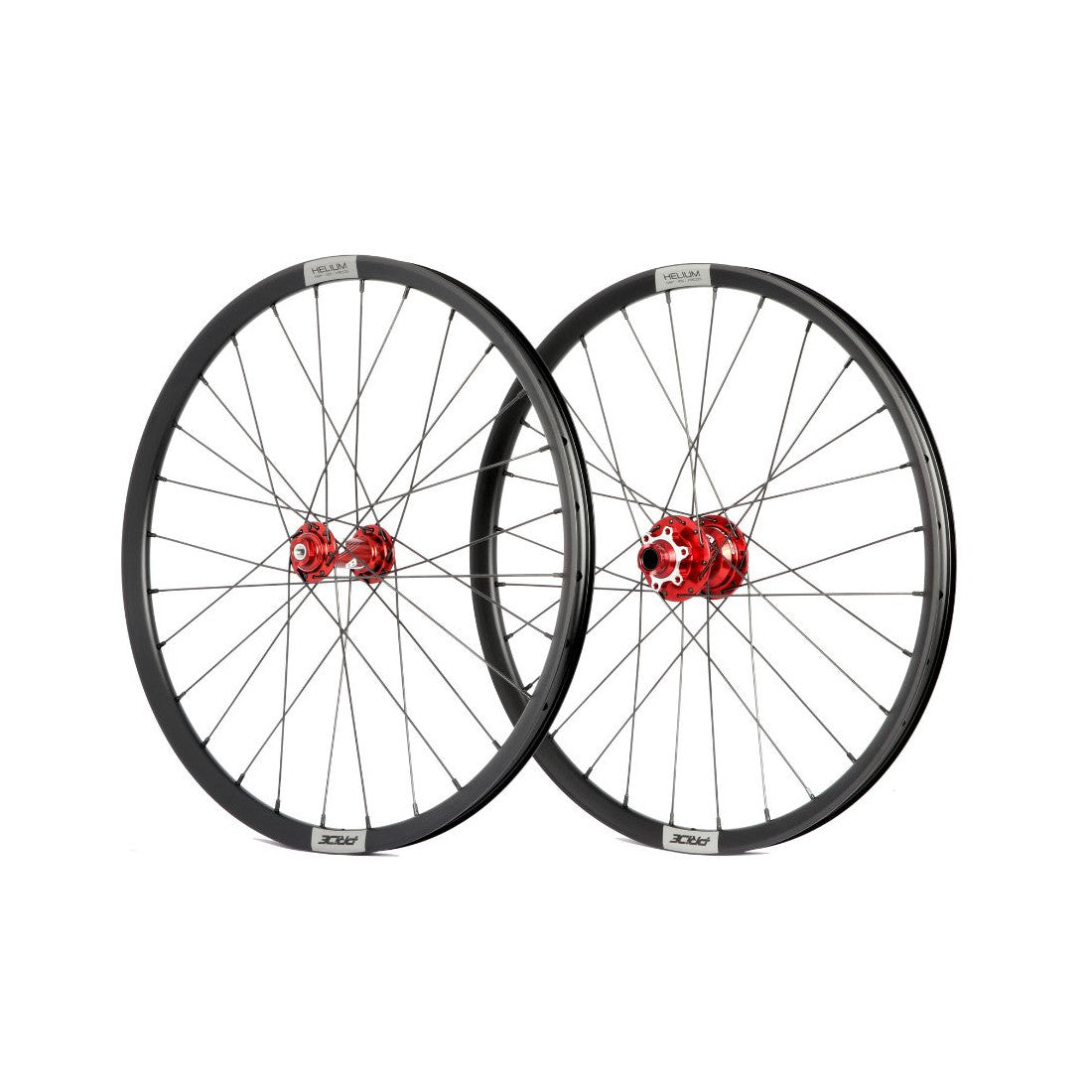

PRIDE 20" (451mm) Control V2 Disc Helium M21 10/15mm Axle Wheel Set Red

The PRIDE Control V2 Disc Helium M21 Wheel Set is developed for BMX Race bikes with 20-inch 451 mm wheels seeking a high-performance, lightweight... Read more
Regular price 577,40 €
Regular price Sale price 577,40 €
View full details

Description

The PRIDE Control V2 Disc Helium M21 Wheel Set is developed for BMX Race bikes with 20-inch 451 mm wheels seeking a high-performance, lightweight and reliable wheelset. It combines Helium 6069-T6 aluminium rims with CNC-machined Control V2 hubs, offering an excellent balance between stiffness, responsiveness and durability.

The rim benefits from the Arcos System® process, enabling precise internal design and optimisation of the aluminium's mechanical properties. Its low-profile 19 mm depth promotes rapid acceleration, excellent manoeuvrability and immediate response during race phases.

The Pride Racing Control V2 hubs in 6061-T6 aluminium feature high-flange designs to improve wheel stiffness. The rear system with 7075-T6 aluminium driver and 6 micro-toothed pawls delivers 180 engagement points for fast and efficient power pick-up.

The ISO6 disc mount ensures compatibility with suitable braking systems, while the 10x100 mm front axle and 15x110 mm rear axle provide a robust and precise fit. The blue finish also gives the wheelset a distinctive visual identity.

With a contained weight of 1458 g per pair, this setup combines lightness, dynamism and reliability for riders seeking high-performance BMX Race wheels. The 28 spokes per wheel reinforce the solidity required for the demands of competition.

Ref: 15986271715708

Technical information

General information
Product: BMX Race wheelset
Model: PRIDE Control V2 Disc Helium M21
Diameter: 20" (451 mm)
Use: BMX Race competition
Braking type: Disc only
Main material: Aluminium
Total pair weight: 1458 g

Rim specifications
Model: Pride Helium Expert
Material: 6069-T6 Aluminium
Construction: Double wall
Technology: Arcos System®
Rim height: 19 mm
Rim width: 25 mm
Spoke count: 28
Valve type: Presta
Tyre compatibility: 20 to 34 mm
Compatible tyre sizes:
20 x 1-1/8"
20 x 1-3/8"
V-Brake compatibility: No

Front hub
Model: Pride Control V2
Material: 6061-T6 Aluminium
Manufacturing: CNC machining
Spacing: 10 x 100 mm
Hole count: 28
Bearing: 15267
Disc mount: ISO6

Rear hub
Model: Pride Control V2
Material: 6061-T6 Aluminium
Spacing: 15 x 110 mm
Thru-axle: 15 mm (not included)
Hole count: 28
Driver standard: Shimano
Driver: 7075-T6 Aluminium
Engagement system:
6 micro-toothed pawls
Engagement by 3 simultaneous pawls
180 engagement points
Disc mount: ISO6
Bearing: 6902

Detailed weights
Front wheel: 615 g
Rear wheel: 843 g
Complete pair: 1458 g

Additional information
Lock ring and spacers included for rear chainline adjustment
Rim tape not included
Rear 15 mm thru-axle not included (frame-specific)
