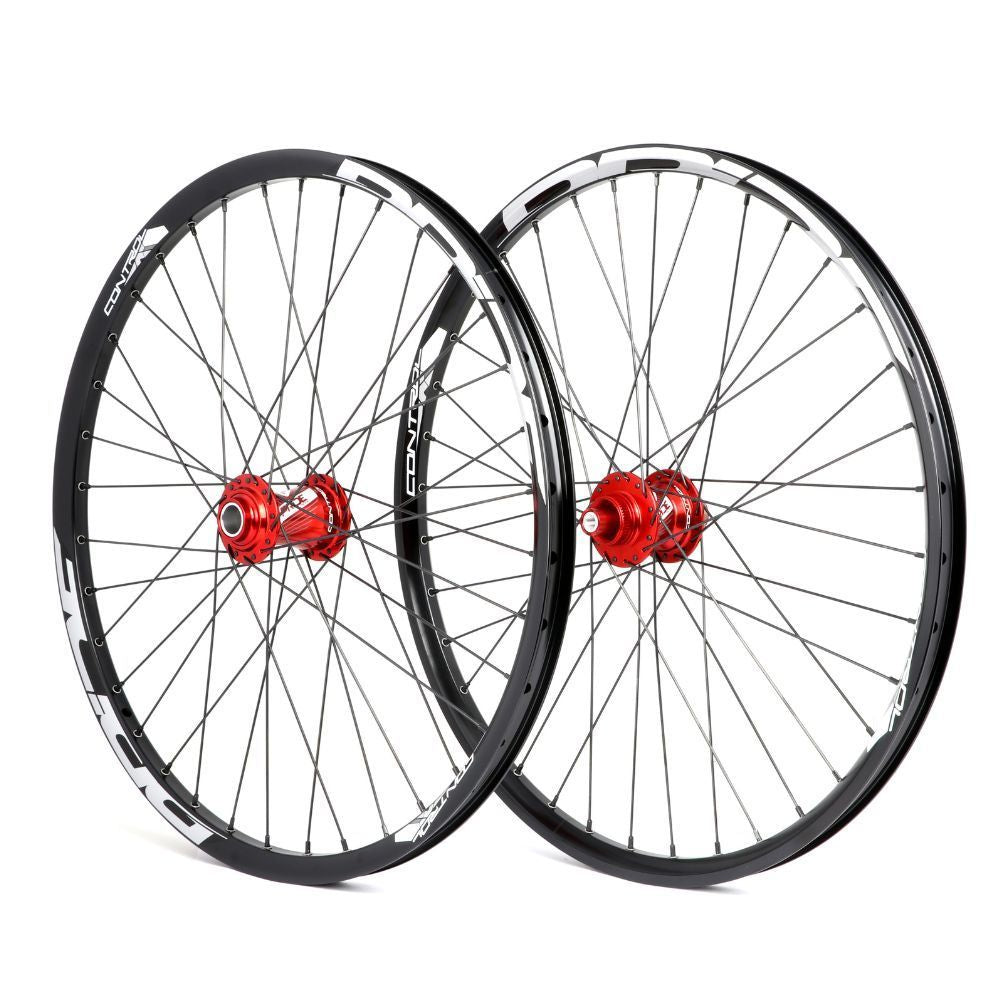

PRIDE 24" (507mm) Control V2 Disc Axes 20/15mm Wheel Set Red

The PRIDE 24" (507mm) Control V2 Disc Axes 20/15mm Wheel Set is specially developed for BMX Race in a 24-inch (507) format. This wheelset... Read more
Regular price 524,90 €
Regular price Sale price 524,90 €
View full details

Description

The PRIDE 24" (507mm) Control V2 Disc Axes 20/15mm Wheel Set is specially developed for BMX Race in a 24-inch (507) format. This wheelset combines 6061-T6 aluminium rims and Pride Control V2 hubs to deliver a high-performance, reliable setup suited to the demands of competition.

The rims feature a double-wall construction offering an excellent balance between stiffness and strength. With their 36 spokes, 19 mm profile height and optimised width, they provide good stability and precise handling during sprints, technical sections and corner exits.

The Pride Control V2 6061-T6 aluminium hubs complete this wheelset with a fast engagement system featuring 6 pawls and 180 engagement points. This technology enables direct power transfer, ideal for explosive starts and the rapid accelerations typical of BMX Race. The ISO6 disc mounting ensures compatibility with disc brake systems.

This wheelset uses thru-axles of 20 mm at the front and 15 mm at the rear, ensuring excellent overall stiffness. The rear hub is equipped with a Shimano driver standard and supplied with a lock ring and spacers for precise chainline adjustment.

With its robust build and competition-oriented design, the PRIDE Control V2 Disc 24" represents an ideal choice for riders looking for a reliable, responsive and durable aluminium wheelset to optimise the performance of their BMX Race.

Ref: 15986272960892

Technical information

General
Type: BMX Race wheel pair
Diameter: 24 inches
ETRTO standard: 24-507
Use: BMX Race competition
Brake compatibility: ISO6 disc
Colour: Blue
Main material: Aluminium

Rim specifications
Material: 6061-T6 Aluminium
Construction: Double wall
Number of spokes: 36
Rim height: 19 mm
Front width: 27 mm
Rear width: 28 mm
Valve type: Schrader
Compatible tyre section: 28 to 65 mm

Front hub
Brand: Pride Control V2
Material: 6061-T6 Aluminium
Spacing: 100 x 20 mm
Axle type: 20 mm through axle
Disc mount: ISO6
Bearing: 6805
Number of spokes: 36

Rear hub
Brand: Pride Control V2
Material: 6061-T6 Aluminium
Spacing: 110 x 15 mm
Axle type: 15 mm through axle
Driver standard: Shimano
Engagement system: 6 pawls
Engagement: 180 points
Disc mount: ISO6
Bearing: 6902
Included items: Lock ring + spacers for chainline adjustment

Weight
Front wheel: approx. 904 g
Rear wheel: approx. 1085 g
Total pair weight: approx. 1989 g

Additional information
20 mm front axle not included
Rim tape not included
