PRIDE

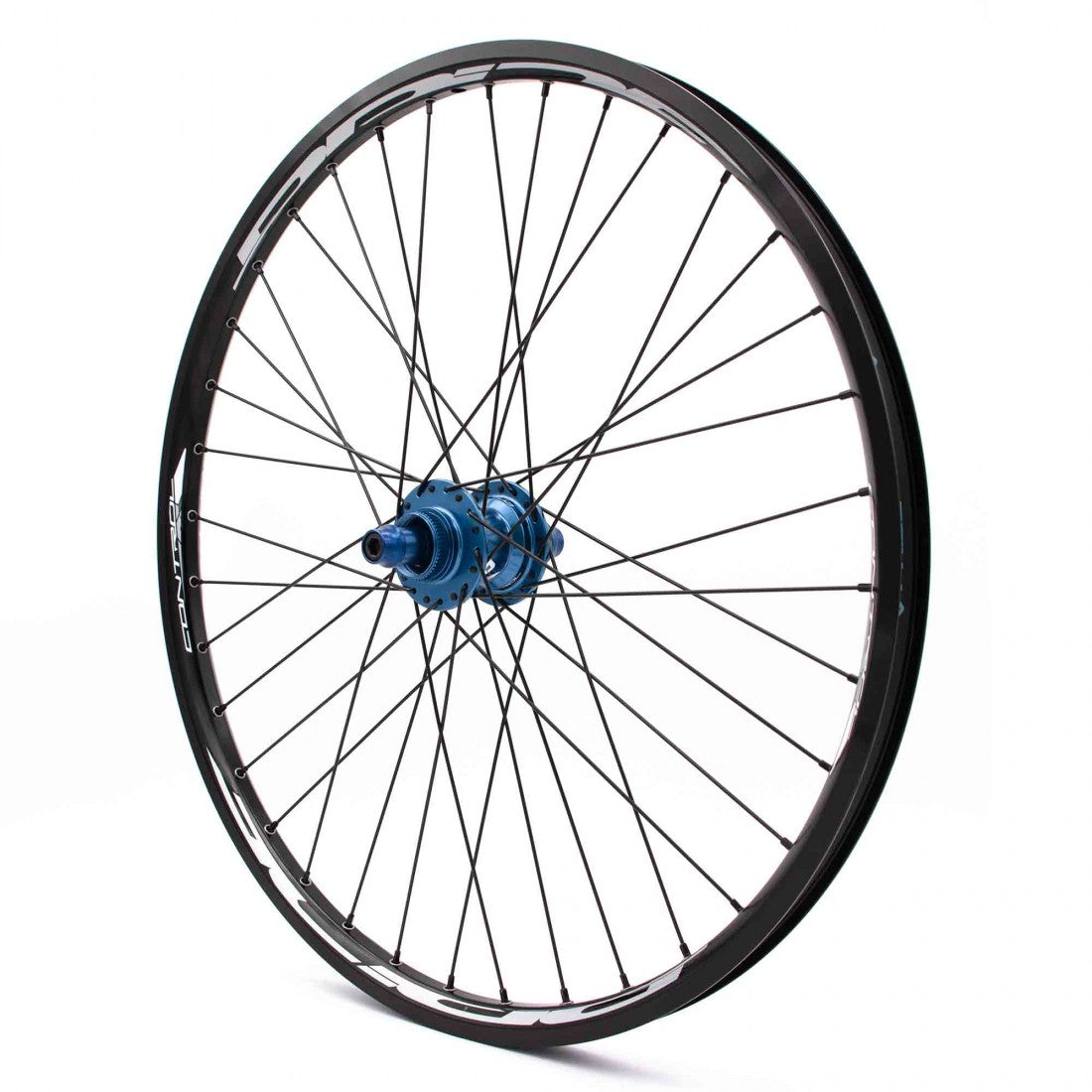

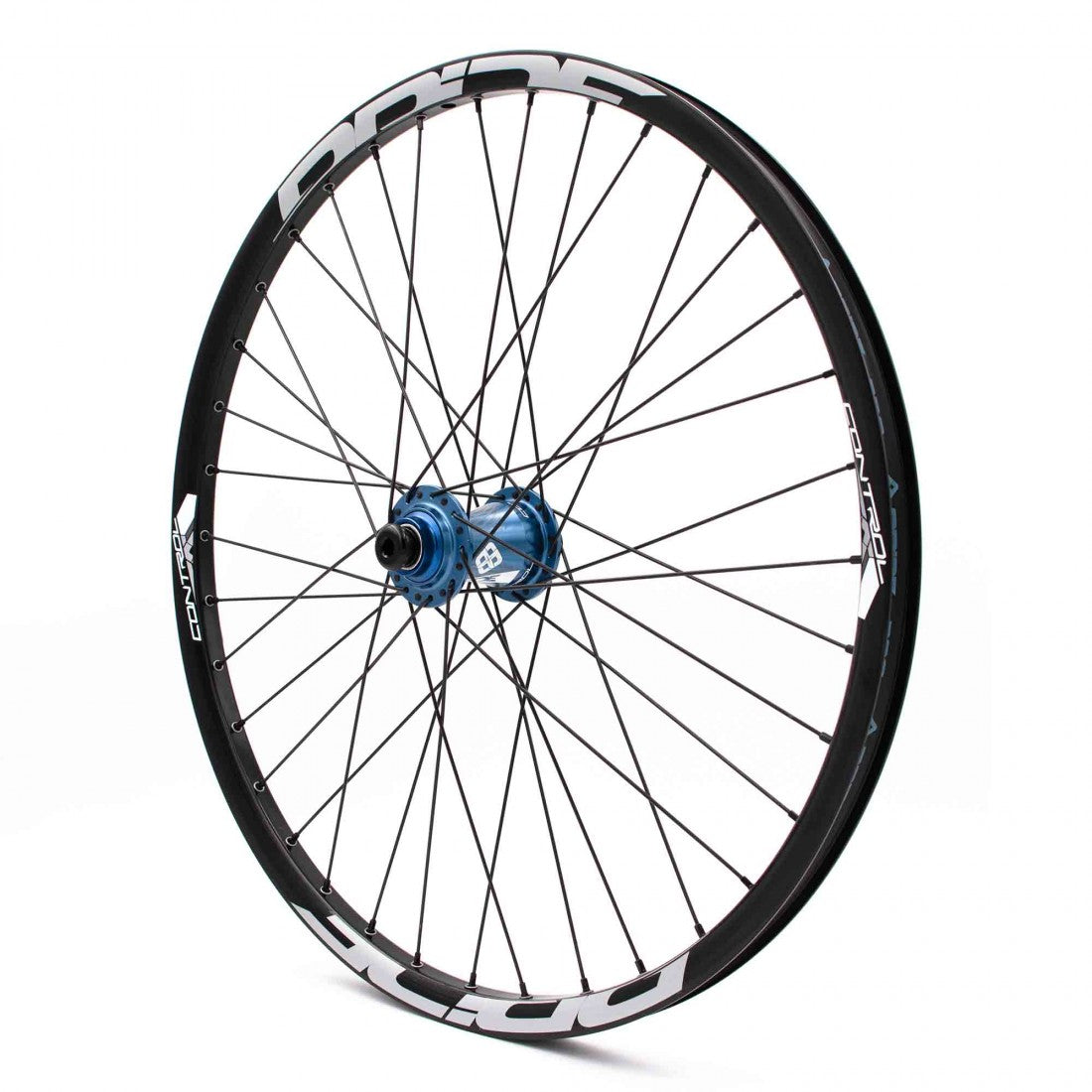

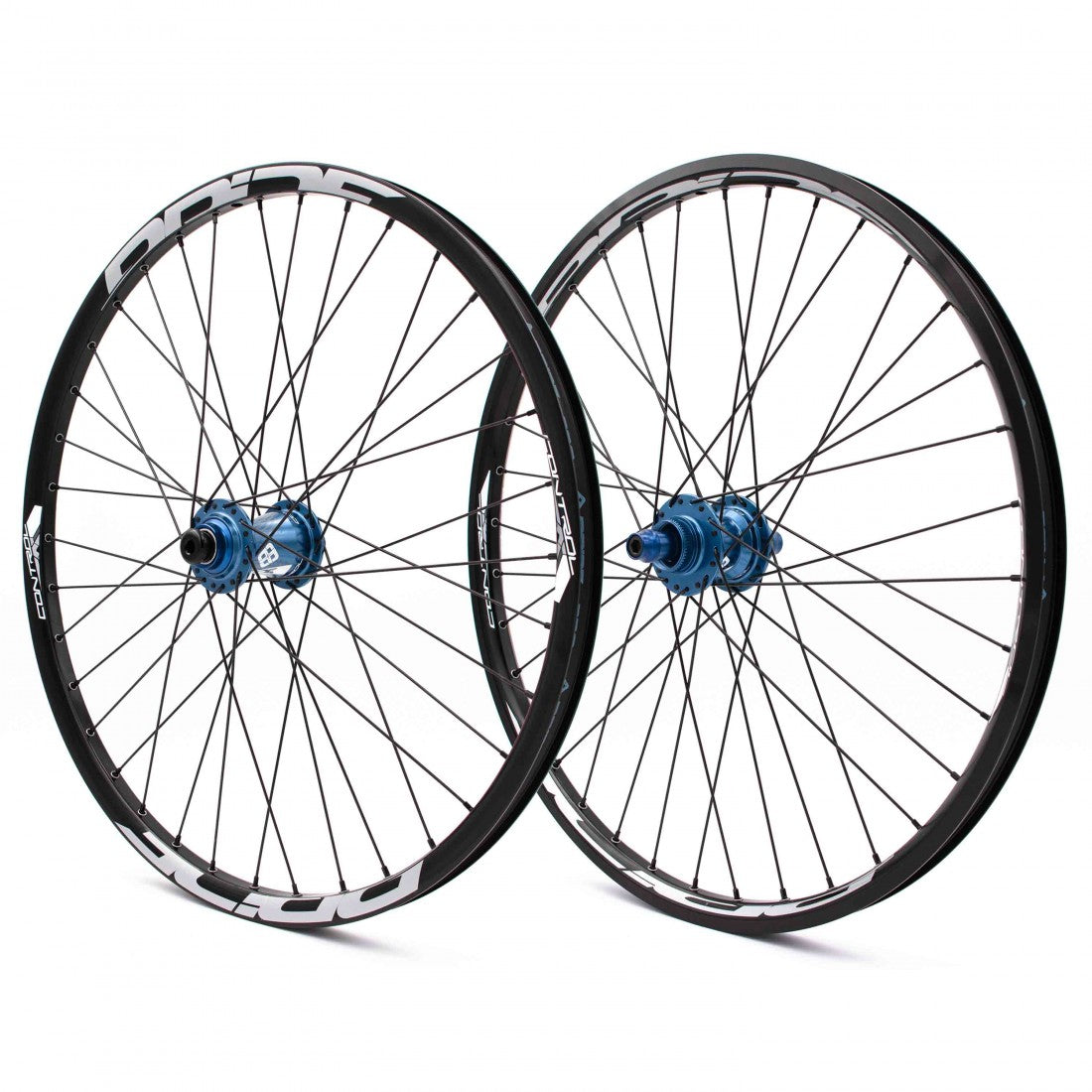

PRIDE 24" (507mm) Control V1 Disc Wheelset 20/10mm Axles Blue

The PRIDE Control V1 Disc 24" (507mm) Wheelset is developed for BMX Race Cruiser riders seeking a reliable, high-performance and responsive wheelset. Its design... Read more
Regular price 524,90 €
Regular price Sale price 524,90 €
View full details

Description

The PRIDE Control V1 Disc 24" (507mm) Wheelset is developed for BMX Race Cruiser riders seeking a reliable, high-performance and responsive wheelset. Its design combines 6061-T6 double-wall aluminium rims and Control hubs to achieve an excellent balance between stiffness, efficiency and strength.

The Pride Control Cruiser rims benefit from a T6 heat treatment that enhances their mechanical performance while keeping weight in check. With their 36 spokes, 19 mm profile height and compatibility with tyres from 28 to 65 mm, they offer excellent stability during acceleration and cornering phases.

The Control 6061-T6 aluminium hubs feature a high-performance engagement system with 6 micro-toothed pawls delivering 180 engagement points. This technology allows for rapid pick-up out of corners and off the start line. The wheelset is equipped with a Centerlock disc mount and specific 20 mm front and 10 mm rear axles.

Designed for the demands of BMX Race, this wheelset combines stiffness, immediate acceleration and durability. The robust construction withstands the stresses of the track while maintaining efficient power transfer with every pedal stroke.

With its complete front/rear build and its blue hub finish, the PRIDE Control V1 Disc is a high-performance solution for improving the handling of a 24-inch BMX Cruiser. It offers increased precision and responsiveness for riders seeking a reliable competition setup.

Ref: 15986274075004

Technical information

Discipline: BMX Race Cruiser
Diameter: 24" / 507 mm
Brake compatibility: Disc only
Main material: Aluminium 6061-T6
Rim model: Pride Control Cruiser
Front ETRTO size: 23-507
Rear ETRTO size: 24-507
Construction: Double wall
Rim height: 19 mm
Front rim width: 27 mm
Rear rim width: 28 mm
Number of spokes: 36 per wheel
Valve type: Schrader
Compatible tyre section: 28 to 65 mm
V-Brake compatibility: No

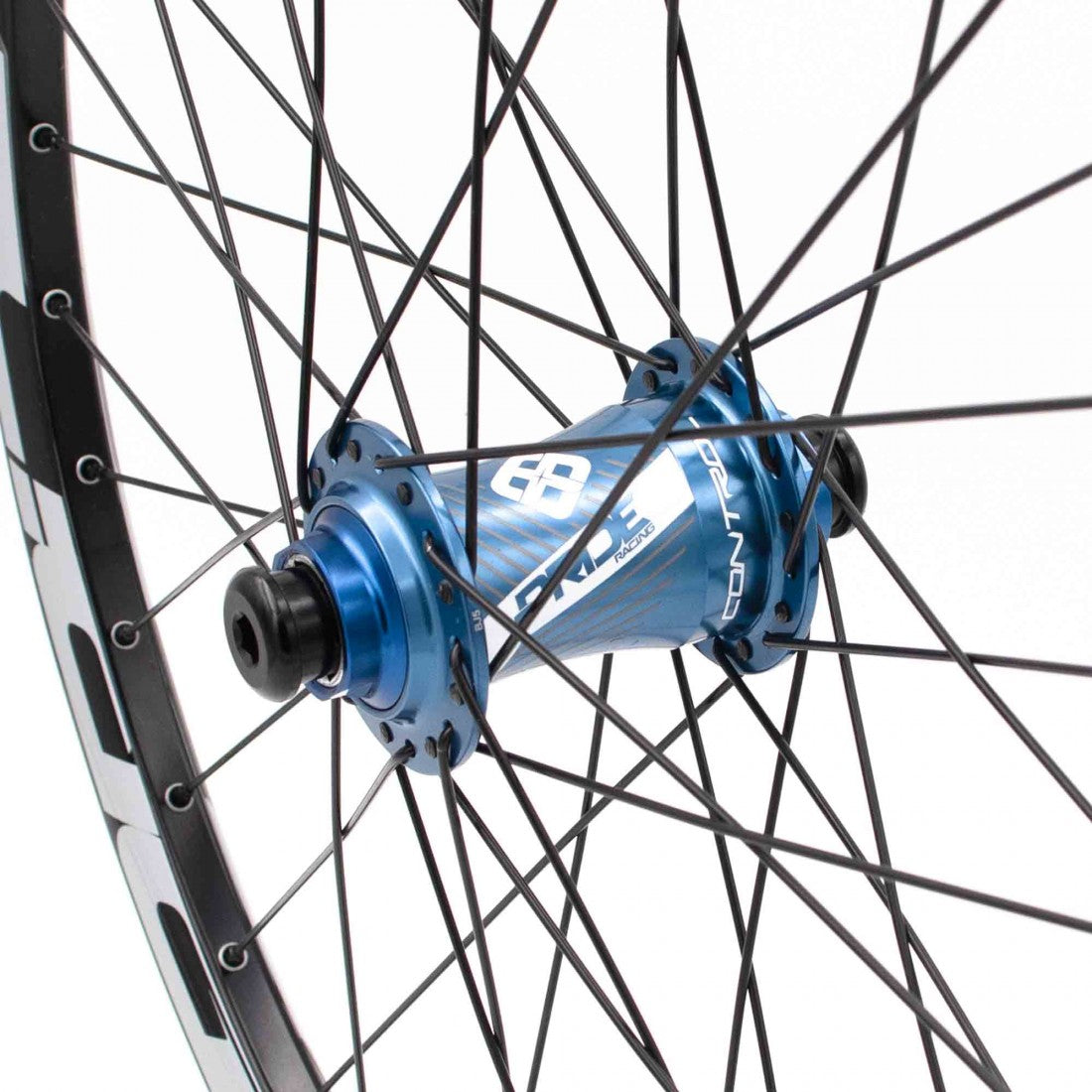

Front hub
Material: Aluminium 6061-T6
Spacing: 20 x 100 mm
20 mm front axle not included
Disc mount: Centerlock
Bearing: 6805

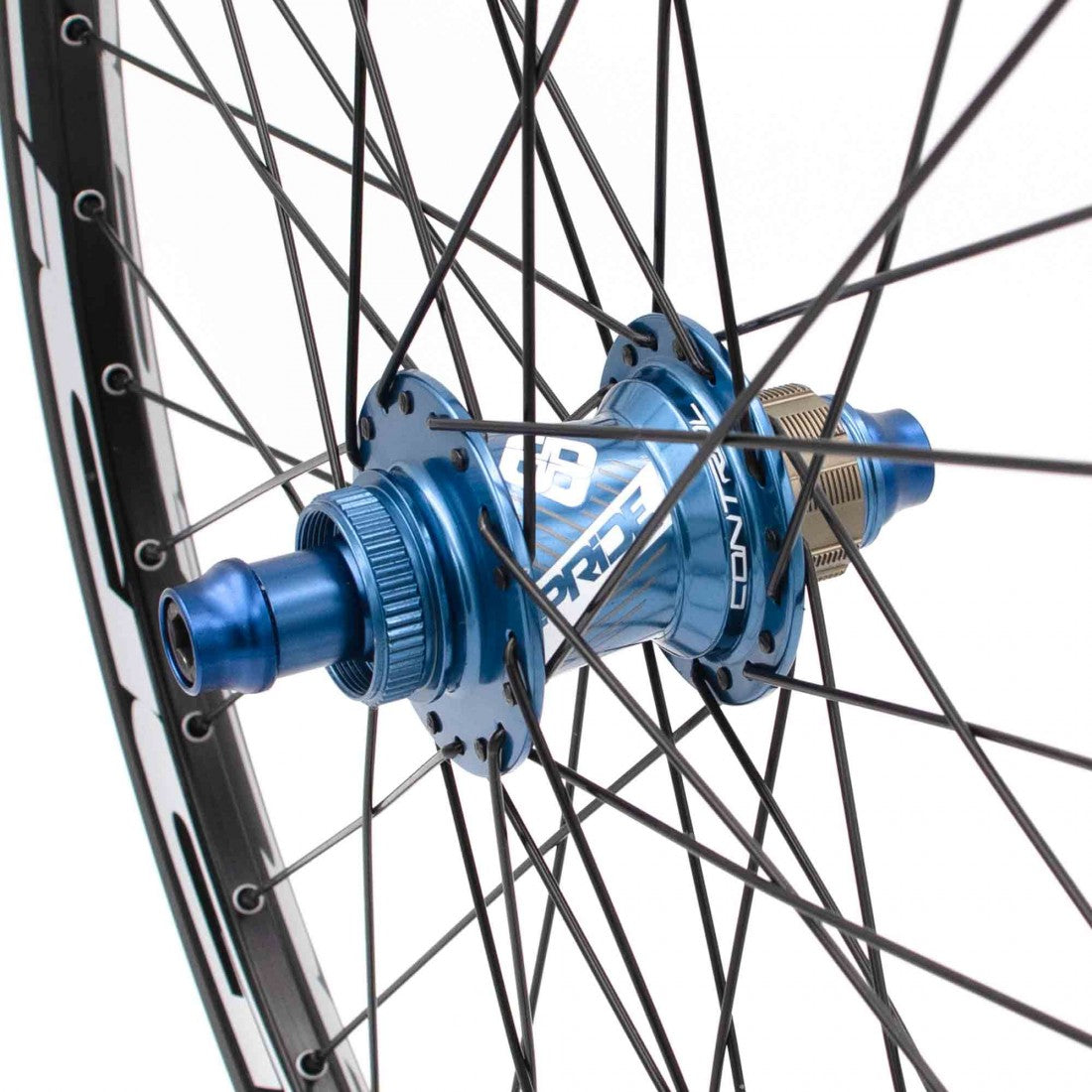

Rear hub
Material: Aluminium 6061-T6
Spacing: 10 x 110 mm
Fixing: Female threading
Freehub body standard: Shimano
Engagement system: 180 points / 6 pawls
Bearing: 6902
Supplied with lock ring and spacers for chainline adjustment

Total pair weight: 1989 g
Front wheel weight: 904 g
Rear wheel weight: 1085 g

Rim tape not included
20 mm front axle sold separately
Designed for BMX Race drivetrain with disc braking
