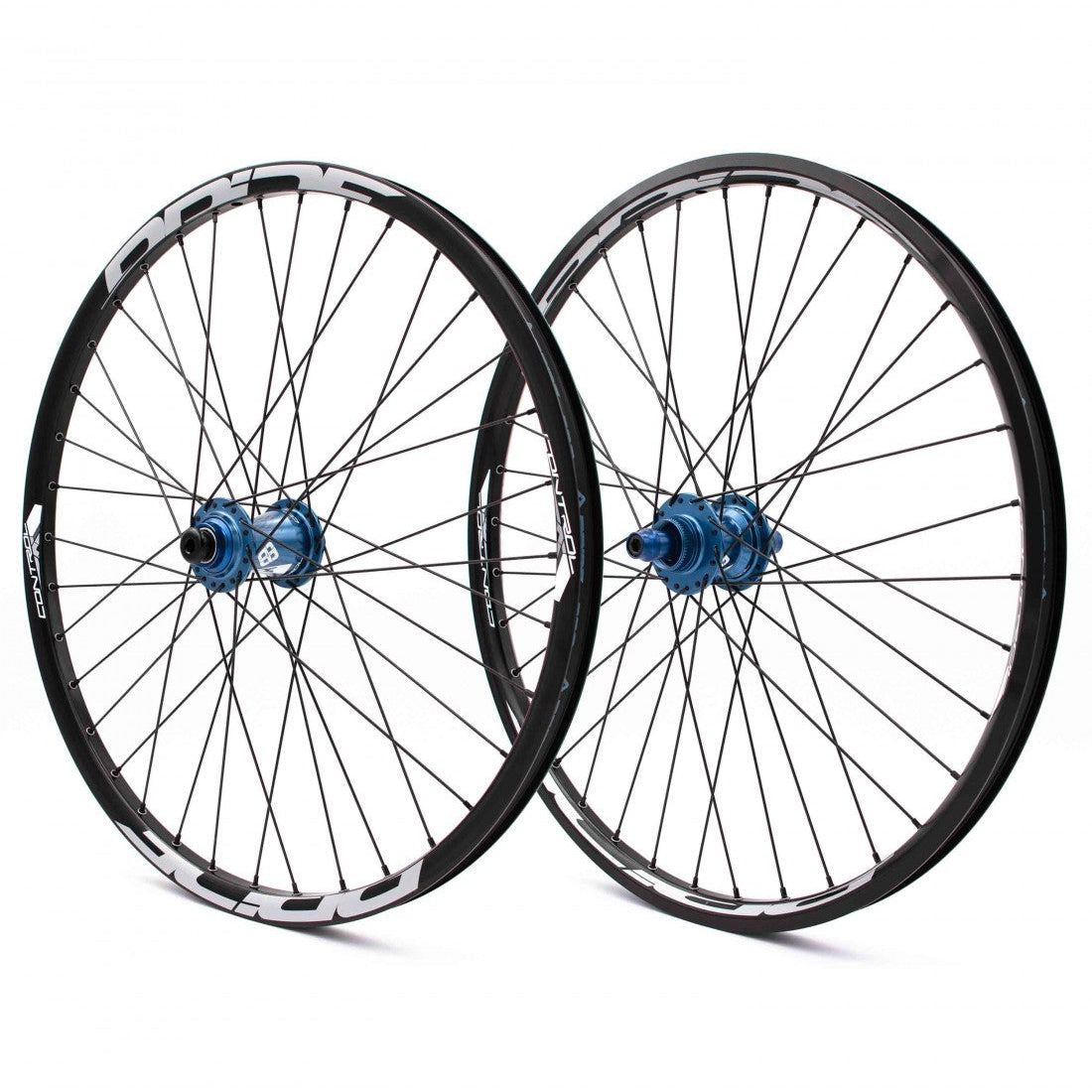

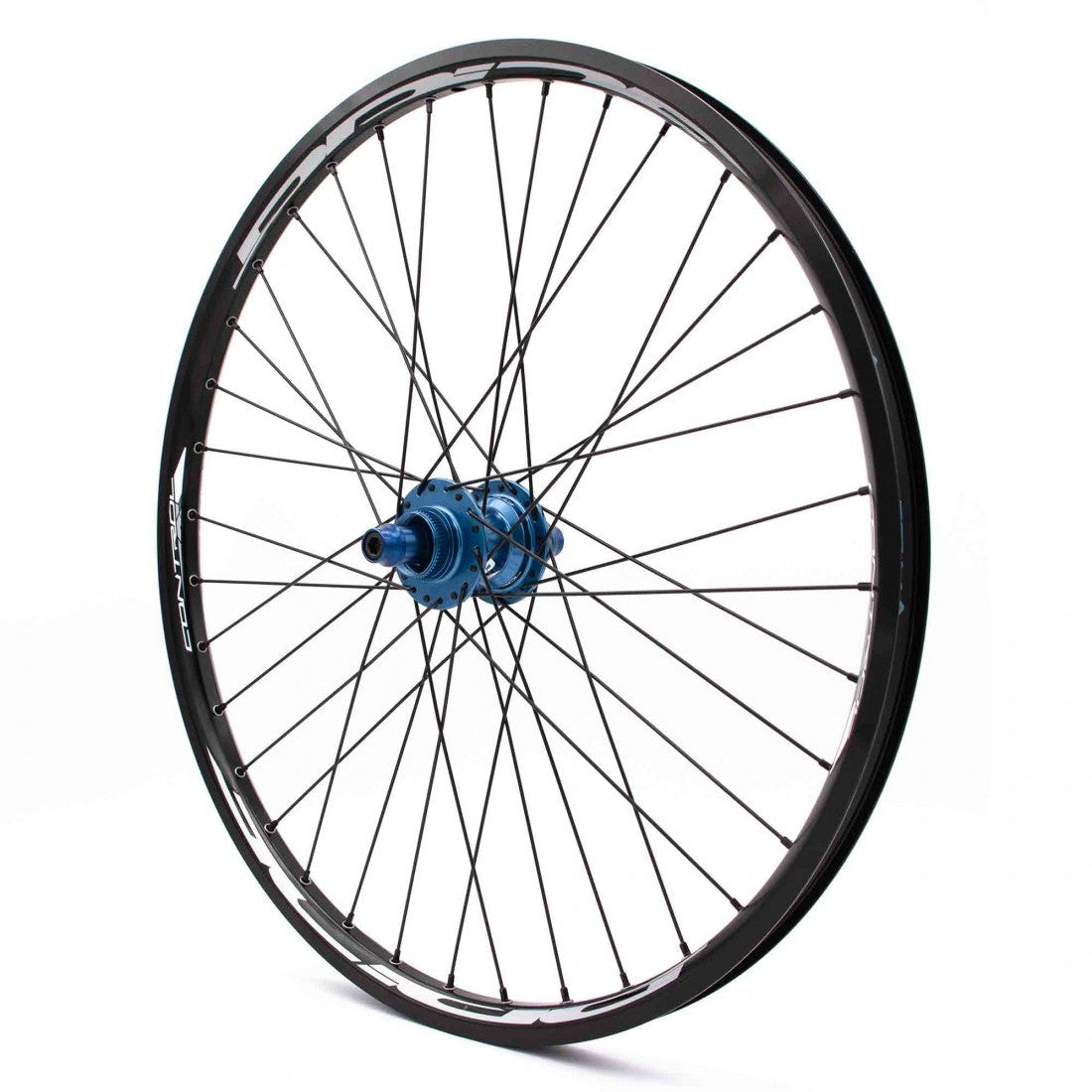

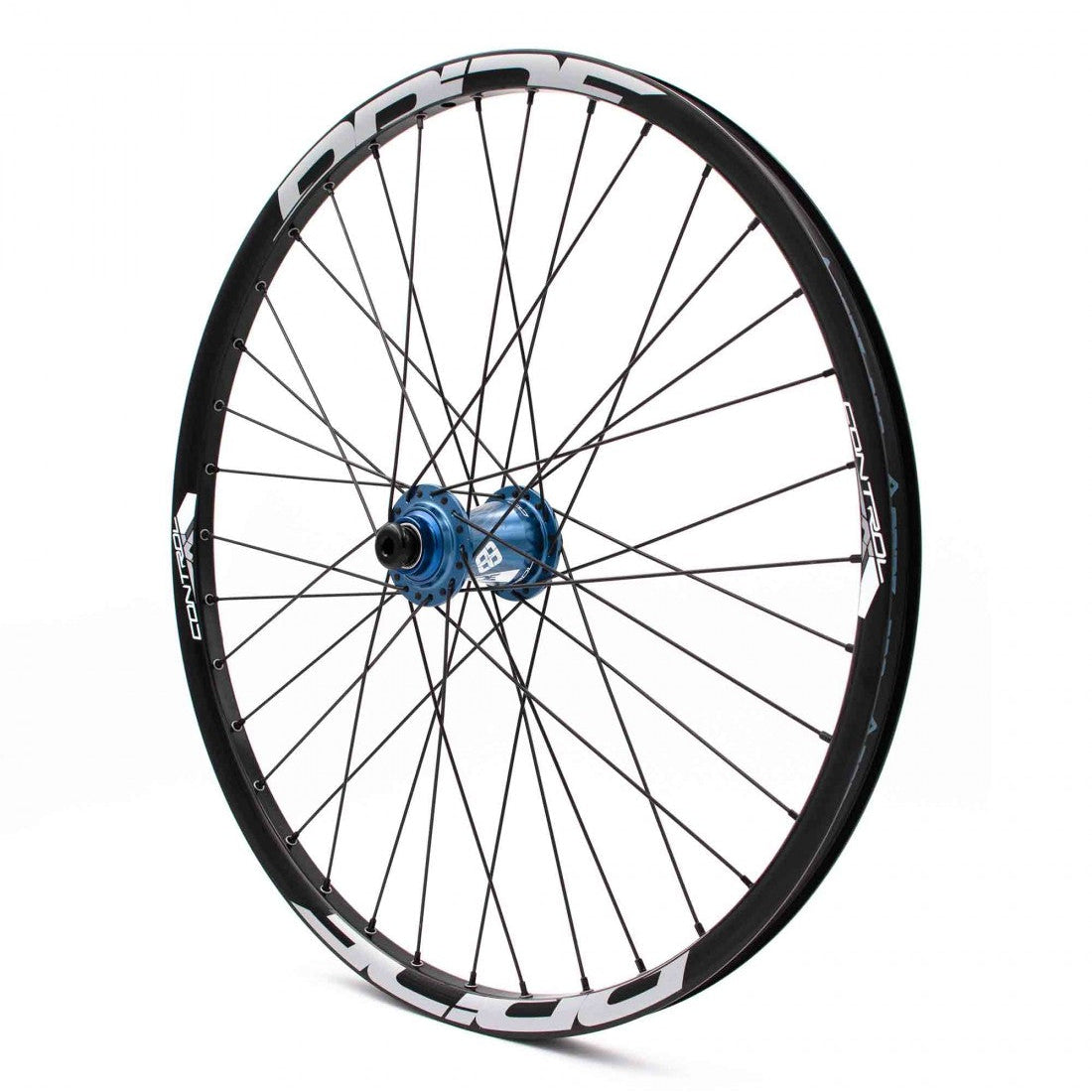

PRIDE 24" (507mm) Control V1 V-Brake/Disc Wheel Set 20/10mm Axles Blue

The PRIDE Control V1 24" (507mm) Wheel Set is developed for BMX Race Cruiser riders looking for a reliable, high-performance set that meets the... Read more
524,90 €
524,90 €
View full details

Description

The PRIDE Control V1 24" (507mm) Wheel Set is developed for BMX Race Cruiser riders looking for a reliable, high-performance set that meets the demands of competition. The combination of Control Cruiser 6061-T6 aluminium rims and Control hubs offers an excellent balance between weight, efficiency and strength.

The rims feature a double-wall construction with a 19 mm profile height and a 36-spoke build, ensuring good rigidity during acceleration and landing phases. Their V-Brake and disc brake compatibility offers great versatility depending on the BMX configuration used.

The PRIDE Control V1 6061-T6 aluminium hubs integrate a high-performance engagement system made up of 6 micro-toothed pawls delivering 180 engagement points. This technology ensures fast re-engagement out of corners and from standing starts. The pair is offered with a distinctive blue finish and ready-to-ride BMX Race assembly.

Ref: 15986273485180

Technical information

Technical specifications – Rims
Model: PRIDE Control Cruiser
Diameter: 24" (507 mm)
ETRTO standard:
Front: 23-507
Rear: 24-507
Material: 6061-T6 Aluminium
Construction: Double wall
Number of spokes: 36 spokes
Rim height: 19 mm
Rim width:
Front: 27 mm
Rear: 28 mm
Brake compatibility: V-Brake and disc brake
Valve type: Schrader
Tyre compatibility: 28 to 65 mm

Technical specifications – Hubs

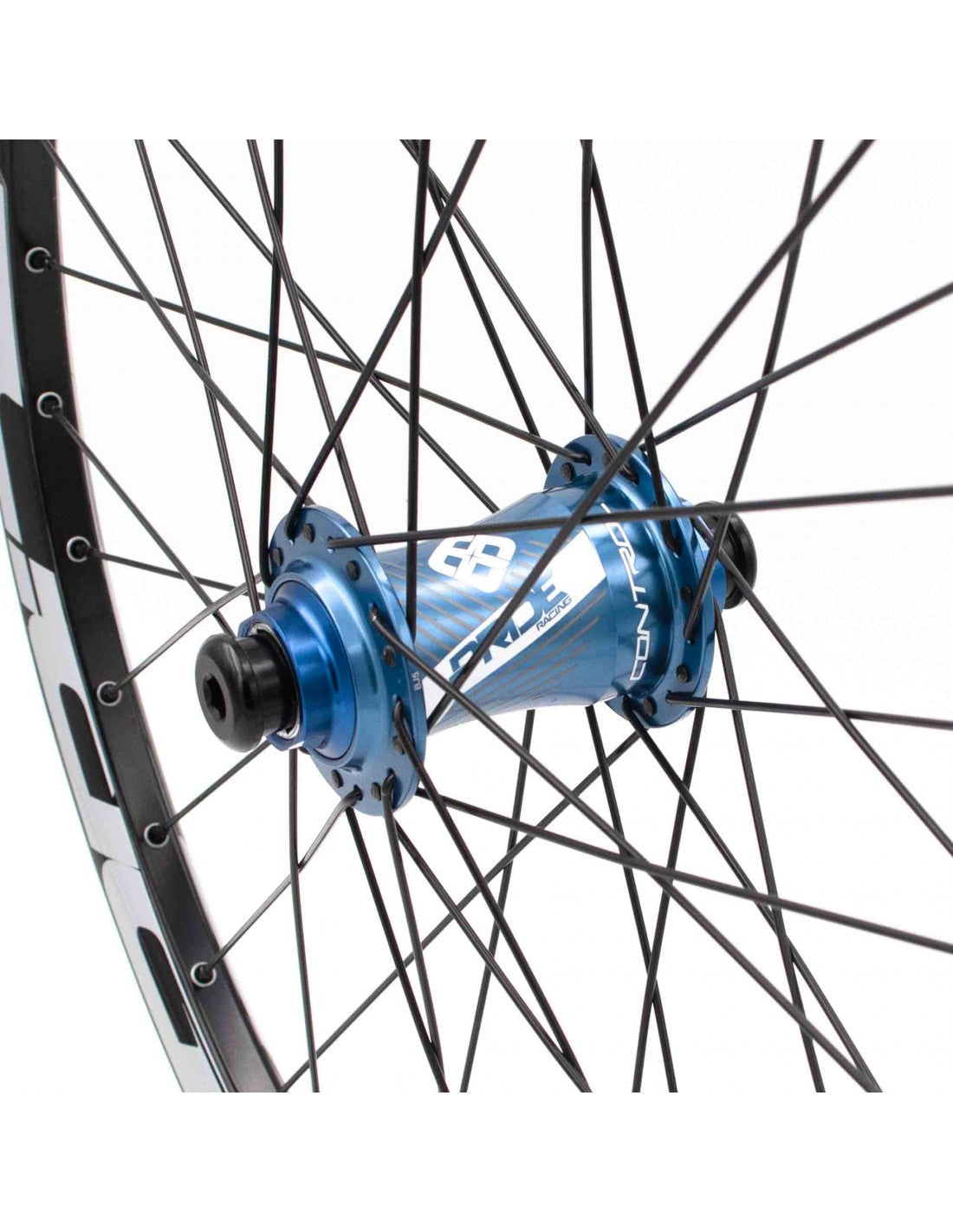

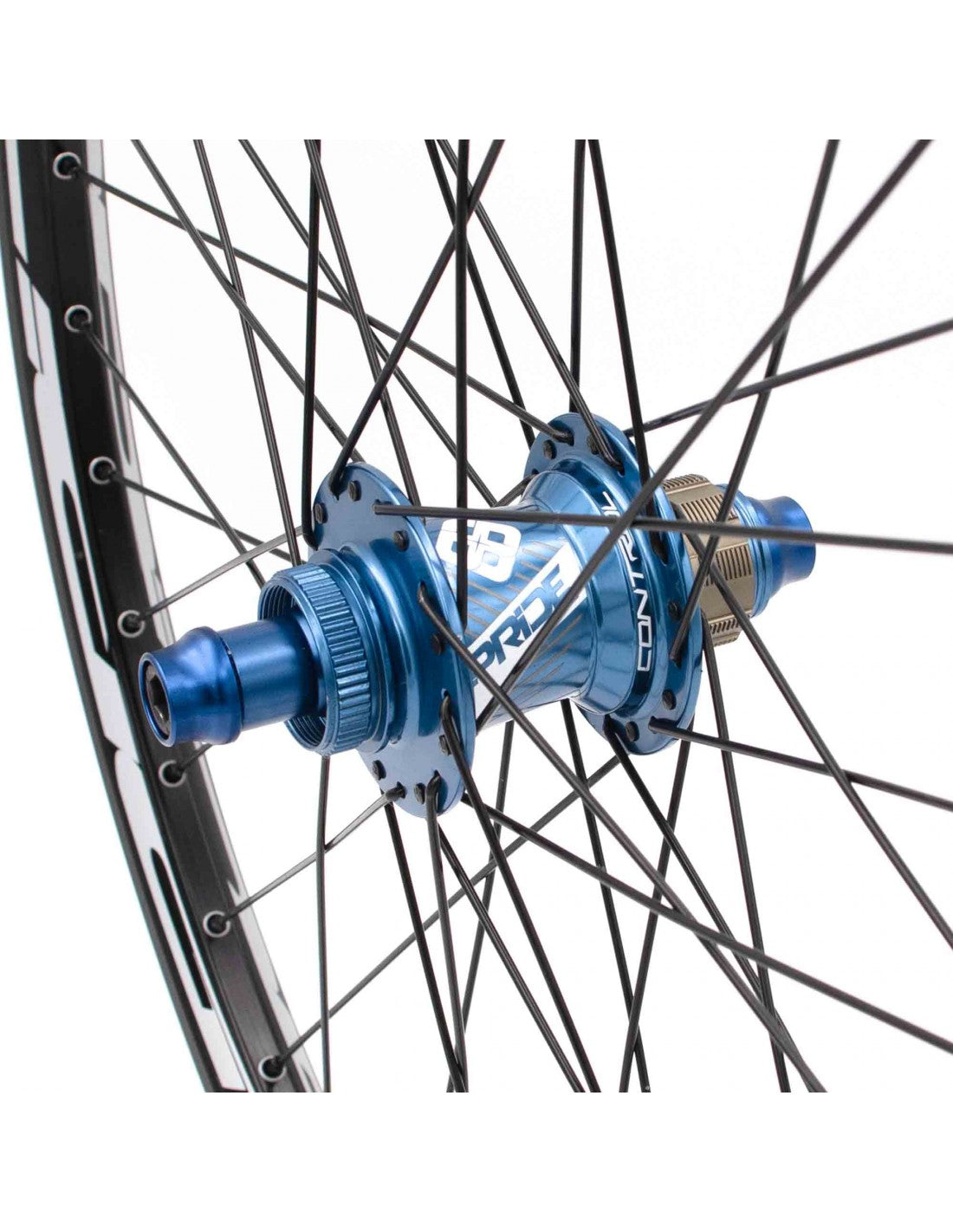

Model: PRIDE Control V1
Material: 6061-T6 Aluminium
Front hub spacing: 20 x 100 mm
Rear hub spacing: 10 x 110 mm
20 mm front axle not included
Freehub body standard: Shimano
Engagement system: 180 points / 6 pawls
Disc mount: Center Lock
Front bearing: 6805
Rear bearing: 6902

Weight
Front wheel: 904 g
Rear wheel: 1085 g
Total pair weight: 1989 g

Additional information
Type: Front + rear wheel pair
Use: BMX Race Cruiser
Diameter: 507 mm
Material: Aluminium
Hub colour: Blue
The rear wheel comes with a lock ring and spacers to adjust the chainline
Rim tape not included
;
