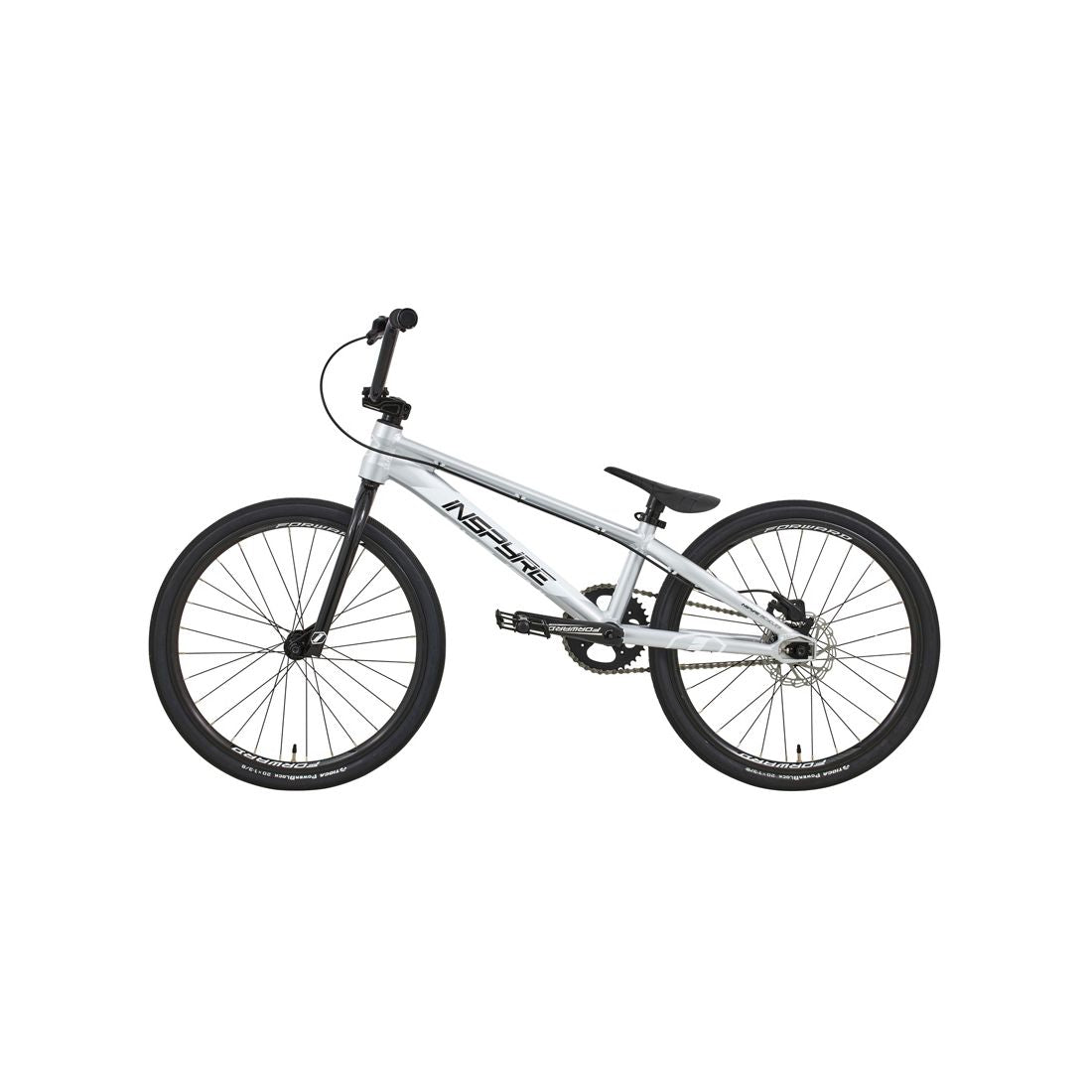

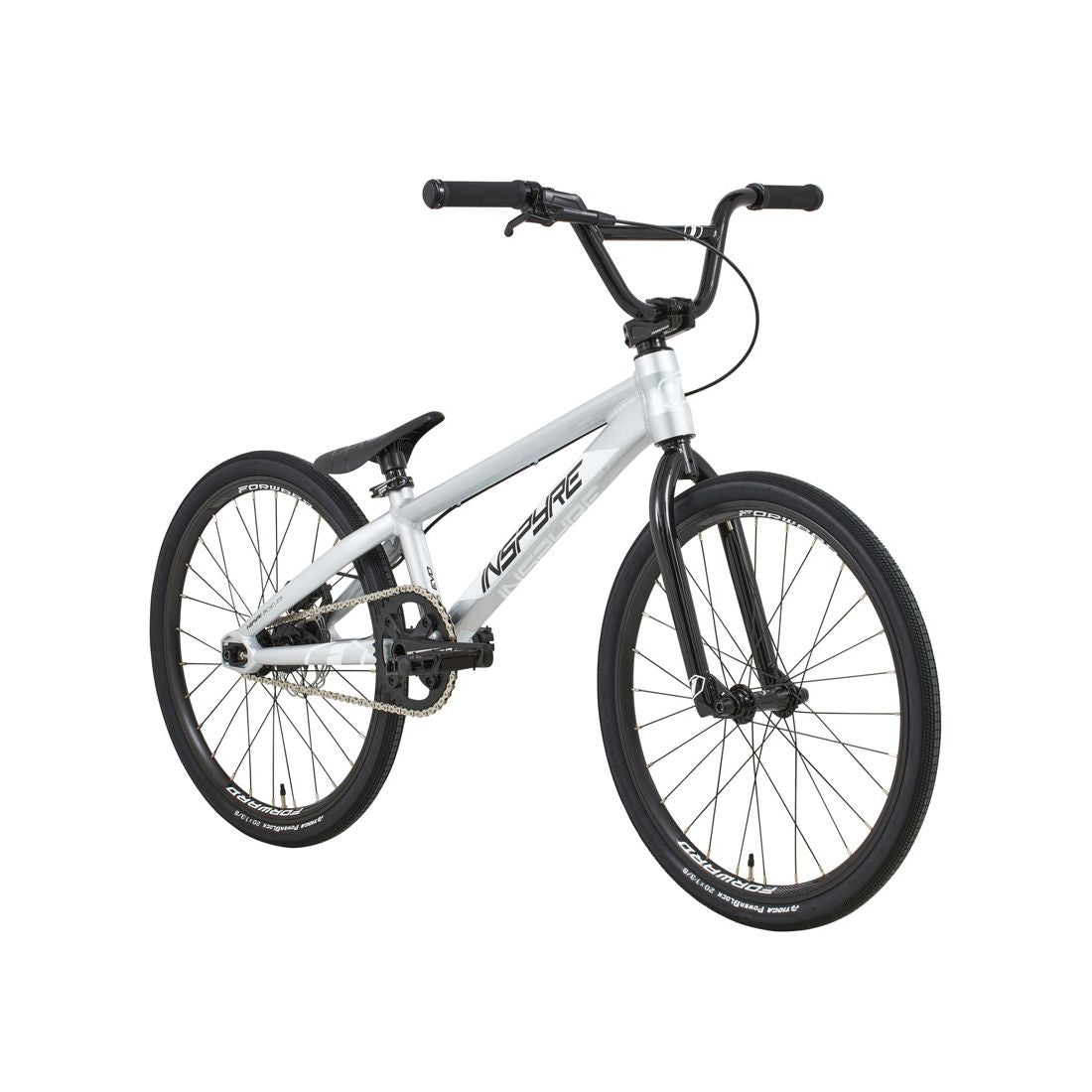

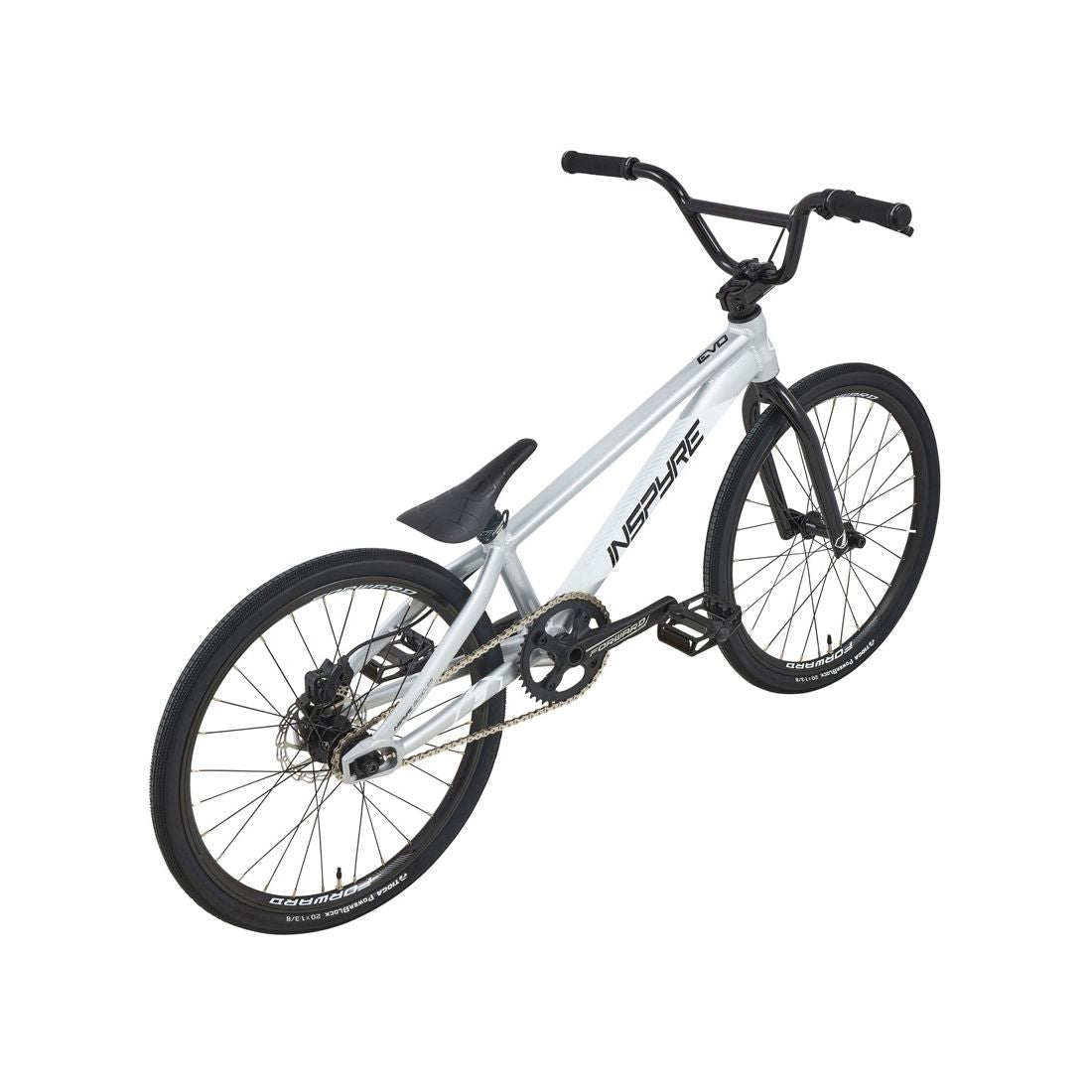

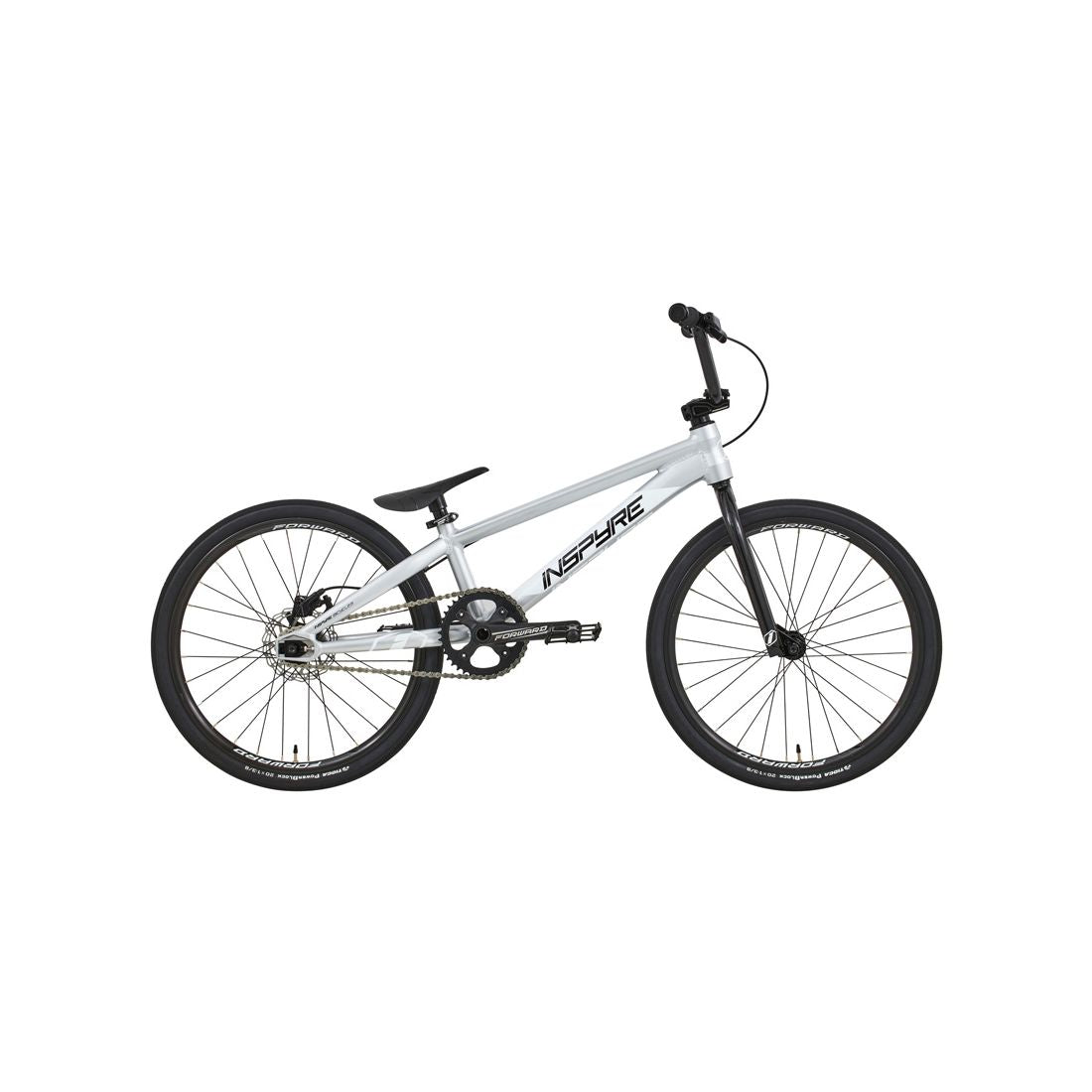

INSPYRE Evo Disk Expert BMX Grey 2026

Manufacturer ref.: VEIN2623
The INSPYRE Evo Disk Expert BMX was developed to support intermediate riders looking to progress and improve their efficiency on BMX Race tracks. Its... Read more
808,40 €
808,40 €
View full details

Description

The INSPYRE Evo Disk Expert BMX was developed to support intermediate riders looking to progress and improve their efficiency on BMX Race tracks. Its 6061-T6 aluminium frame with hydroformed and triple butted tubes offers an excellent balance between lightness, rigidity and responsiveness. Its geometry ensures stable handling while promoting rapid acceleration.

The frame integrates 3D Forged Swell rear dropouts with integrated chain tensioners, providing greater rigidity and optimal chain tension. Compatible with a disc brake, it is equipped with an Alhonga hydraulic system with a short lever for precise and high-performance braking in all conditions.

The drivetrain is based on a Forward Joyride 6061-T6 aluminium crankset paired with a KMC Z-1 Narrow chain. The Tioga PowerBlock tyres offer excellent efficiency and good grip, while the Inspyre hubs with 100% sealed bearings and 120 points of engagement guarantee fast and reliable power transfer.

Fitted with carefully selected aftermarket components, a 100% Chromoly fork and double-wall aluminium rim wheels, the INSPYRE Evo Disk Expert BMX is designed to deliver dynamism, precision and reliability in competition and training alike. A model ready to support riders in their progression on BMX Race tracks.

Ref: 15995238580604

Technical information

Frame: Inspyre Evo Disk Expert
Bike size: Expert
Recommended rider height: 1.40 m to 1.55 m
Premium 6061-T6 Aluminium
Hydroformed tubes
Triple Butted construction
Top tube: 19.5"
3D Forged Swell rear dropouts
Integrated chain tensioners

Fork & Headset
Inspyre Evo fork
100% Chromoly
1-1/8" steerer
ZS44 / ZS44 semi-integrated headset
Annular bearings

Cockpit
Inspyre Evo aluminium handlebar 22.2 mm
Dimensions: 5.5" x 26"
Back Sweep: 7°
Up Sweep: 2°
Forward Top Load aluminium 6061-T6 stem
Length: 40 mm
Forward Lock-On Kraton 130 mm grips

Drivetrain
Forward Joyride AM 2-piece crankset
Length: 160 mm
39-tooth aluminium chainring
16-tooth CrMo sprocket
KMC Z-1 Narrow chain
BSA external bottom bracket

Braking
Alhonga hydraulic disc brake
Alhonga short lever
Forward Joyride AM rotor
ISO 6-bolt mount
Diameter: 140 mm

Wheels
Forward Joyride double-wall aluminium 28-hole rims
Inspyre aluminium front hub
Inspyre aluminium rear cassette hub
120 points of engagement
3-pawl system
100% sealed bearings
14G stainless steel spokes
14G brass spoke nipples

Tyres
Front: Tioga PowerBlock 20 x 1-3/8"
Rear: Tioga PowerBlock 20 x 1-3/8"

Equipment
Combo saddle with Ø27.2 mm nylon seatpost
Forward AM 31.8 mm seatpost clamp
9/16" aluminium pedals
