• DT SWISS A 1800 SPLINE 30 DISC Front Wheel
1 3
DT SWISS

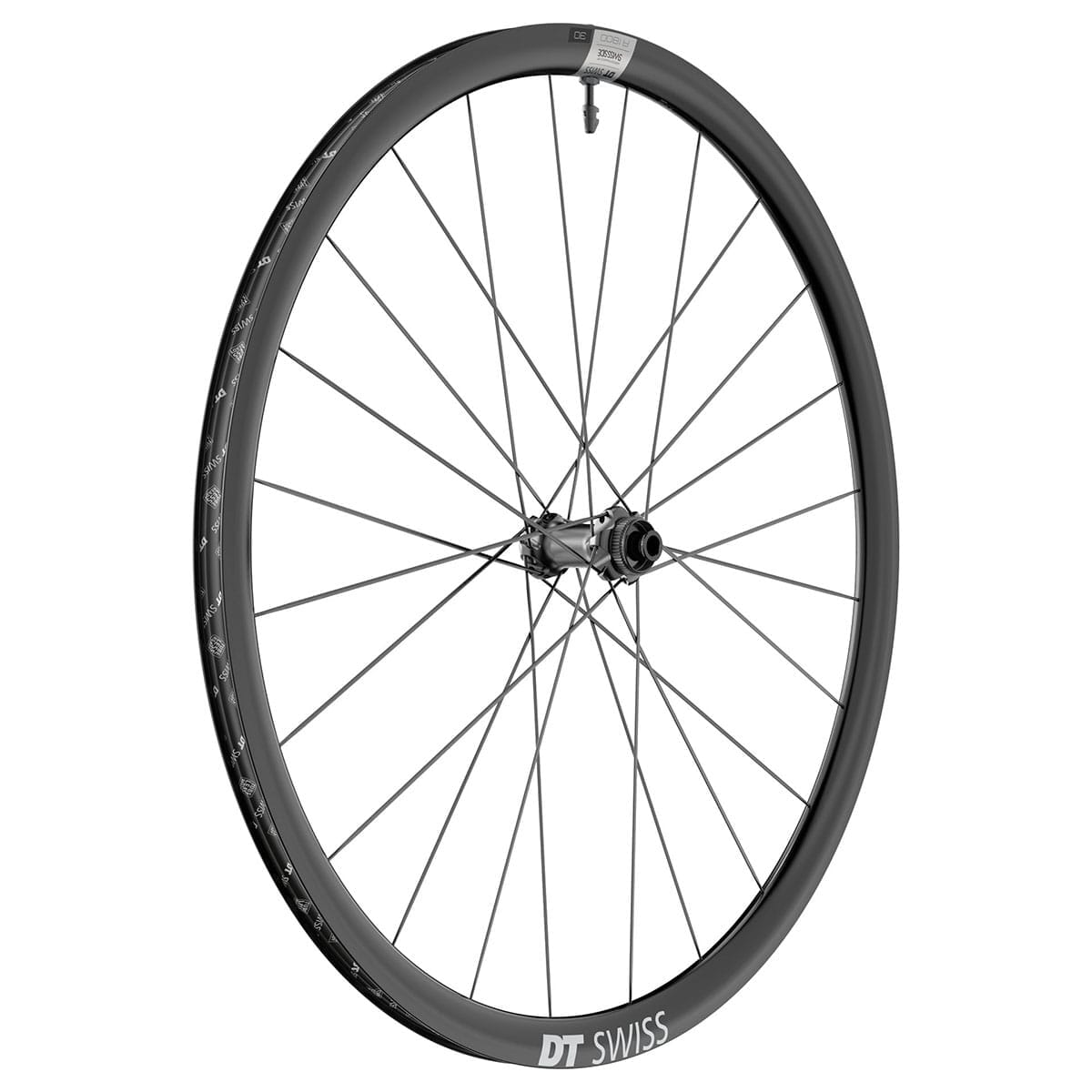

DT SWISS A 1800 SPLINE 30 DISC Tubeless Ready Front Wheel (Centerlock)

Réf. fabricant : W0A1800AIDXSA20789
Designed to make aerodynamic performance accessible to the widest possible audience, the DT SWISS A 1800 SPLINE 30 front wheel combines speed, stability and... Read more
161,60 €
161,60 €
View full details

Description

Designed to make aerodynamic performance accessible to the widest possible audience, the DT SWISS A 1800 SPLINE 30 front wheel combines speed, stability and reliability. Built around an aerodynamically optimised aluminium rim, it features a 30 mm profile designed to reduce drag while maintaining predictable handling in all riding conditions. The hidden nipples also contribute to airflow optimisation and provide a particularly refined finish.

The wheel is fitted with DT Aero Comp Wide Straightpull spokes, whose specific shape further improves aerodynamic efficiency. This design also promotes excellent lateral stiffness, delivering precision and confidence during direction changes or accelerations. The internal width of 20 mm ensures perfect compatibility with modern road tyres, while optimising their profile and performance.

Compatible with Tubeless Ready, this front wheel offers an excellent compromise between performance, robustness and ease of use. Its architecture, derived from the AERO+ concept developed by DT Swiss, improves aerodynamic efficiency without compromising manoeuvrability. An ideal solution for cyclists looking for a fast, reliable and accessible wheel for training as well as sportive rides.

Manufacturer Manual + Rim/Tyre Compatibility & Pressure Chart

SPLINE Models Manual

Tubeless Mounting Manual

Ref: 7967884214438

Informations techniques

┘GENERAL
Category: Road
Manufacturer Weight: 835 g
Max Load: 110 kg
ASTM Classification: 1
E-Bikes Recommended: No
Manufacturer Reference: W0A1800AIDXSA20789

┘RIM
Material: Aluminium
Tyre Interface: Hooked/Crochet tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 30mm
Internal Width: 20mm
External Width: 24mm

┘HUBS
Axle System: 12mm Thru axle
Spacing: 100mm
Disc Mounting: Center Lock
Hub Type: 370

┘SPOKES AND NIPPLES
Left Spokes: DT aero comp® t-head
Right Spokes: DT aero comp® t-head
Lacing Type: Two-cross (1:1)
Nipples: DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: The DT Swiss Aero range maximises aerodynamics with profiled rims and innovative spokes, delivering high performance and exceptional stability, ideal for achieving optimal speeds;
► SPLINE: The DT Swiss SPLINE concept combines robust hubs, optimised straight-pull spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► AERO+: DT Swiss Aero+ technology optimises aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedalling efficiency and crosswind control;
► ARTISANAL CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim Tape: 23mm tubeless roll
Valve: Black alu TL valve 26-35 mm / Valve protection sticker

┘CONVERSION REFERENCES
► Adapters for QR: HWGXXX00S3801S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX00S3803S;
► Adapters for TA15 (15x100mm): HWGXXX0004785S;
;

Informations prix

*Supplier recommended retail price in February 2024
