E.THIRTEEN

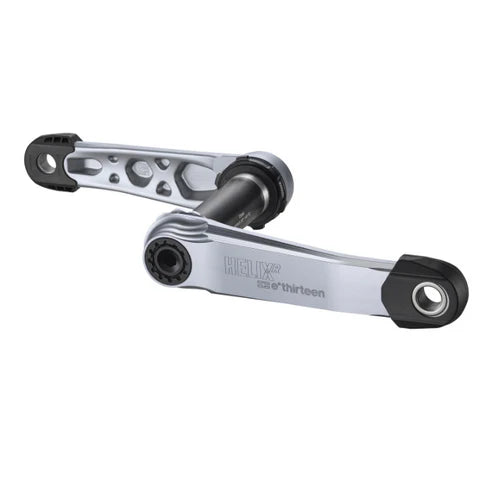

E.THIRTEEN HELIX RACE ALLOY Silver Cranks

Réf. fabricant : CS4HAA
The E.THIRTEEN HELIX RACE ALLOY Silver cranks are the ultimate expression of aluminium performance. Designed to combine lightness, stiffness and style, they are aimed... Read more
262,40 €
262,40 €
View full details

Description

The E.THIRTEEN HELIX RACE ALLOY Silver cranks are the ultimate expression of aluminium performance. Designed to combine lightness, stiffness and style, they are aimed at demanding riders, whether they favour fast XC or committed enduro. Made from forged AL6066-T6 aluminium, they combine robustness and material optimisation thanks to extensive CNC machining across almost their entire surface.

Their forged AL7050-T7 30 mm axle enhances stiffness while reducing overall weight. The P3 fixing system with self-extracting bolt ensures simple and long-lasting maintenance, while the APS preload adjuster allows precise tension adjustment. Boost and SuperBoost compatibility is provided via the reversible Helix chainrings, available in colours to match the range.

Thanks to the creak-free Quick Connect interface, and Shimano™ and SRAM™ 11/12-speed compatible chainrings, the Helix Race Alloy cranks offer seamless integration and a premium aesthetic, with crank guards included.

Ref: 15421628809596

Informations techniques

Chain line: Compatible with reversible Helix chainrings to achieve a Boost chain line of 52 mm or Super Boost of 55 mm;
Not compatible with UL or SL chainrings;
Compatible chainring: Helix R Direct Mount, Helix Plus DM, Helix Steel DM chainring (sold separately);
Compatibility: All frames with 68/73mm bottom bracket shell;
Compatible: SRAM and Shimano 12-speed Narrow Wide
Included: cranks, APS adjuster, bottom bracket/lockring tool, Crank Boots (x2), user manual
Material: Forged aluminium, CNC machined AL-6066-T6 with
30mm AL 7050-T7 axle;
P3 Connect interface and 30mm axle;
Weight (manufacturer):
160mm: 547 g.
165mm: 556 g.
170mm: 566 g.
175mm: 574 g.
;

Informations prix

*Supplier recommended retail price in June 2025
