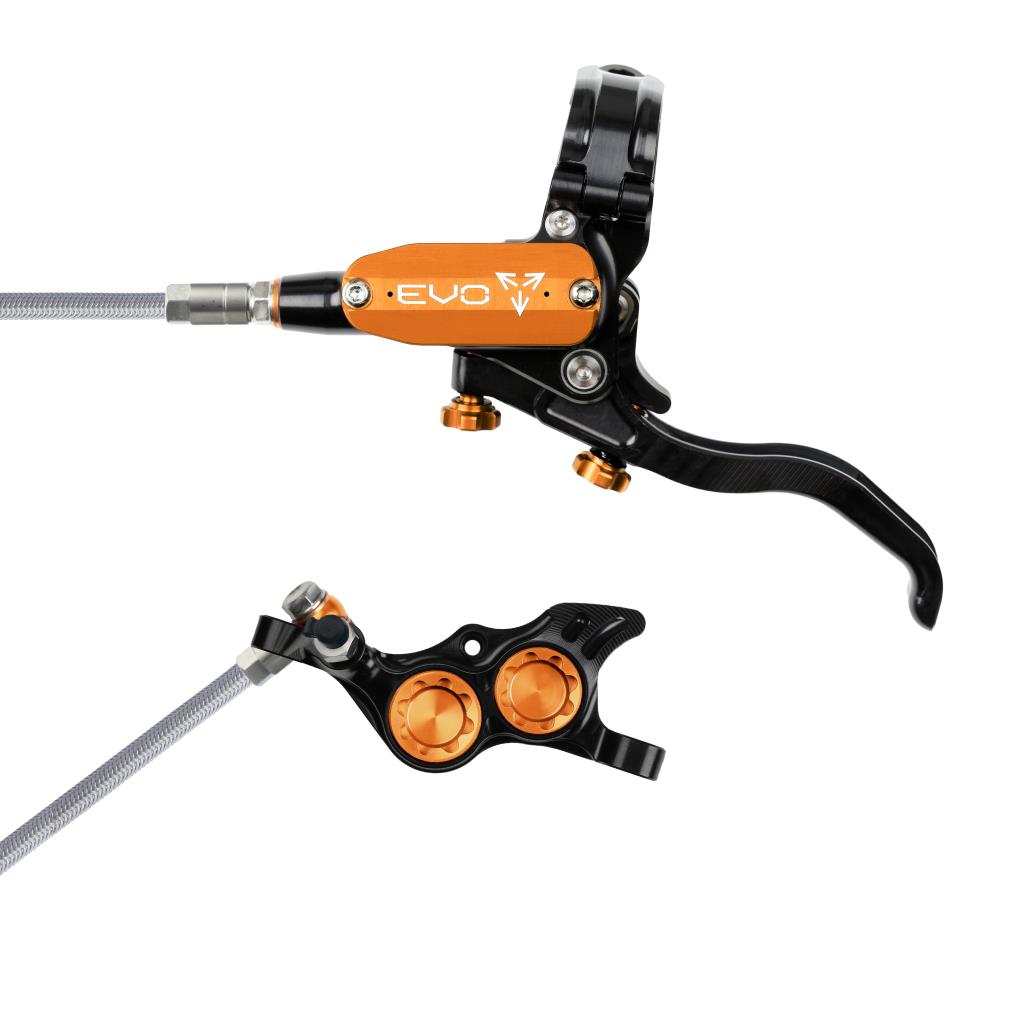

HOPE TECH 4 EVO TR4 Aviation Front Brake Black/Orange
Couldn't load pickup availability
Description
The HOPE TECH 4 EVO TR4 brake with aviation hose represents the ultimate evolution of the acclaimed Tech 4 master cylinder. Entirely machined from a 2014 T6 aluminium billet, it stands out for its high-precision design delivering an exceptional feel and perfectly controlled braking power. This top-of-the-range model is aimed at demanding riders in search of performance, reliability and customisation for all-mountain or Trail riding.
The TECH 4 EVO master cylinder benefits from major improvements: new piston, floating head, optimised cam, second guide ring and three new levers (optional) for precise, smooth control. The lever pivot runs on two annular bearings, ensuring consistent and durable response. The adjustment dials allow easy setting of the lever's bite point and reach according to the rider's preferences.
The TR4 calliper, also machined from a 2014 T6 aluminium billet, adopts the Post-Mount standard (74.2 mm bolt spacing). It incorporates four stainless steel and phenolic resin pistons — two of 16 mm and two of 17 mm — guaranteeing optimal power distribution and excellent heat resistance. The larger pistons increase the braking ratio by approximately 6.5% compared to the Tech 4 E4 braking system.
The brake comes with two types of pads: Racing (green) for competition and All Conditions (red) for maximum versatility. With its 14 colour combinations, its Matchmakers options and its exclusive compatibility with DOT 4.0 or 5.0, the HOPE TECH 4 EVO TR4 embodies the pinnacle of high-end braking.
Ref: 15478136144252
