1 4
HOPE

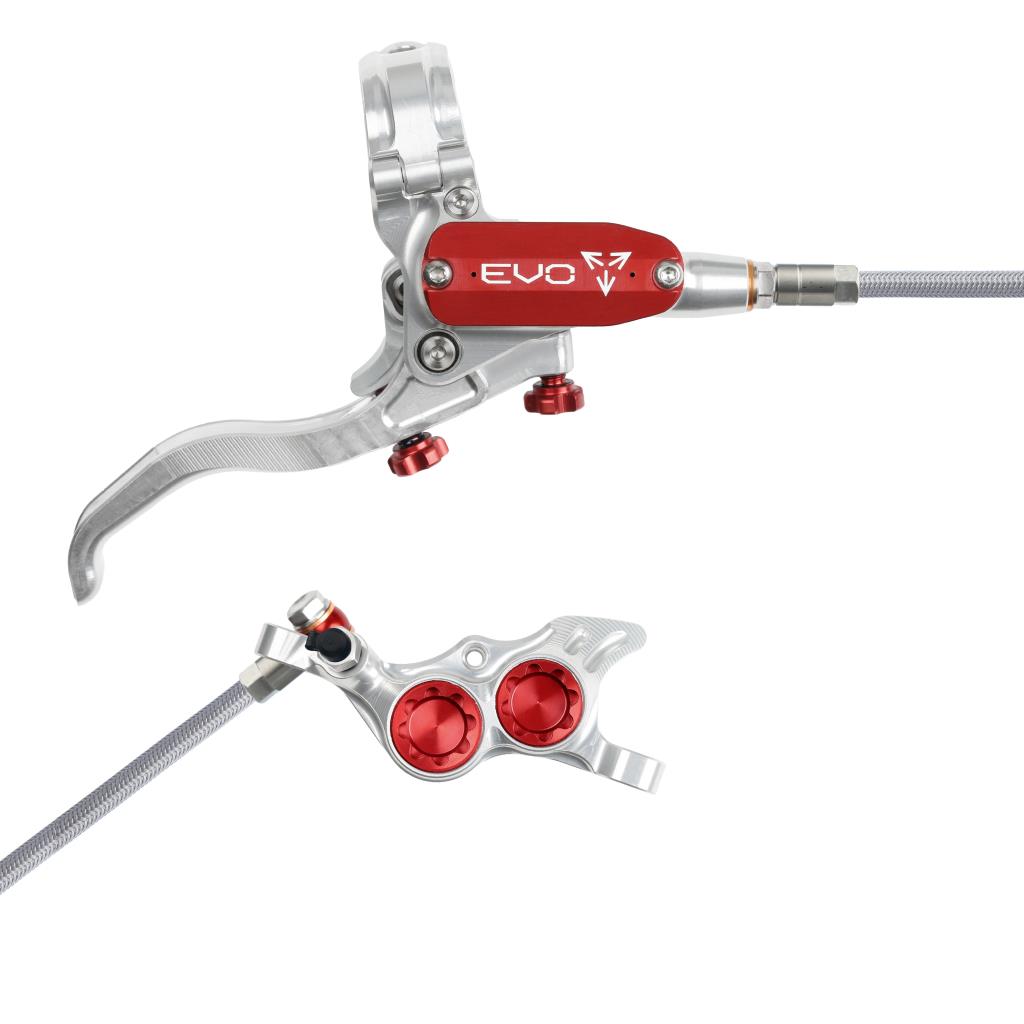

Rear Brake HOPE TECH 4 EVO TR4 Aviation Silver/Red

Réf. fabricant : T4ET4SRBR
The HOPE TECH 4 EVO TR4 brake with aviation hose represents the ultimate evolution of the renowned Tech 4 master cylinder. Entirely machined from... Read more
309,65 €
309,65 €
View full details

Description

The HOPE TECH 4 EVO TR4 brake with aviation hose represents the ultimate evolution of the renowned Tech 4 master cylinder. Entirely machined from a block of 2014 T6 aluminium, it stands out for its high-precision design delivering an exceptional feel and perfectly controlled braking power. This high-end model is aimed at demanding riders seeking performance, reliability and customisation for all-mountain or Trail riding.

The TECH 4 EVO master cylinder benefits from major improvements: new piston, floating head, optimised cam, second guide ring and three new levers (optional) for precise and smooth control. The lever pivot rests on two annular bearings, ensuring a consistent and durable response. The adjustment dials allow easy tuning of the bite point and reach of the lever according to the rider's preferences.

The TR4 calliper, also machined from a block of 2014 T6 aluminium, adopts the Post-Mount standard (74.2 mm bolt spacing). It features four stainless steel and phenolic resin pistons — two of 16 mm and two of 17 mm — guaranteeing optimal power distribution and excellent heat resistance. The larger pistons increase the braking ratio by approximately 6.5% compared to the Tech 4 E4 braking system.

The brake comes with two types of pads: Racing (green) for competition and All Conditions (red) for maximum versatility. With its 14 colour combinations, Matchmakers options and exclusive compatibility with DOT 4.0 or 5.0, the HOPE TECH 4 EVO TR4 embodies the perfection of high-end braking.

Technical manual.

Ref: 15478134931836

Informations techniques

TECH 4 EVO Master Cylinder:
Machined from a 2014 T6 aluminium block.
New piston and floating piston head.
New cam and 2nd guide ring.
3 new levers for more precise and customisable control (standard original and Control or Power as options).
Lever pivot mounted on 2 annular bearings for improved smoothness.
Independent adjustments: lever bite point and reach adjustment dial.
Improved braking feel, controlled power and exceptional consistency.

TR4 Calliper:
Standard Post-Mount – 74.2 mm bolt pattern.
Machined from a 2014 T6 aluminium block.
4 pistons in total:
2 x 16 mm pistons (stainless steel + phenolic resin).
2 x 17 mm pistons (stainless steel + phenolic resin).
Excellent heat dissipation and progressive power.

Hydraulic hose:
Diameter: 5 mm.
Length: 2 m.

Pads included:
Racing (green): for maximum performance.
All Conditions (red): for versatile use.

Compatibility & Options:
14 colour combinations available.
Compatible Matchmakers:
HBSP426
HBSP441
HBSP431
Sram, Sram T-Type, Shimano I-Spec II & EV.

Note:
Works only with DOT 4.0 or DOT 5.0 fluid.

Weight (manufacturer): 325g with hardware.
;

Informations prix

*Supplier recommended retail price in September 2025
