HOPE

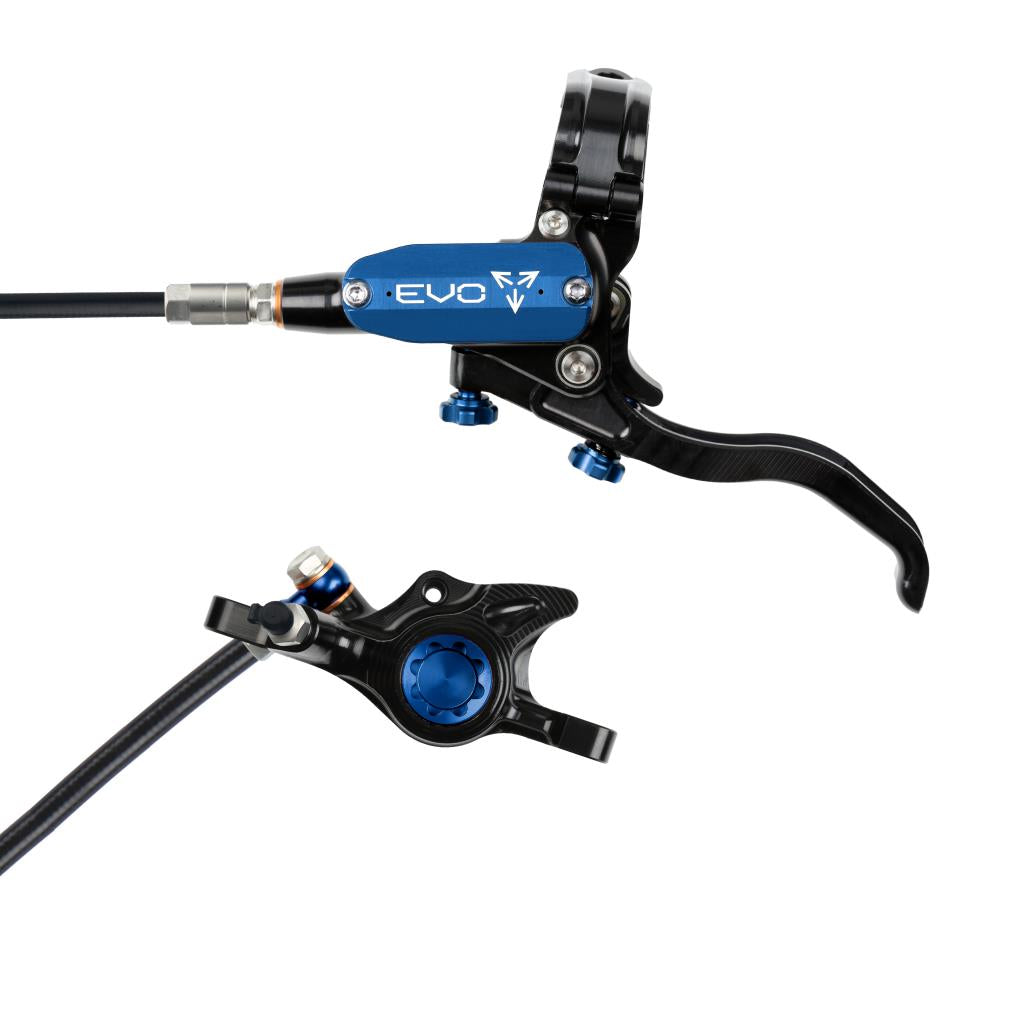

HOPE TECH 4 EVO X2 PM Front Brake Black/Blue

Réf. fabricant : T4EX2NBL
The HOPE TECH 4 EVO X2 PM brake is the ultimate evolution of the acclaimed Tech 4 master cylinder, designed to deliver a perfect... Read more
Regular price 272,90 €
Regular price Sale price 272,90 €
View full details

Description

The HOPE TECH 4 EVO X2 PM brake is the ultimate evolution of the acclaimed Tech 4 master cylinder, designed to deliver a perfect feel and total control over braking power. Machined from a block of 2014 T6 aluminium, the TECH 4 EVO master cylinder incorporates a new piston, an optimised floating head, a revised cam, a second guide ring and three new levers, guaranteeing precise and personalised control for every rider. The lever pivot rests on two annular bearings, providing a smooth and durable action, while the adjustment dials allow bite point and reach to be set according to individual preference.

The X2 calliper, in Post-Mount standard (74.2 mm bolt spacing), is machined as a one-piece unit for increased rigidity and reduced weight. Its two 22 mm phenolic resin pistons (reference HBSP235) deliver power suited to light applications such as downcountry and XC, while maintaining excellent performance at high temperatures. This configuration allows for precise modulation and control, ideal for long rides and varied terrain.

The standard 5 mm diameter, 2 m long hose ensures simple and reliable installation. The brake comes with two types of pads: Racing (green) for maximum performance and All Conditions (red) for versatile use, making it easy to adapt to every riding style and terrain condition.

With 14 colour combinations available and several compatible matchmakers, the HOPE TECH 4 EVO X2 PM combines lightness, power and reliability. This brake is the ideal choice for riders seeking performance, control and comfort, whether in XC, downcountry or demanding all-terrain riding.

Technical manual.

Ref: 15478136373628

Informations techniques

TECH 4 EVO Master Cylinder:
Fully machined from a 2014 T6 aluminium block.
New piston and floating piston head.
New cam and 2nd guide ring.
3 new levers for more precise and customisable control (standard as original, with Control or Power available as options).
Lever pivot on 2 annular bearings → smooth and durable action.
Adjustment dials: reach and free stroke adjustment to suit your preferences.
Natural, modular and precise braking feel.

X2 Calliper:
Standard Post-Mount (74.2 mm bolt spacing).
Monoblock machined for increased rigidity and reduced weight.
2 x 22 mm phenolic resin pistons (reference HBSP235) for stable performance at high temperature.
Light and modular brake, ideal for downcountry and XC.
Excellent control and progressive power.

Hose:
Diameter: 5 mm.
Length: 2 m.
Simple and reliable installation.

Pads included:
Racing (green): maximum performance.
All Conditions (red): versatile use.

Compatibility & Matchmakers:
14 colour combinations available.
Compatible Matchmakers:
HBSP426
HBSP441
HBSP431
Sram, Sram T-Type, Shimano I-Spec II & EV.
Aviation hose available as an option.

Important note:
Compatible with DOT 4.0 or DOT 5.1 fluid only.

Weight (manufacturer): 297g including hardware.

Informations prix

*Supplier recommended retail price in September 2025
