HOPE

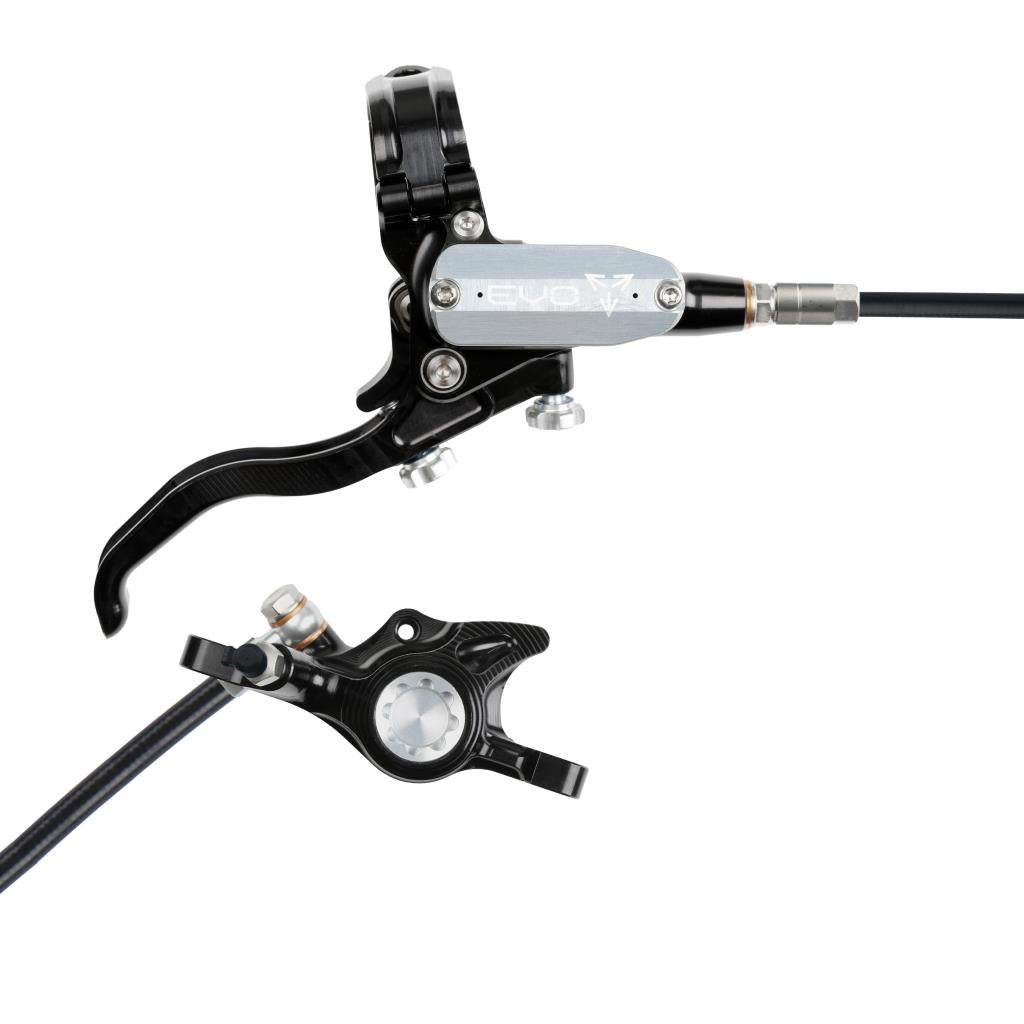

HOPE TECH 4 EVO X2 PM Rear Brake Black/Silver

Réf. fabricant : T4EX2NSR
The HOPE TECH 4 EVO X2 PM brake is the ultimate evolution of the renowned Tech 4 master cylinder, designed to deliver a perfect... Read more
Regular price 272,90 €
Regular price Sale price 272,90 €
View full details

Description

The HOPE TECH 4 EVO X2 PM brake is the ultimate evolution of the renowned Tech 4 master cylinder, designed to deliver a perfect feel and total control of braking power. Machined from a block of 2014 T6 aluminium, the TECH 4 EVO master cylinder integrates a new piston, an optimised floating head, a revised cam, a second guide ring and three new levers, ensuring precise and personalised control for every rider. The lever pivot rests on two annular bearings, providing a smooth and durable action, while the adjustment dials allow the bite point and reach to be adjusted to individual preferences.

The X2 calliper, in Post-Mount standard (74.2 mm spacing) is machined as a single piece for increased rigidity and reduced weight. Its two 22 mm phenolic resin pistons (reference HBSP235) deliver power suited to light applications such as downcountry and XC, while maintaining excellent performance at high temperatures. This configuration allows for precise modulation and control, ideal for long rides and varied terrain.

The standard hose, 5 mm in diameter and 2 m long, ensures simple and reliable installation. The brake comes with two types of pads: Racing (green) for maximum performance and All Conditions (red) for versatile use, making it easy to adapt to each riding style and terrain conditions.

With 14 colour combinations available and several compatible matchmakers, the HOPE TECH 4 EVO X2 PM combines lightness, power and reliability. This brake is the ideal choice for riders seeking performance, control and comfort, whether in XC, downcountry or demanding all-terrain riding.

Technical manual.

Ref: 15478133555580

Informations techniques

TECH 4 EVO Master Cylinder:
Fully machined from a 2014 T6 aluminium block.
New piston and floating piston head.
New cam and 2nd guide ring.
3 new levers for more precise and customisable control (standard as original, with Control or Power as options).
Lever pivot on 2 annular bearings → smooth and durable action.
Adjustment dials: reach and free stroke adjustment to suit your preferences.
Natural, modular and precise braking feel.

X2 Calliper:
Post-Mount standard (74.2 mm bolt spacing).
Monoblock machined for increased rigidity and reduced weight.
2 x 22 mm phenolic resin pistons (reference HBSP235) for stable performance at high temperatures.
Light and modular brake, ideal for downcountry and XC.
Excellent control and progressive power.

Hose:
Diameter: 5 mm.
Length: 2 m.
Simple and reliable installation.

Pads included:
Racing (green): maximum performance.
All Conditions (red): versatile use.

Compatibility & Matchmakers:
14 colour combinations available.
Compatible Matchmakers:
HBSP426
HBSP441
HBSP431
Sram, Sram T-Type, Shimano I-Spec II & EV.
Aviation hose available as an option.

Important note:
Works with DOT 4.0 or DOT 5.1 fluid only.

Weight (manufacturer): 297g with hardware.
