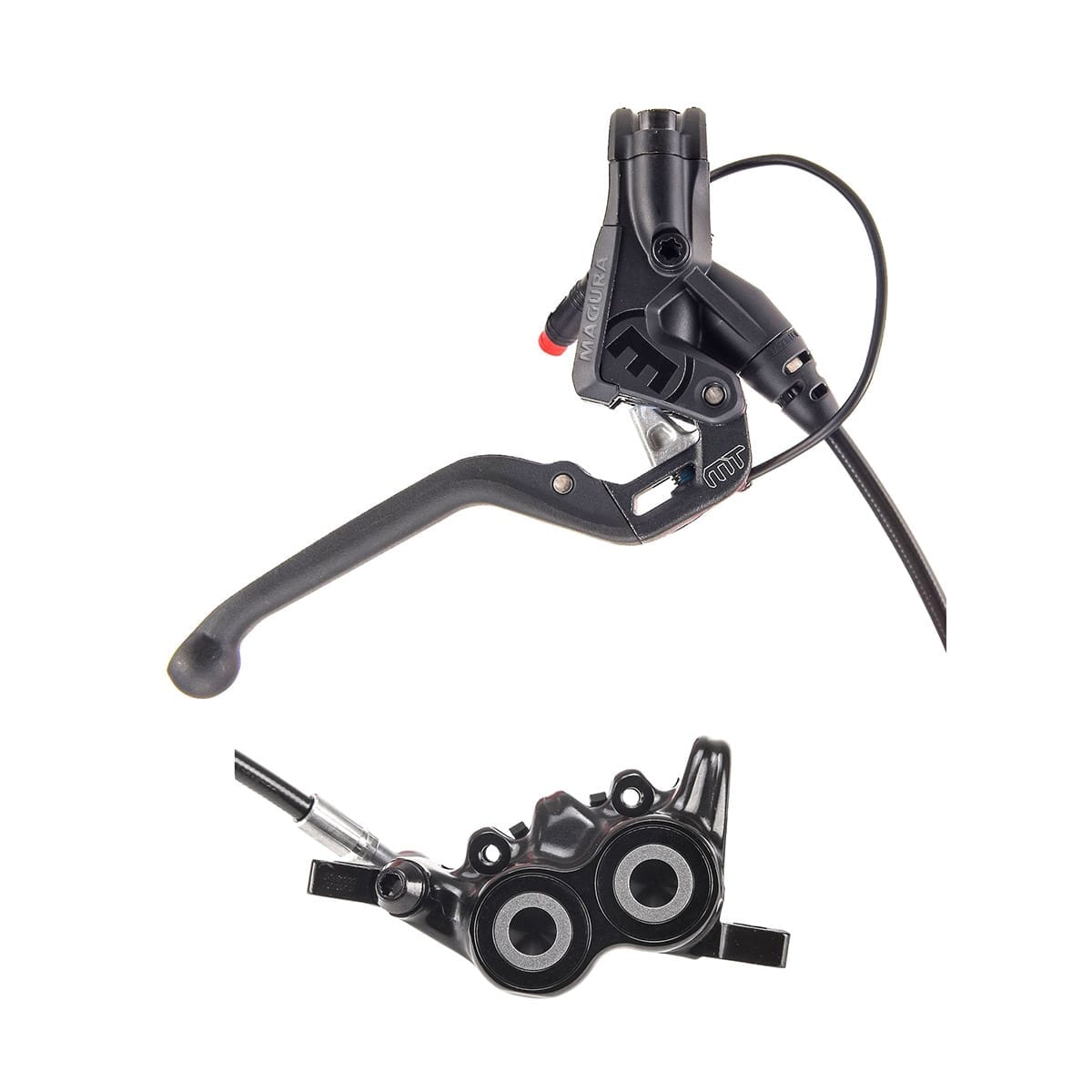

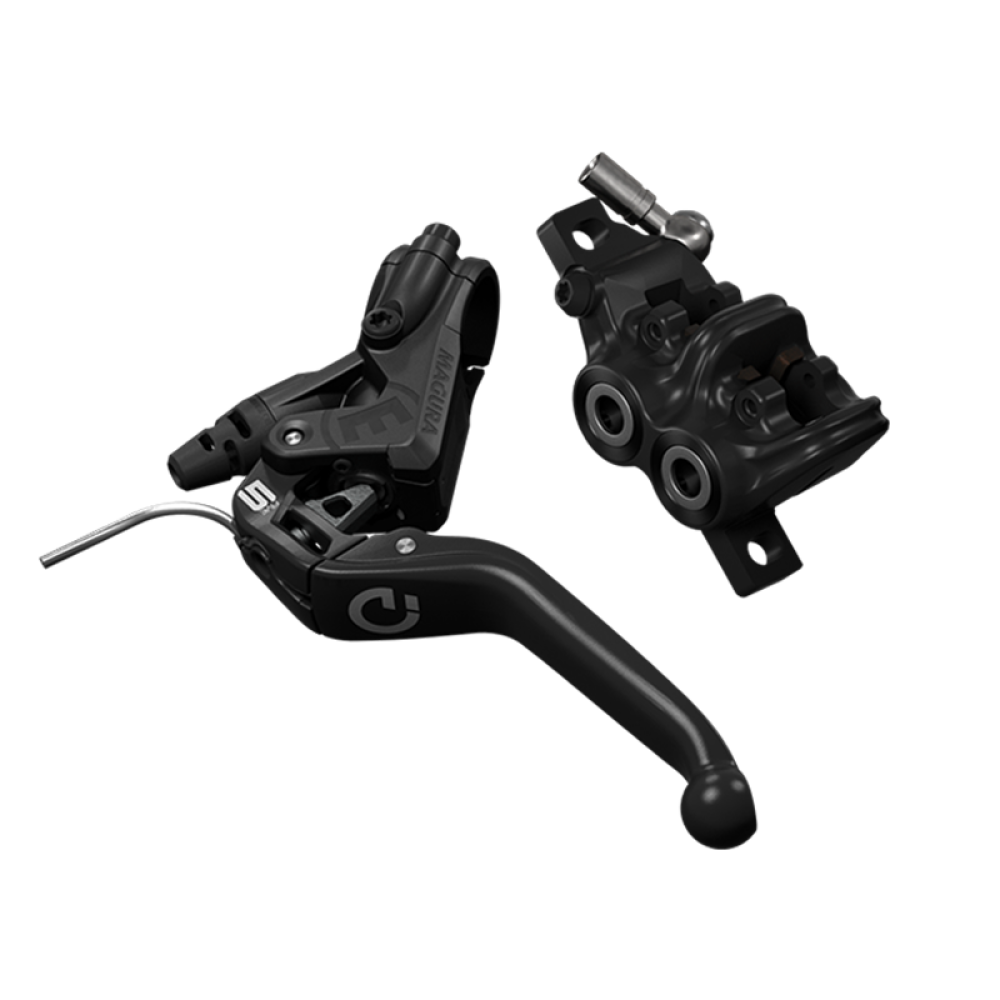

MAGURA MT5e HIGO OPENER NC Front or Rear Brake Black

The MAGURA MT5e HIGO OPENER NC Front or Rear Brake is designed to offer maximum safety for fast electric bikes, drawing on its experience... Read more
Regular price 123,80 €
Regular price Sale price 123,80 €
View full details

Description

The MAGURA MT5e HIGO OPENER NC Front or Rear Brake is designed to offer maximum safety for fast electric bikes, drawing on its experience from the motorcycle sector and its expertise in electric bikes. With its four pistons, it delivers powerful braking force and high endurance.

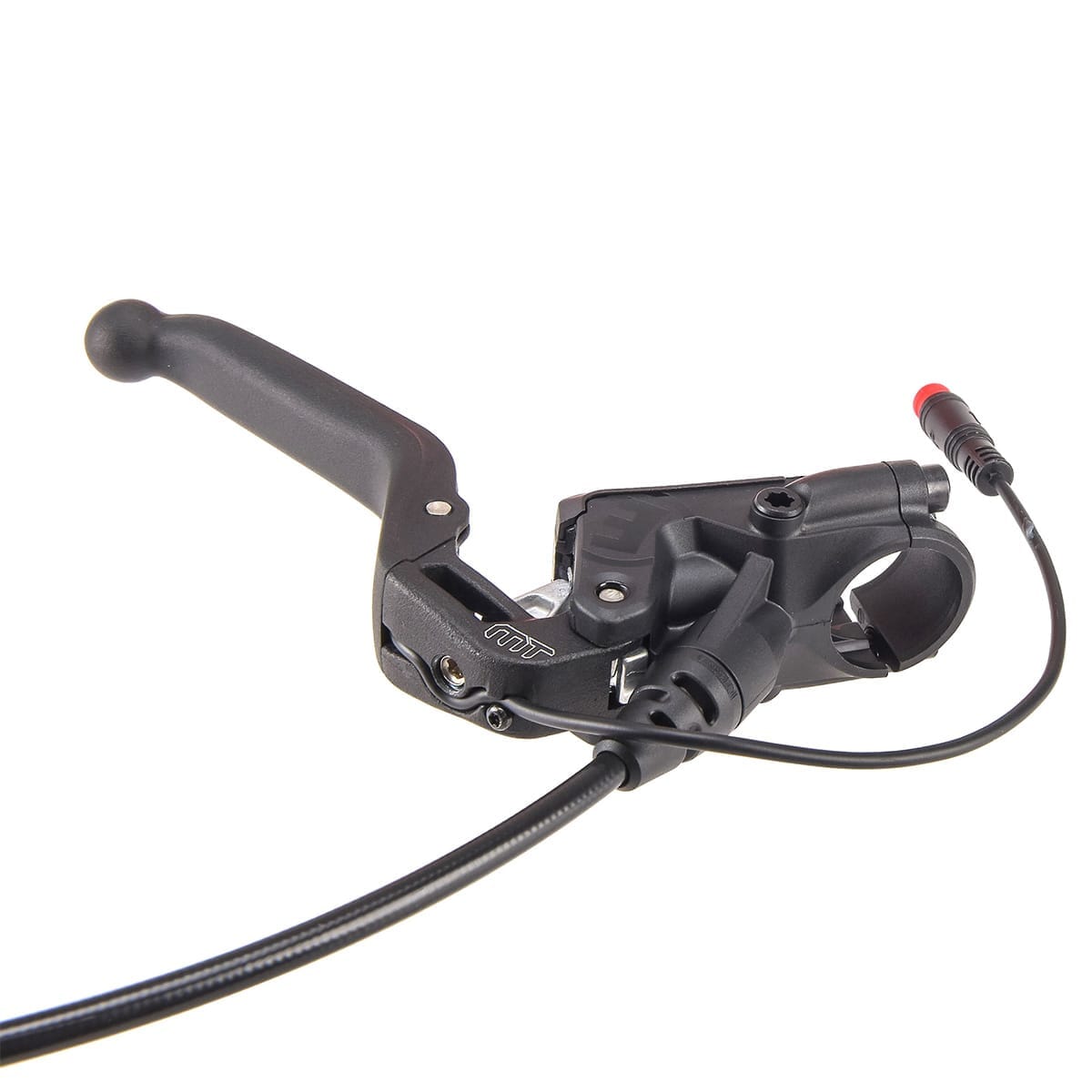

The integrated eBike technology includes a mechanical switch in the brake lever that cuts the motor drive when braking, ensuring optimal safety.

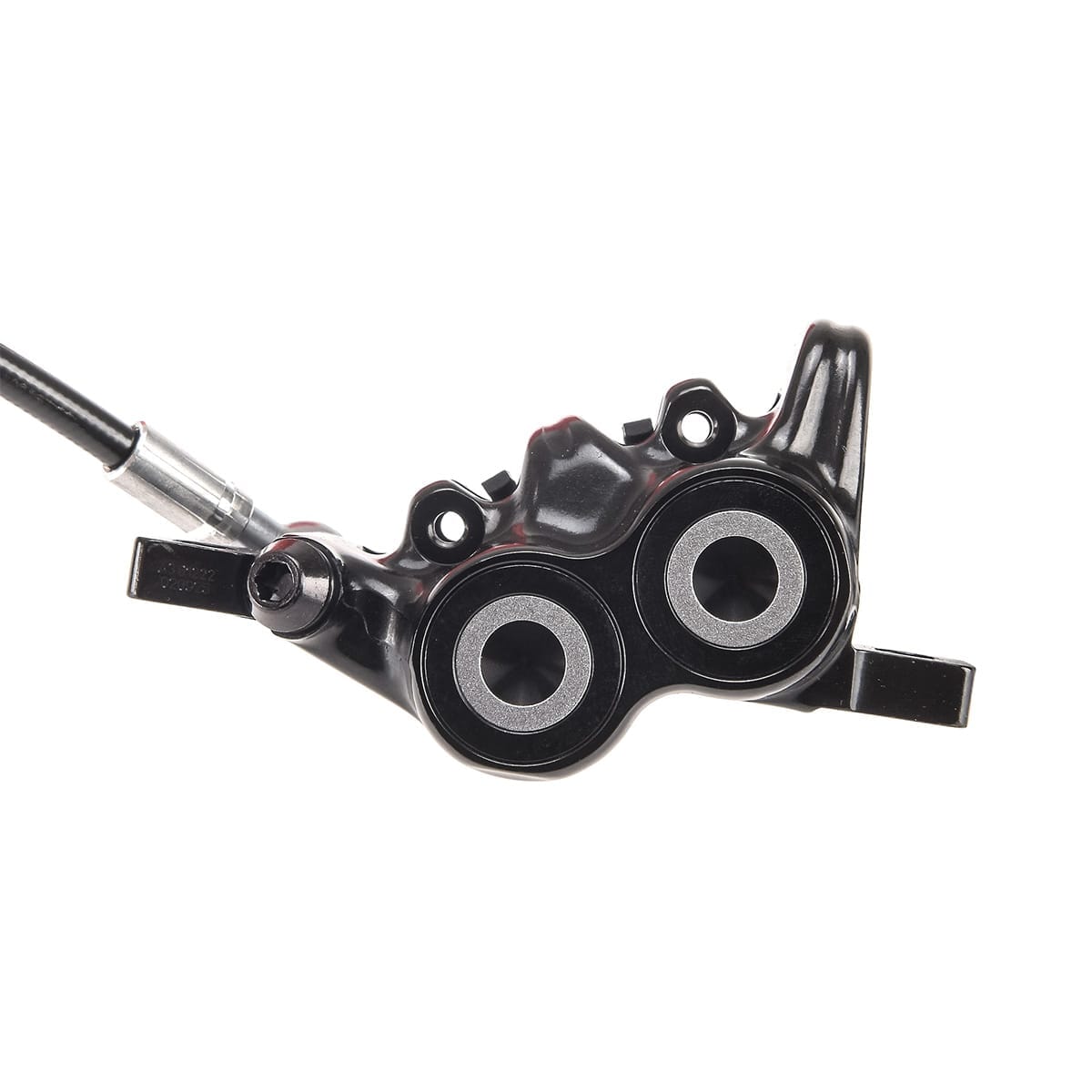

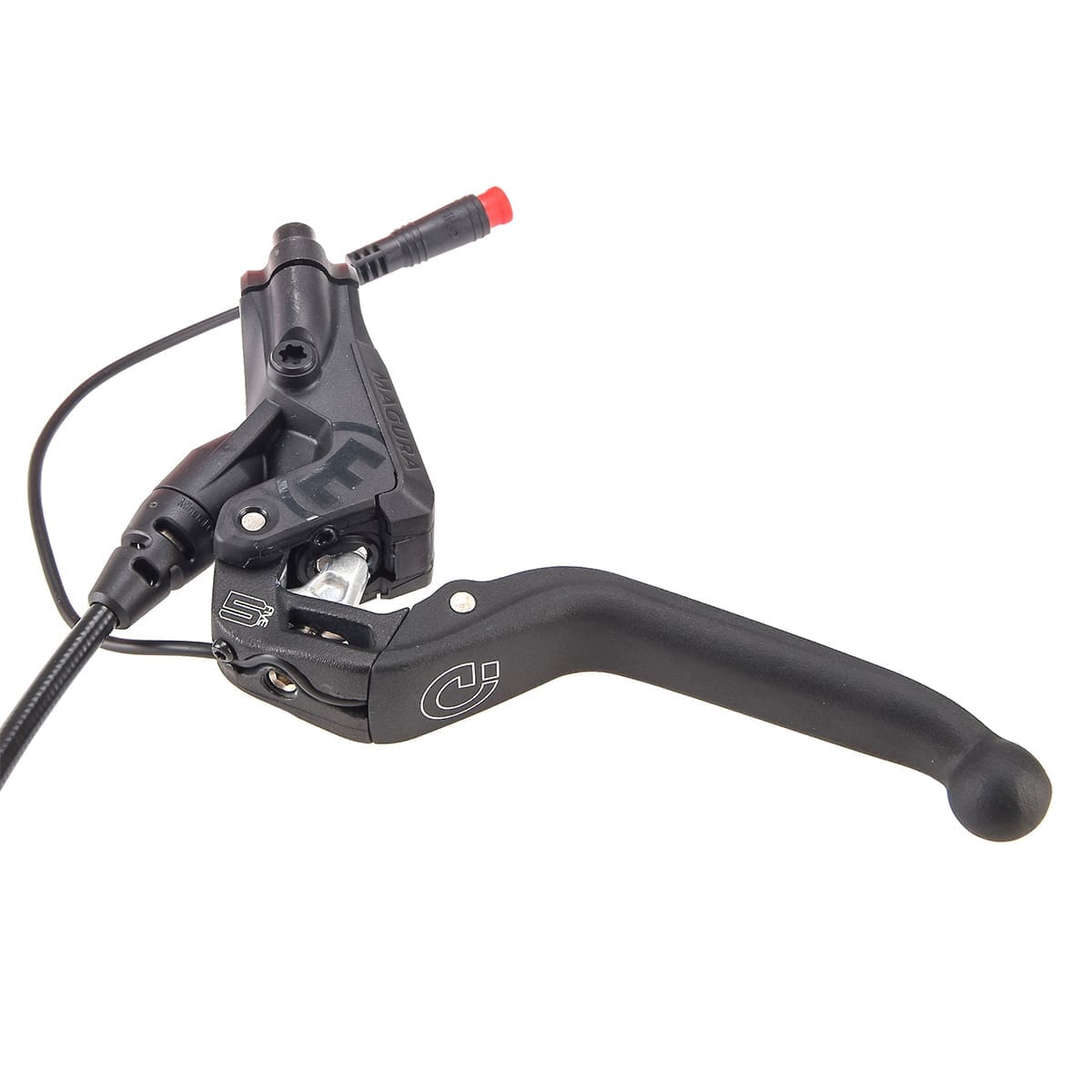

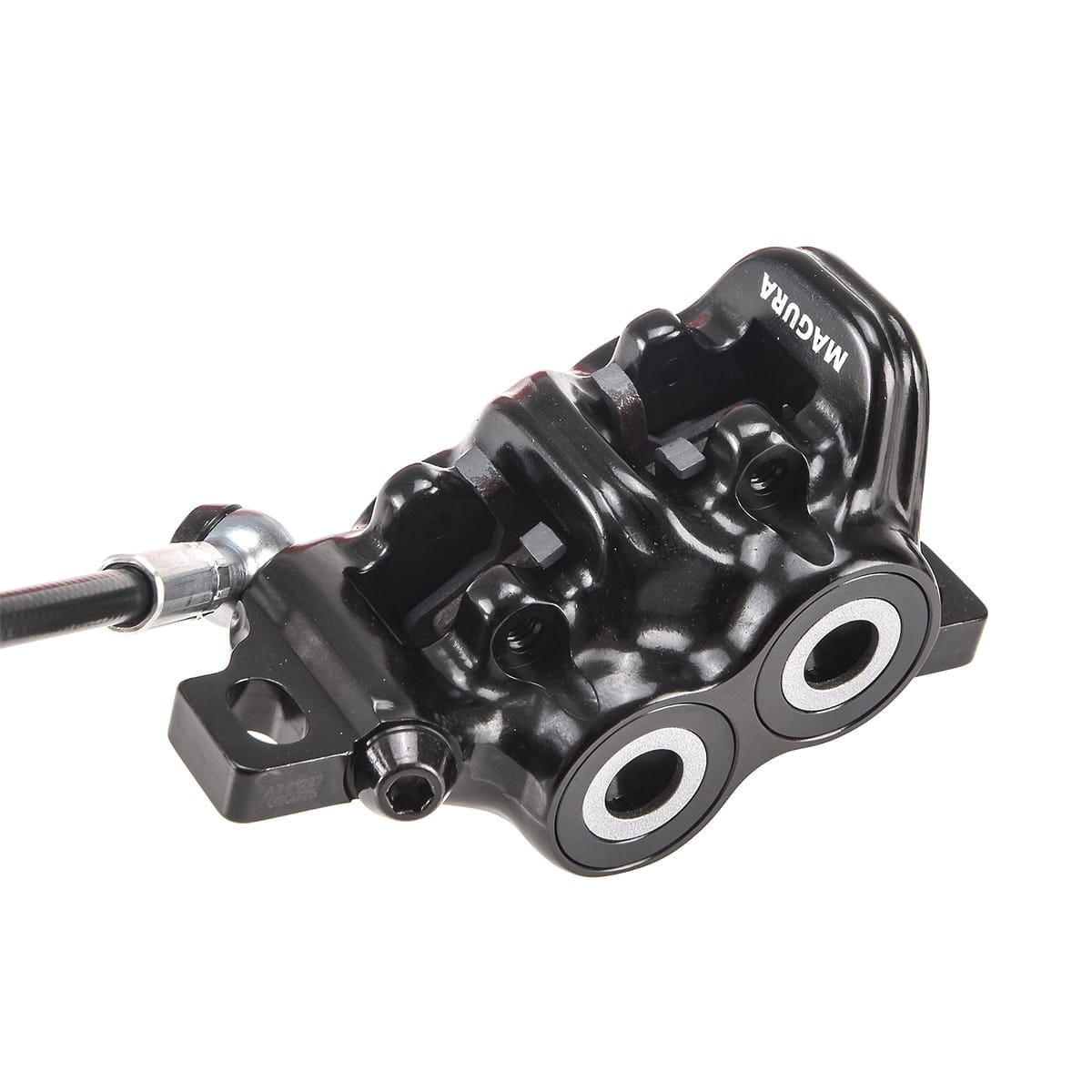

The radial design of the brake lever reduces friction and transmission losses, allowing for varied transmission ratios for better modulation and feel. The one-piece forged 4-piston brake calliper offers great rigidity, resulting in high braking force and optimal modulation. This combination makes the MT5e an ideal choice for cyclists who demand performance and safety.

Manufacturer's Manual

Ref: 7977550741670

Informations techniques

╝KEY FEATURES
► Enhanced Safety: Designed to brake fast e-bikes effectively
► eBike Technology: Mechanical switch cutting motor drive, for example, during braking
► Four Pistons: Powerful braking force and high endurance
► Radial Design: Reduces friction and transmission losses for better modulation
► Rigid Callipers: Forged in one piece for high braking force and optimal modulation╔

┘GENERAL
• Manufacturer Reference: 2700985
• Recommended use: eMTB, eMobility including Speedbike, Cargo bike
• Weight: 275g
• Materials:
_Lever body: Carbotecture
_Lever: Aluminium
_Calliper: Aluminium┌

┘SPECIFICATIONS
• Lever length: 3 fingers
• Brake lever clamp diameter: 22mm
• Number of Pistons: 4
• Calliper Mount: PostMount (PM)
• Pads: 9.P
• Recommended Brake Fluid: Magura Royal Blood mineral oil

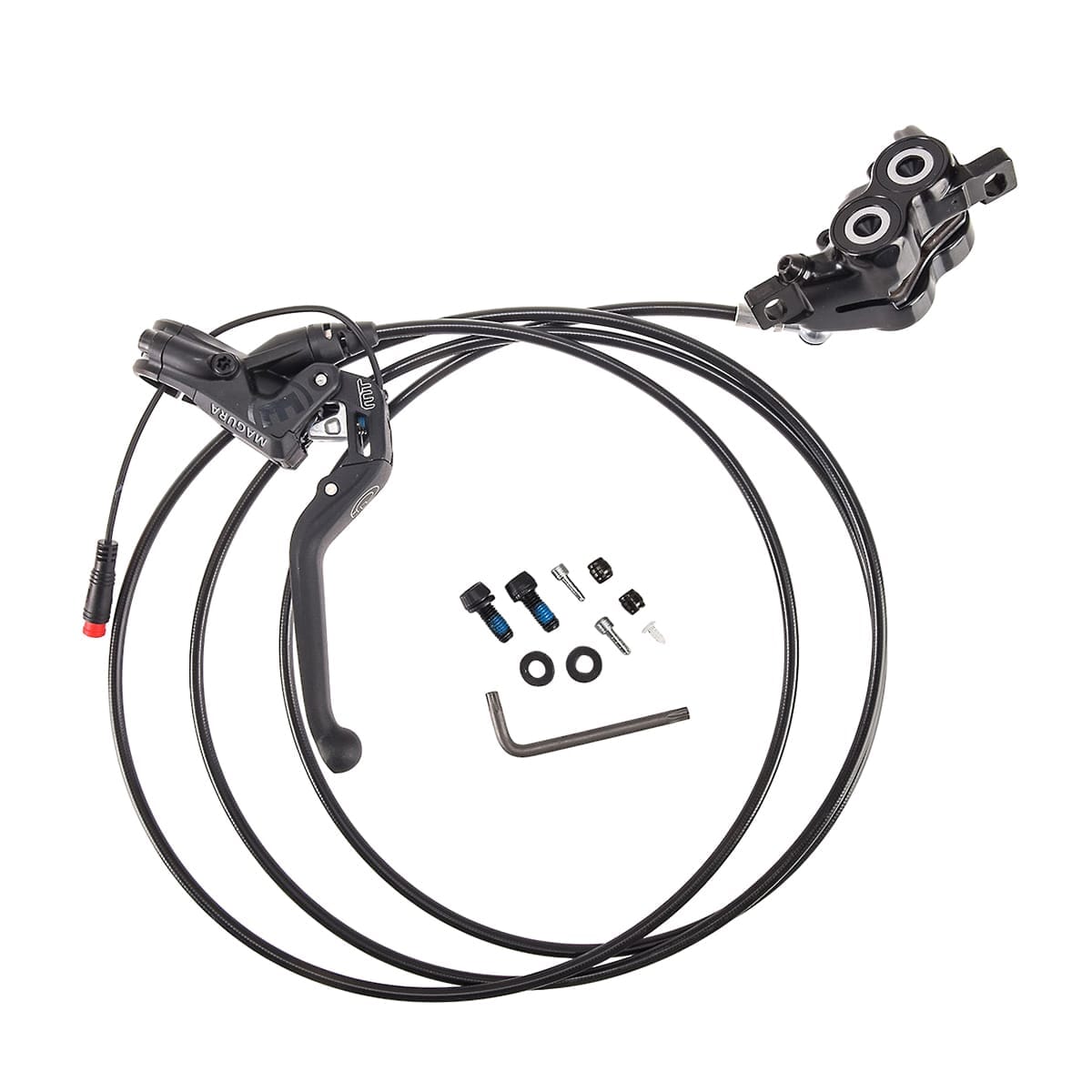

• Hoses: 2200mm - Ø 5mm - RHR fitting (Rotary Banjo)
• Min./max. rotor diameter: 160mm to 203mm (combined with required adapters)
• Recommended rotor: Storm HC
• Reach adjustment: 3mm hex key

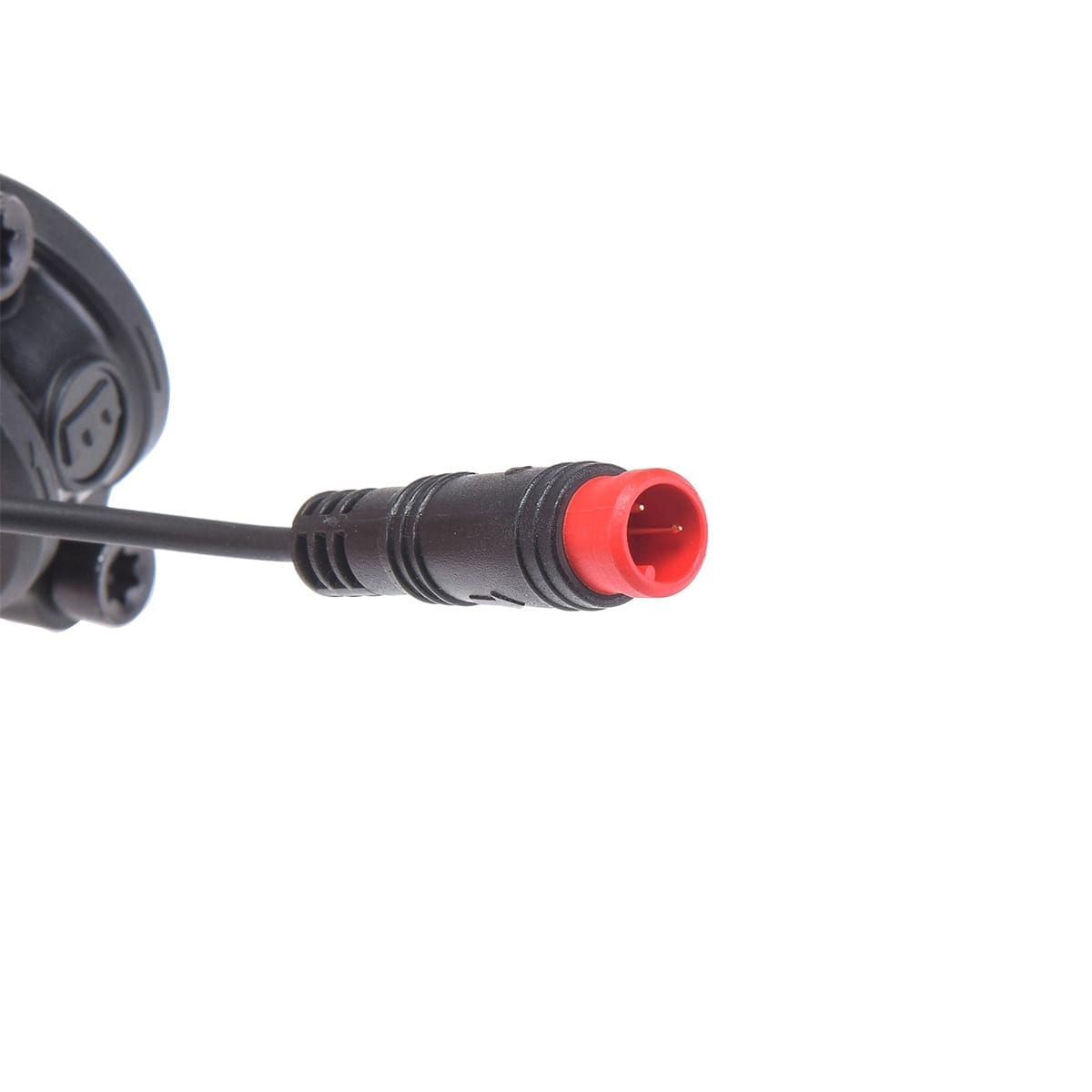

• Electrical system: Opener - Opens/Cuts the circuit when the lever is activated┌

Informations prix

*Supplier recommended retail price in February 2024

Overall rating: 3.857143 / 5 based on 7 reviews.

AI-Generated Review Summary

Summary topics

Review topics: ["brakes", "bike", "bite"].

Review highlights

Reviews

6/10

"Precise and effective braking, but the only issue is that I can't use the engine cut-off cable to stop the engine while braking, so I don't connect the engine cable because it prevents the engine from starting. I use my front brake to stop the engine."

Abdel2022 (3/5)

Magura MT5E brake

"It doesn't work because I need a closer instead of an opener, but there was no way to know that before trying it, and unfortunately I had already cut the hose to test it since I wasn't expecting this, so I can't return it. I’ll have to reorder a closer handle so I can finally use it on my bike."

Nicolas57 (2/5)

Fast and product-compliant

"You have to bleed the brakes several times before they work properly again."

Beep beep (3/5)

has nothing to do with my Formila the one

"A very good set of brakes—they bite well and are responsive at the same time"

Thierry04 (5/5)

editing

"Installing Magura brakes on a Zero 10x scooter"

Anonymous (5/5)

Great brakes!

"Magura is an excellent brand with a well-established reputation. These brakes are progressive and pack a serious punch. I love how smooth the levers are—you can brake with just one or two fingers, even at high speeds. Just so you know, I installed them on a Dualtron Thunder electric scooter, and I needed the model with an electric lock (not an open-type), so be very careful before buying to make sure your e-bike or electric scooter is compatible, because I had to replace the electrical component. Plus, you can customize the lever collars and calipers with color options."

Brahim (5/5)

Great

"What I love is the bite and feel of this brake"

Pierre (4/5)
