CAMPAGNOLO

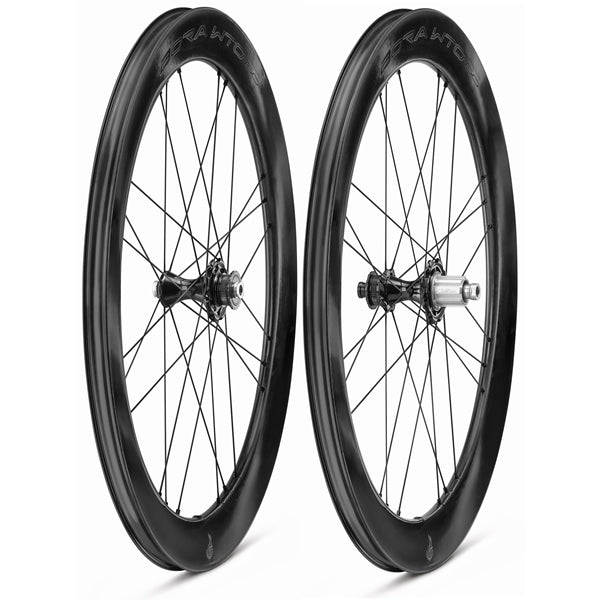

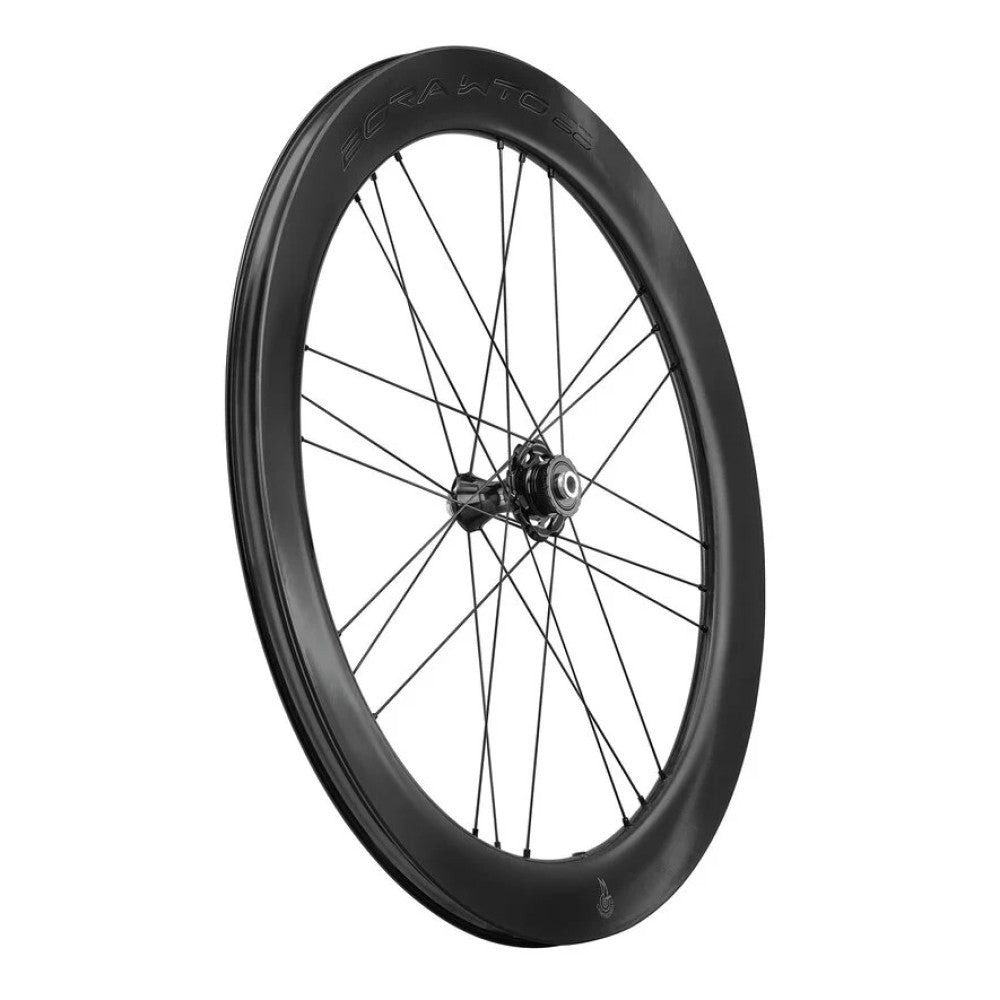

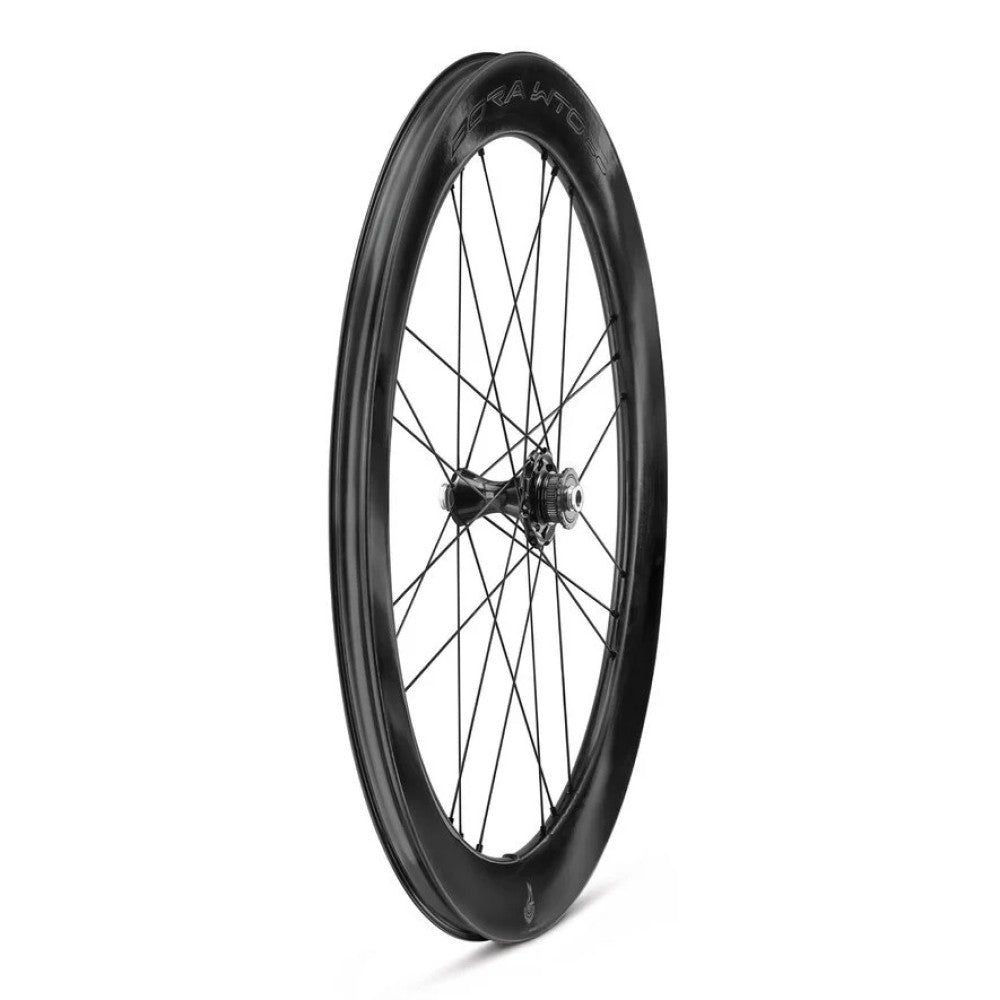

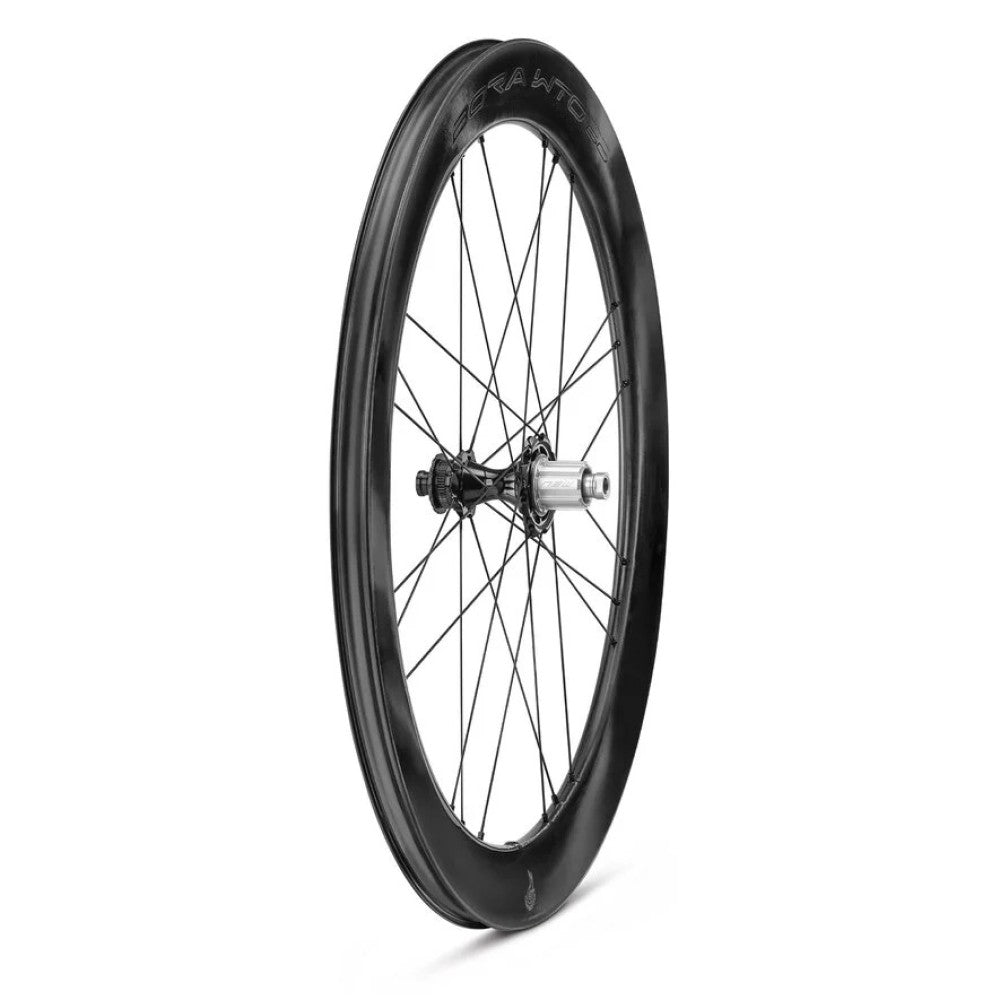

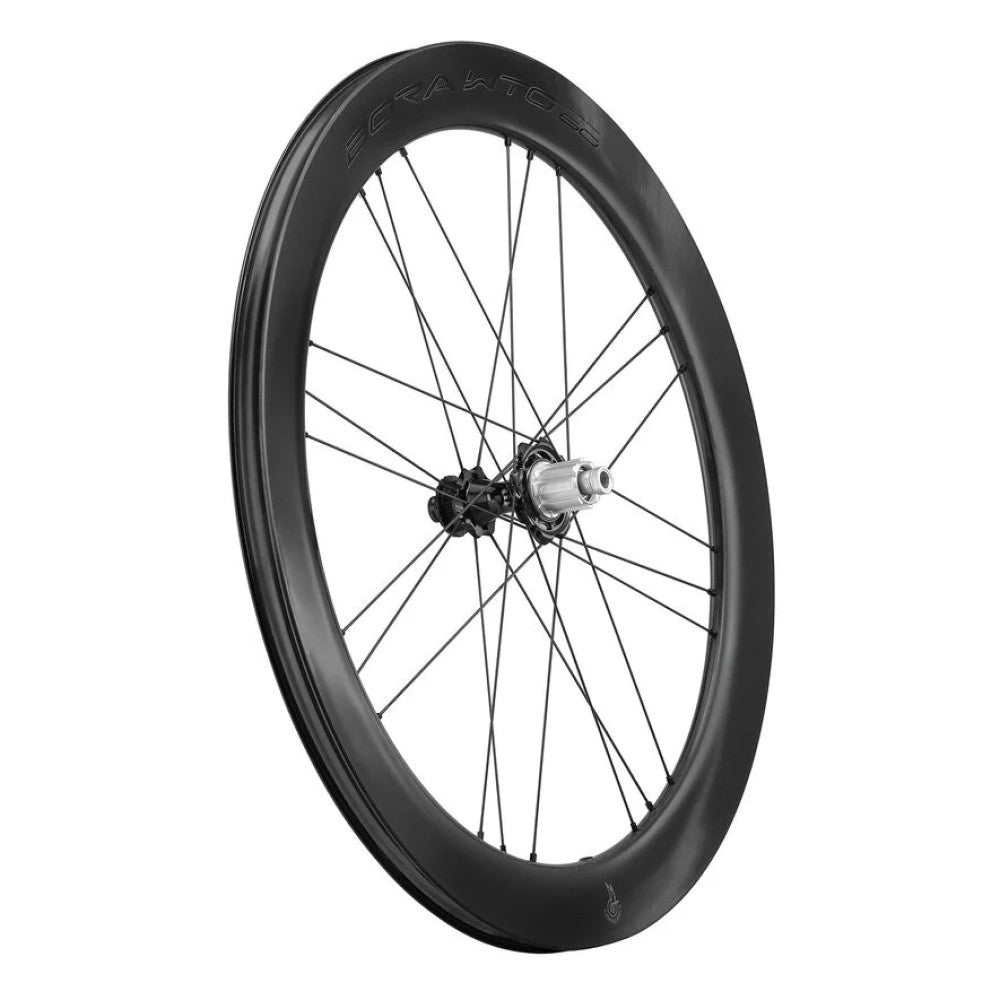

CAMPAGNOLO BORA WTO 60 C23 DISC Tubeless Ready Wheelset (Center Lock)

The CAMPAGNOLO BORA WTO C23 60 DISC wheelset is designed to maximise speed in sprints, time trials, triathlons and circuit races. Its 60 mm... Read more
2.099,90 €
2.099,90 €
View full details

Description

The CAMPAGNOLO BORA WTO C23 60 DISC wheelset is designed to maximise speed in sprints, time trials, triathlons and circuit races.

Its 60 mm deep profile, wind-tunnel optimised, reduces drag and transforms crosswinds into an aerodynamic advantage between 10° and 20° of incidence. The unidirectional carbon rim, aerodynamic aluminium hubs and USB ceramic bearings ensure smooth performance. Its tapered hub minimises the frontal surface area, while its elliptical spokes reduce resistance.

With an internal width of 19 mm, the rim is compatible with tyres from 23 to 28 mm. Thanks to 2-Way Fit, it is compatible with both tubeless and traditional tyres. The MoMag™ system guarantees a hole-free top bridge, reducing wheel weight and improving stiffness. Finally, G3™ spoke lacing improves braking and stability under high pressure.

Manufacturer's Manual

Campagnolo Rim-Tyre-Pressure Compatibility

Ref: 9548120260957

Informations techniques

┘GENERAL
Front axle dimension: 12x100mm
Rear axle dimension: 12x142mm
Internal width: 19mm
Height: 60mm
Disc: Center Lock
Weight: 1590 g
Manufacturer Reference:
• WC436BAP1A110 - Shimano HG
• WC436BAP5A110 - SRAM XDR

┘RIMS
Rim height: 60 mm
Rim material: Carbon
Rim section (height/width): 45/29.0 mm
Internal rim width: 23 mm
Recommended tyre size: 700x28 to 700x35
Water Transfer graphics

┘SPOKES
24 steel spokes with aero-elliptical cross-section at the front grouped with the G3 system
24 steel spokes with aero-elliptical cross-section at the rear grouped with the G3 system

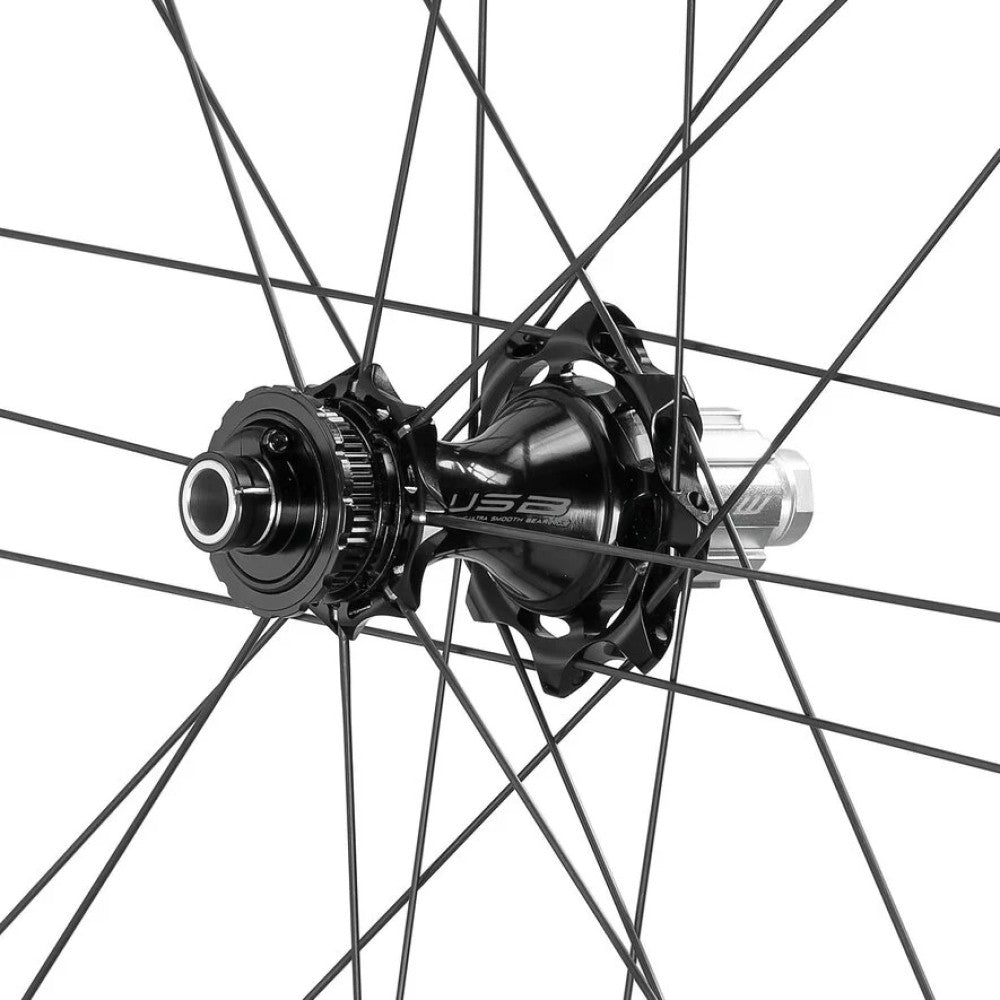

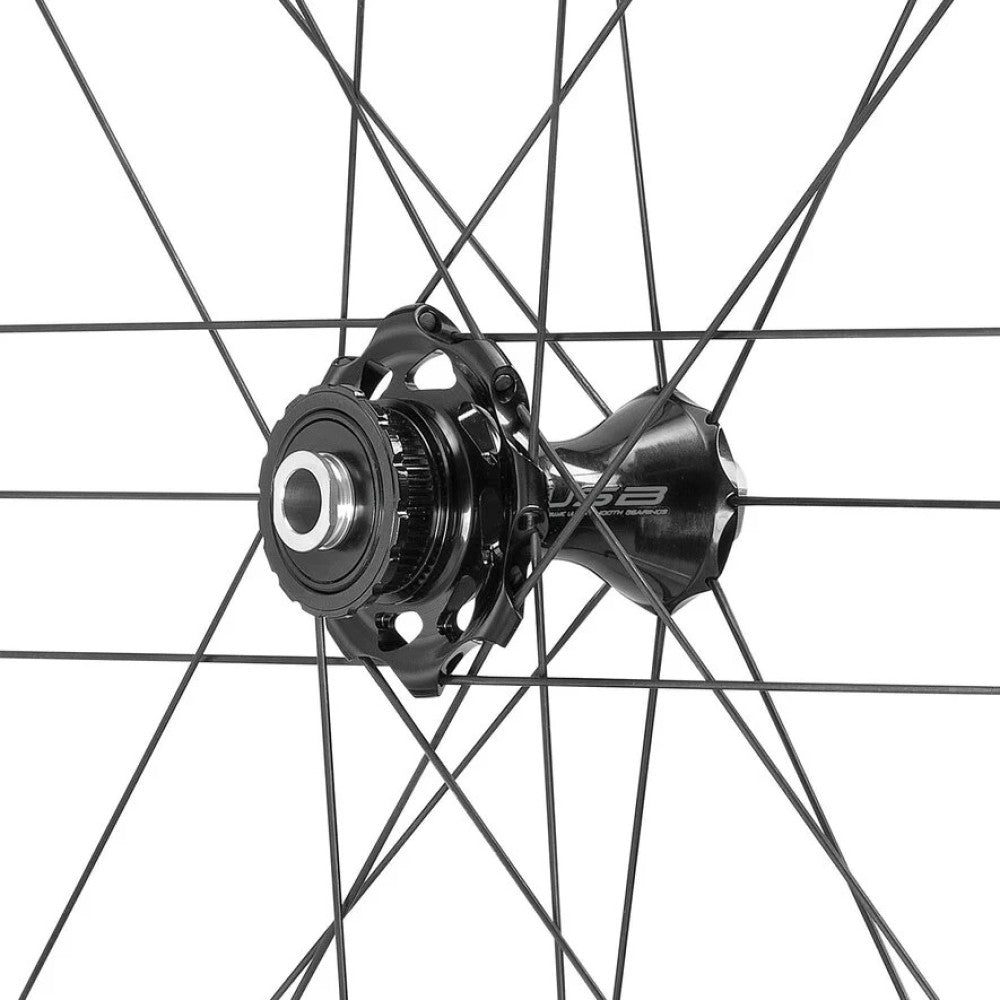

┘HUB
One-piece black aluminium hub
USB cup-and-cone
Hub end cap: 100 mm front, 142 mm rear
Axle material: aluminium
Cup-and-cone bearing system

Tyres: Tubeless and Tubetype (2-WAY-FIT)

┘ASSEMBLY & TECHNOLOGIES
► The Bora™WTO™ 60 Disc Brake wheel is manually assembled and precisely checked, ensuring maximum reliability thanks to Campagnolo® electronic instruments;

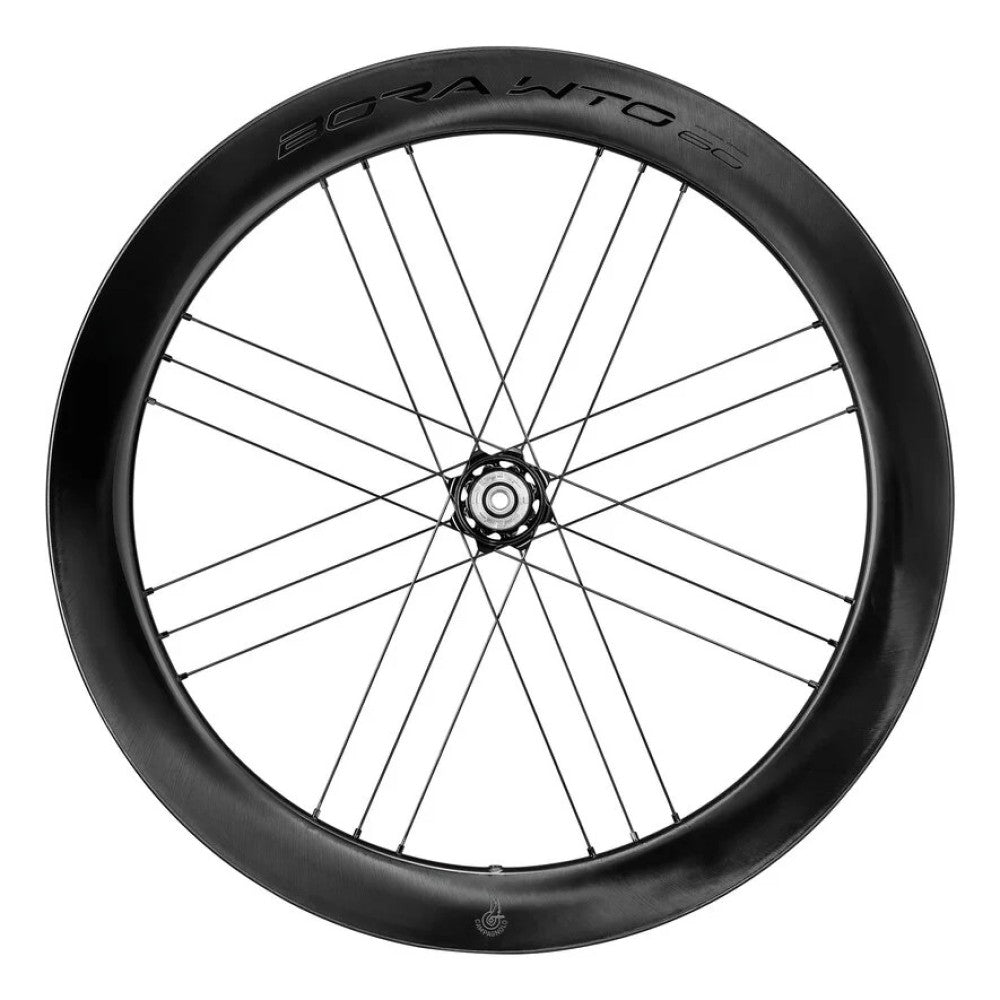

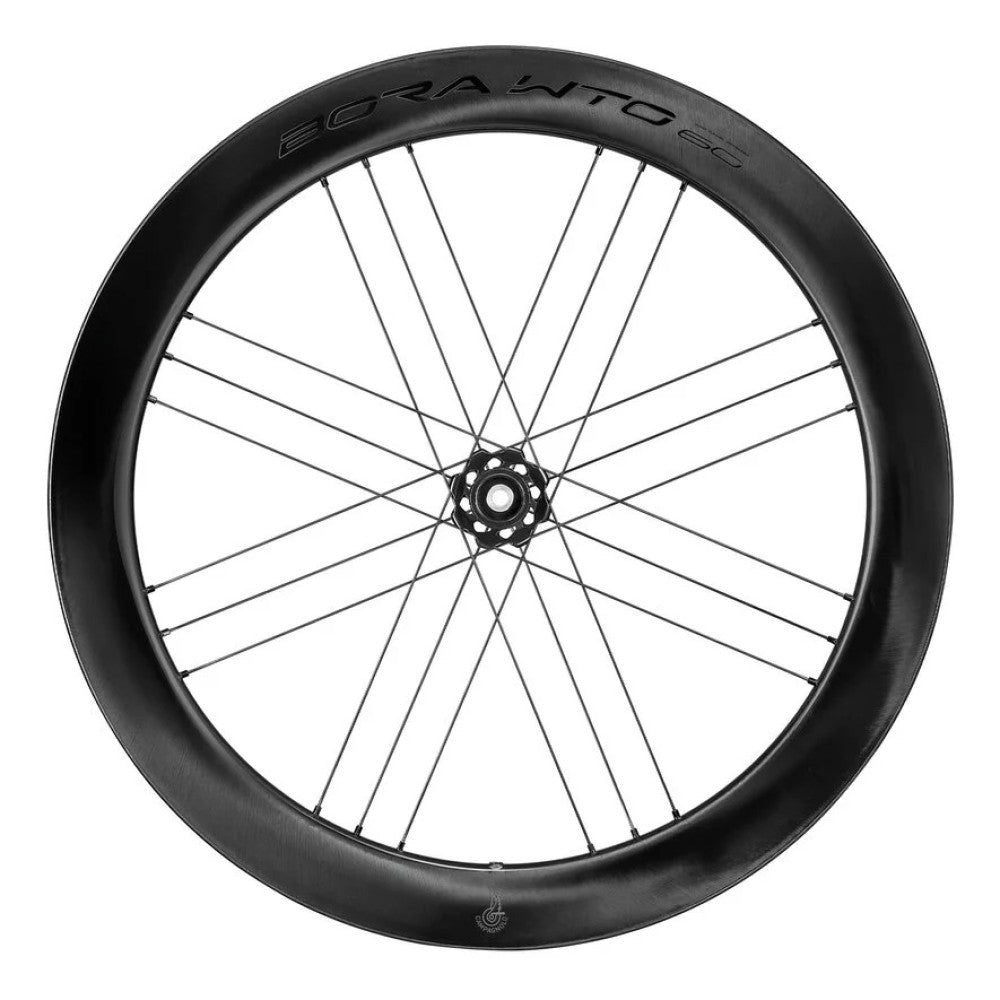

► G3 Spoking: Campagnolo's G3 geometry, with its groups of three parallel straight-pull spokes arranged in a 2:1 ratio, allows perfect tension balancing, increased stiffness and improved power transfer.
► Ultra-lightweight design thanks to H.U.L.C carbon and the paint-free C-LUX finish;
► The Aerodynamics/Stability compromise of the "teardrop" profile;

┘INCLUDED
Tubeless valve
Valve reduction barrel
2 composite tyre levers
User manual
;

Informations prix

*Supplier recommended retail price in May 2024
