PRIDE

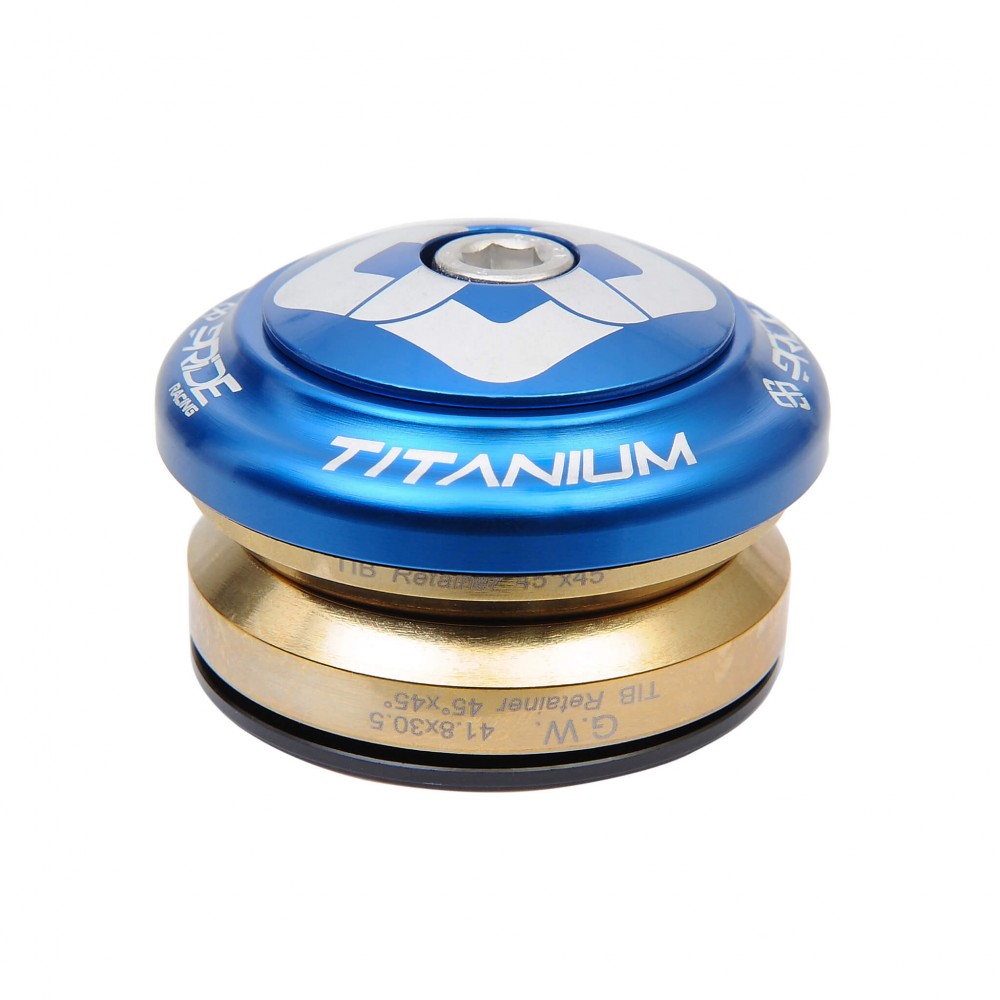

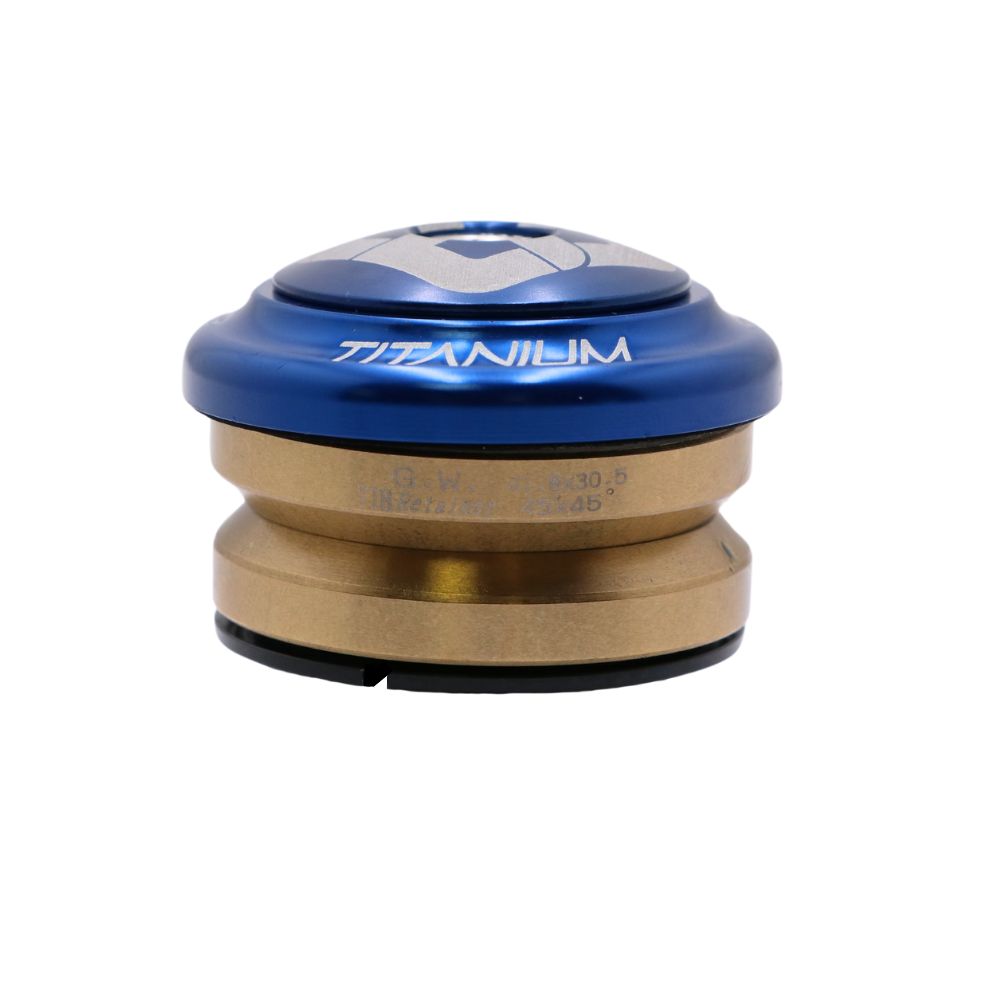

PRIDE Ti45 Titanium iIS42 1"1/8 Integrated Headset Blue

The PRIDE Ti45 Titanium iIS42 1"1/8 Integrated Headset is designed for frames equipped with an integrated head tube. It combines sealed angular contact bearings... Read more
49,34 €
49,34 €
View full details

Description

The PRIDE Ti45 Titanium iIS42 1"1/8 Integrated Headset is designed for frames equipped with an integrated head tube. It combines sealed angular contact bearings and a Titanium coating to improve corrosion resistance, rotation smoothness and overall durability.

Its design benefits from a double seal at the top cap, limiting the ingress of contaminants and helping to preserve bearing performance over time. The system ensures precise and reliable operation for consistently smooth steering.

The kit includes a CNC-machined forged aluminium top cap, as well as all the components required for installation. The IS42 / 28.6 mm format is suited to 1"1/8 fork steerer tubes, with a clean and durable black finish.

Ref: 15986271584636

Technical information

Material: Aluminium / Steel (Bearings)
SHIS Code: IS42-28.6 / IS42-30
Headset type: Integrated (IS)
Bearings: 30.6-41.8mm / 45°x45°
Fork compatibility: 1-1/8"
Weight: 95g

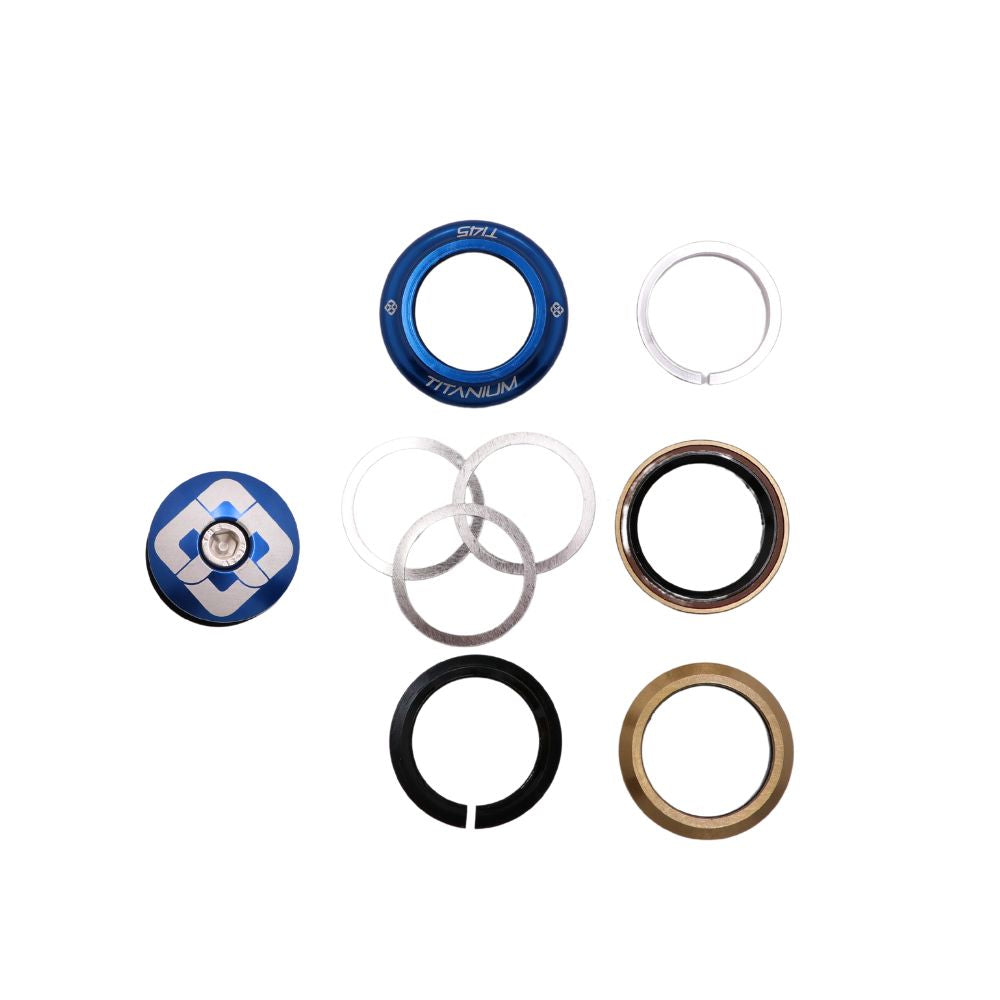

Kit contents:
1x Star nut
1x Top cap
2x SHIM spacer
1x Compression ring
1x Upper bearing
1x Lower bearing
1x Fork crown race 1-1/8"
;
