SHIMANO

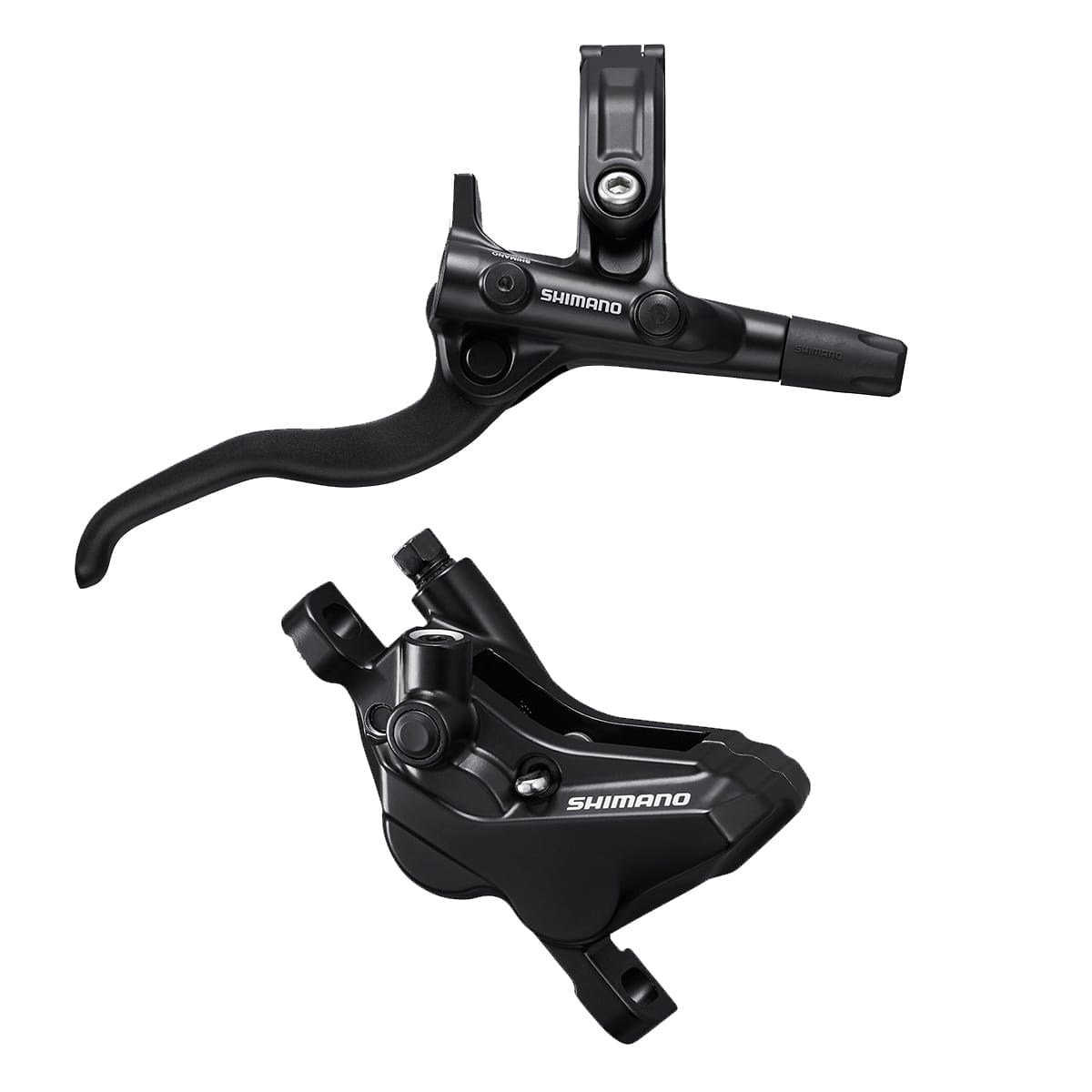

SHIMANO MT420 Rear Brake 4 Pistons J-Kit

Réf. fabricant : EMT4204JRRXRA170
The SHIMANO MT420 Rear Brake is designed to deliver consistent braking performance and reliable stopping power in all conditions. The BR-MT420 calliper, with its... Read more
83,99 €
83,99 €
View full details

Description

The SHIMANO MT420 Rear Brake is designed to deliver consistent braking performance and reliable stopping power in all conditions. The BR-MT420 calliper, with its 4 pistons, boosts confidence and control on descents, guaranteeing a precise and secure response.

The BL-M4100 brake lever enables rapid engagement and a shortened stroke, offering intuitive braking to stay focused on the trail. The I-SPEC EV mounting standard offers the possibility of seamless integration of cockpit components, a wider adjustment range, allowing for optimal personalised adjustment. This combination of technology and design makes the SHIMANO MT420 an ideal choice for discerning cyclists, ensuring high-performing braking suited to a variety of terrains and conditions.

► Manufacturer Manual

Ref: 7977571680422

Informations techniques

╝KEY FEATURES
► Quick Engagement: Intuitive braking to stay focused on the trail
► Personalised Adjustment: Wide adjustment range for optimal fit
► Consistent Performance: Reliability with a 4-piston calliper for increased control on descents
► J-KIT: The J-Kit system makes it easier to route the brake hose inside the frame, with a simplified connection to the calliper and a pre-fitted olive, for quick and easy installation
► I-SPEC EV: The I-SPEC EV mounting standard offers a clean cockpit, adaptable to all riders thanks to a generous adjustment range, improving comfort and concentration with an ergonomic design and increased rigidity for optimal control
► ONE WAY BLEEDING: System designed to prevent air bubbles in the hydraulic circuit, ensuring a quick and clean bleed thanks to a one-way oil path and a funnel-shaped tool╔

┘GENERAL
• Series: Groupset Independent
• Manufacturer Reference:

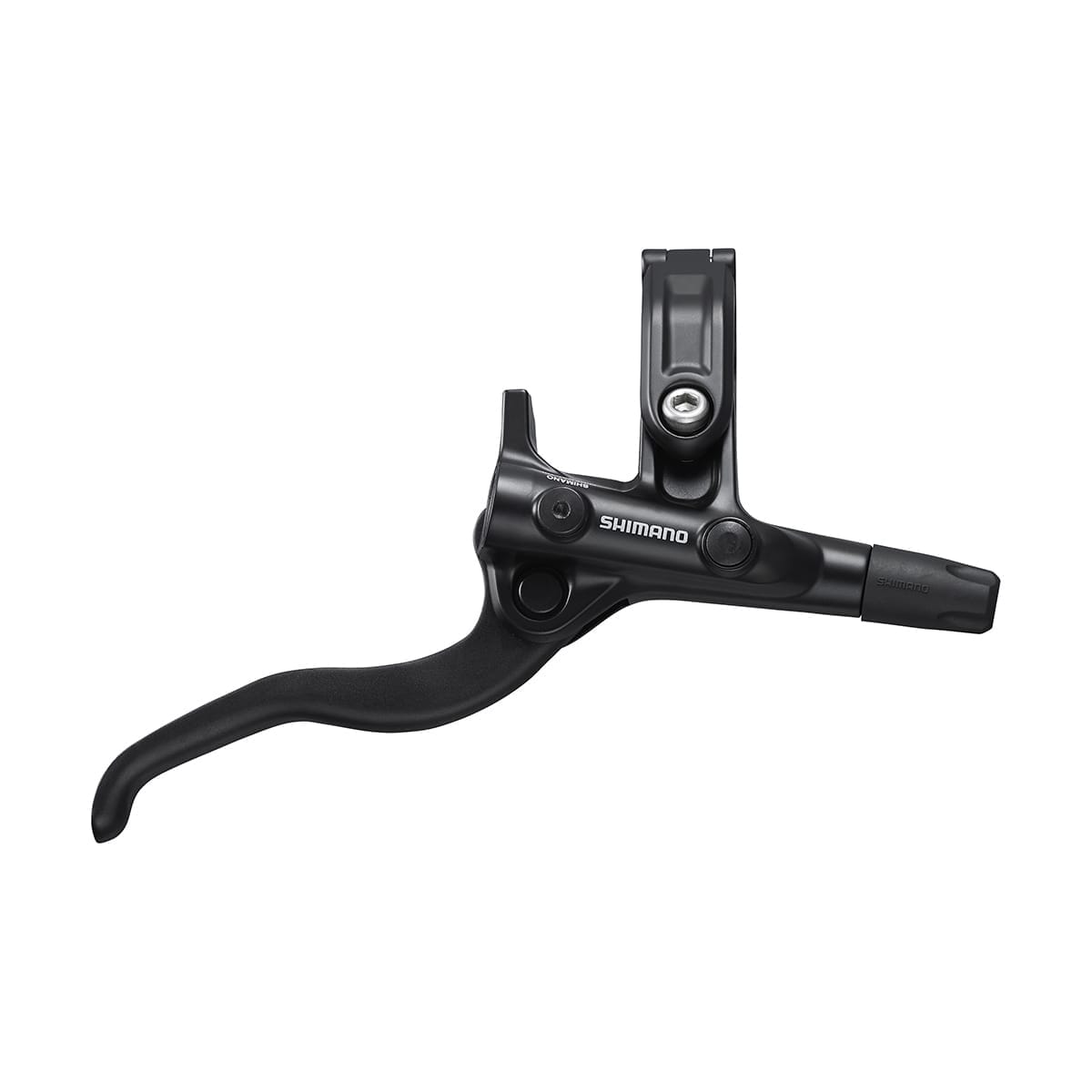

_Lever: BL-M4100

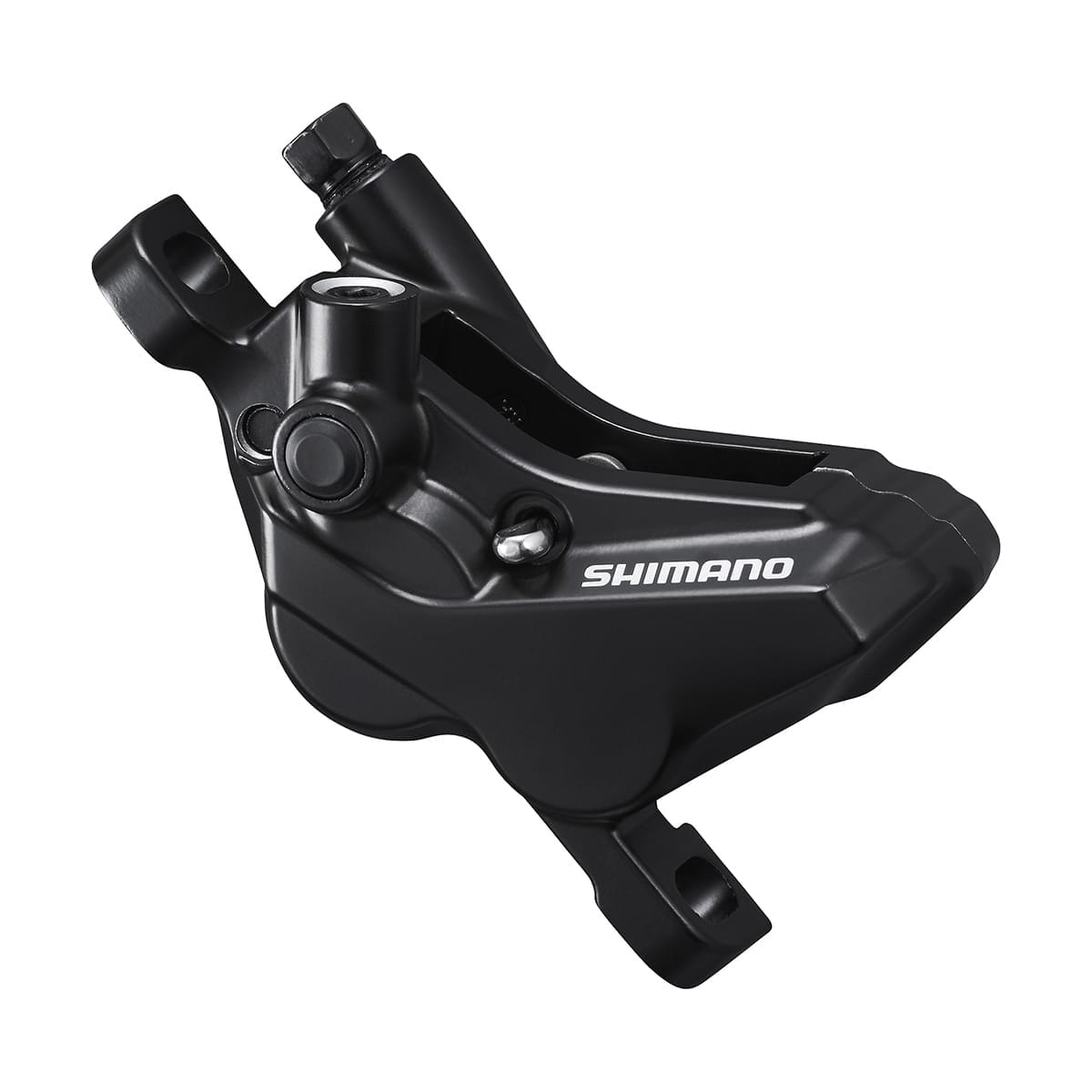

_Calliper: BR-MT420
• Weight:
_Lever: n/a
_Calliper: n/a
_Lever/Calliper/Hose Assembly: n/a
• Materials:
_Lever: Aluminium
_Calliper: Aluminium
_Pistons: Resin┌

┘SPECIFICATIONS
• Brake Lever/Gear Shifter Integration: I-SPEC EV
• Lever Length: 2 Fingers
• I-SPEC EV Adjustment Angle: 10°
• Number of Pistons: 4
• Calliper Mounting: PostMount (PM)
• Pads: D03S-RX, D02S-MX
• Recommended Brake Fluid: Shimano Mineral Oil
• Hoses: 1700mm - SM-BH90-SBM - Banjo Fitting
• Min./Max. Rotor Diameter: 160mm to 220mm (combined with required adapters)
• Recommended Rotor: SM-RT30, SM-RT54, SM-RT56, SM-RT64 (not included)
• J-Kit Pre-bleed: Yes┌
;

Informations prix

*Supplier recommended retail price in February 2024

Overall rating: 5.0 / 5 based on 1 review.

AI-Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

great product

"Excellent brakes. The braking feels smooth at the beginning of the stroke and becomes very effective when you squeeze the lever harder. Installation was easy, and I didn't even need to adjust the caliper—it seated perfectly the first time (after tightening the lever before securing the caliper screws, of course)."

— Bebert (5/5)
