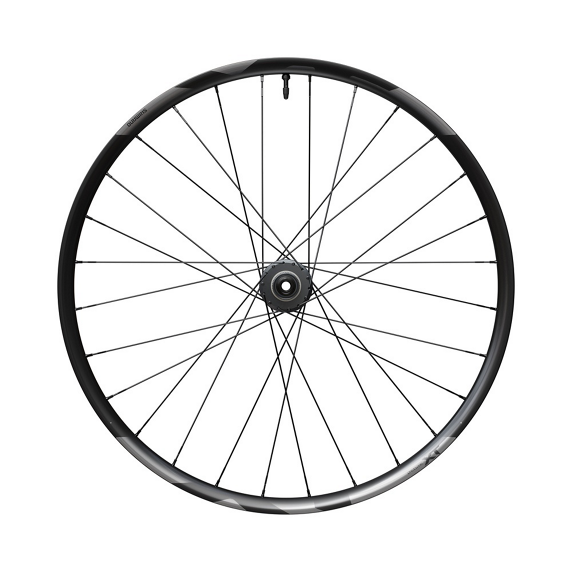

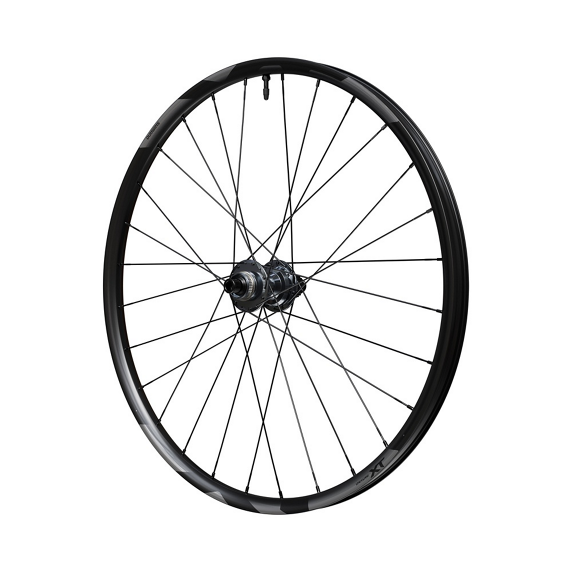

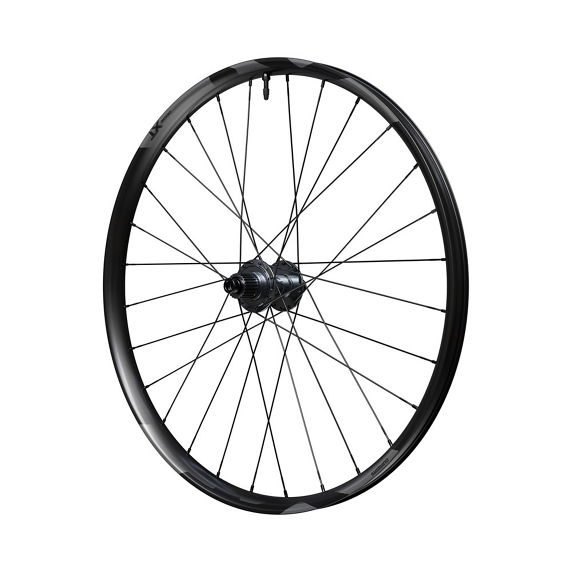

SHIMANO XT M8200 27.5'' Rear Wheel 12x148 mm Axle

Réf. fabricant : EWHM8200LREBD7
The SHIMANO XT M8200 rear wheel is designed to offer durability, performance and reliability to all mountain bikers. Built around a 30 mm alloy... Read more
293,90 €
293,90 €
View full details

Description

The SHIMANO XT M8200 rear wheel is designed to offer durability, performance and reliability to all mountain bikers. Built around a 30 mm alloy tubeless rim, it combines stiffness and compliance for precise, responsive handling on all types of terrain. Equipped with stainless steel spokes and a redesigned DEORE XT hub, it meets the demands of both aggressive rides and long-distance adventures.

Available in 27.5 or 29 inches, this wheel adapts to a wide variety of riding styles. Its conventional 28-hole drilling, 148x12 mm Boost rear spacing and CENTER LOCK disc mount ensure maximum compatibility with modern frames and braking systems. The MICRO SPLINE freehub body allows seamless integration with SHIMANO 12-speed cassettes.

The FH-M8210-B hub offers a rapid engagement angle of 3.5°, guaranteeing immediate power transfer when pedalling. Thanks to optimised seals and smooth bearings, resistance is reduced for increased efficiency.

Equipped with easy-to-maintain cartridge bearings, the SHIMANO XT M8200 wheel ensures smooth and consistent rotation, even in the most demanding conditions.

Ref: 15388305949052

Informations techniques

Model: WH-M8200-TL-R12-B-275

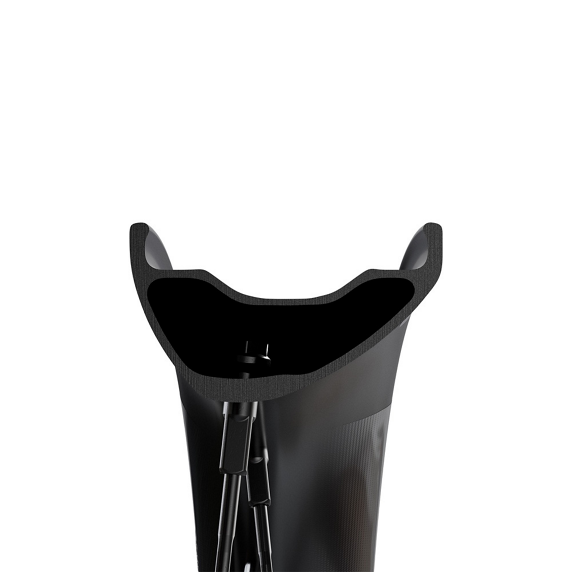

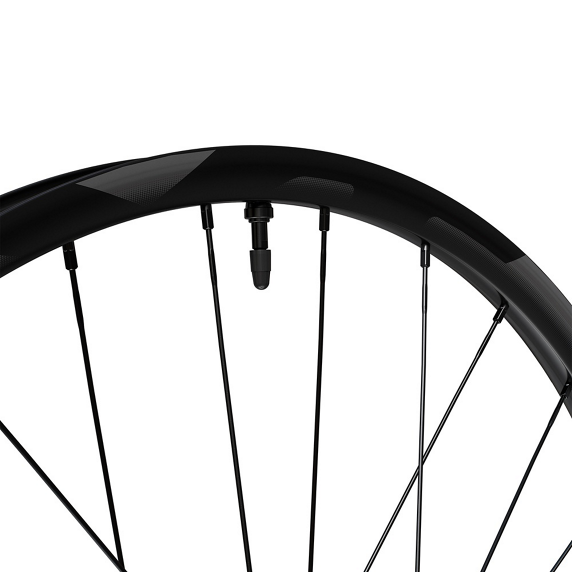

Rim:
Welded aluminium rim.
Internal width 30mm.
External width 34.7mm.
Height 19.8mm.
Tubeless compatible.
Asymmetric profile.
Tubeless rim tape and valve included.
For tyres 27.5 x 2.30 - 2.60.

Spokes:
J-Bend stainless steel 2.0-1.6mm.
Conventional drilling.
28 spokes.

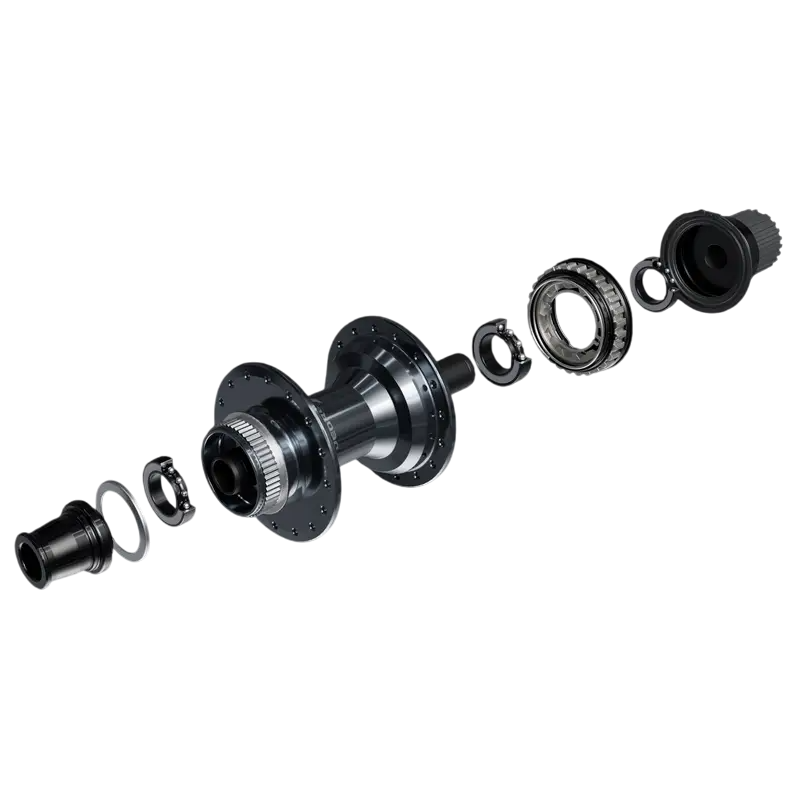

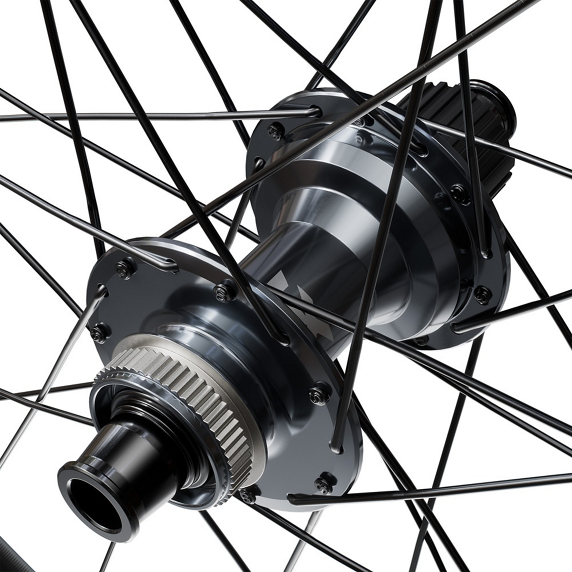

Hub:
Axle 12x148mm.
Aluminium body.
Direct Engagement system.
3.5 degree engagement angle allows for quick starts, while a smart seal design and smooth bearings mean less drag when freewheeling.
Stainless steel cartridge bearings.
Labyrinth + Contact seals.
Centerlock disc mount (nut included).

Microspline freehub body

Weight (manufacturer): 997g
;
