SHIMANO XTR M9200 XC 29'' front wheel 15x110mm axle

Réf. fabricant : EWHM9200LFEBD9X
The SHIMANO XTR M9200 XC 29'' front wheel wheel is designed for cross-country looking for maximum performance. The ultra-light 29.6 mm carbon tubeless rim... Read more
1.070,99 €
1.070,99 €
View full details

Description

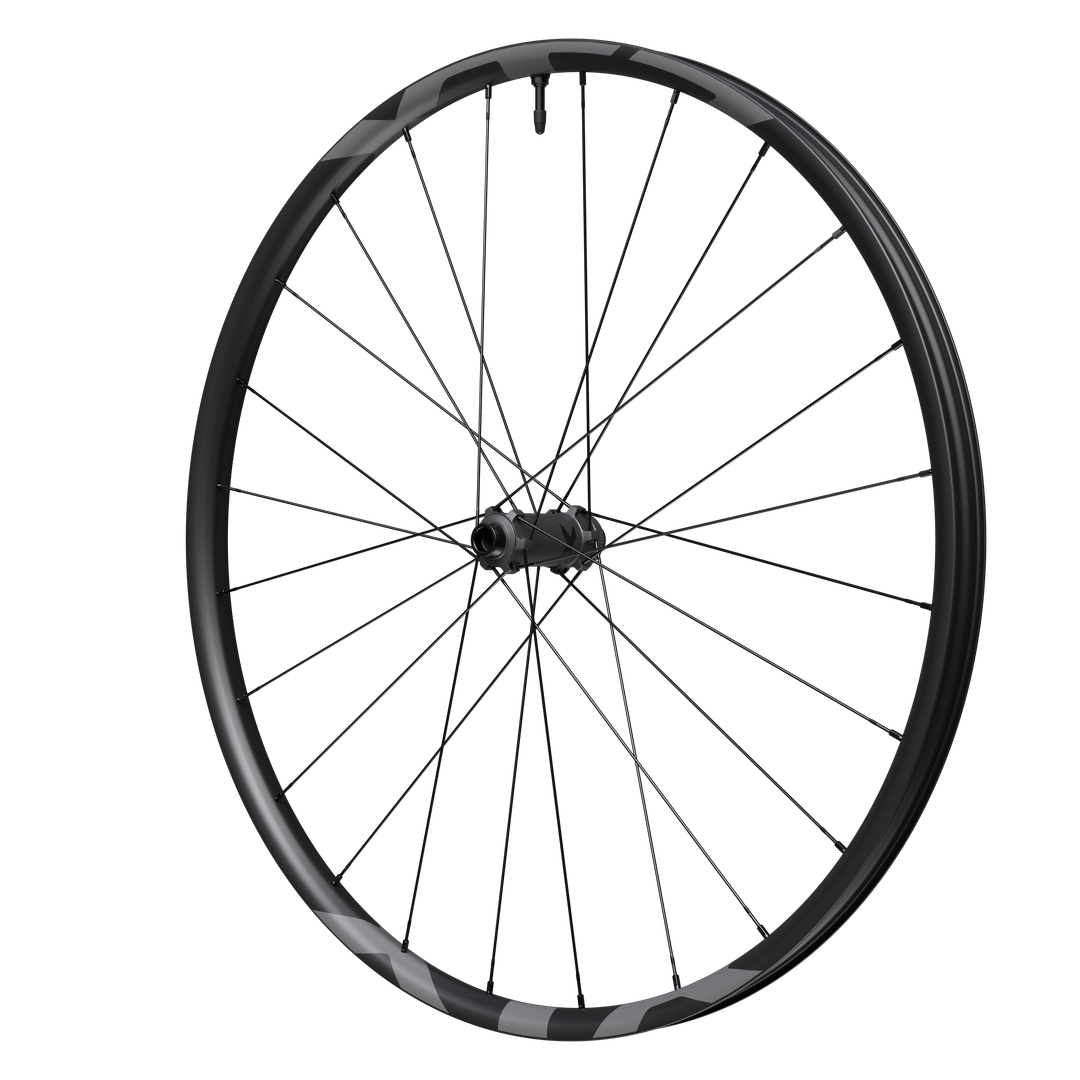

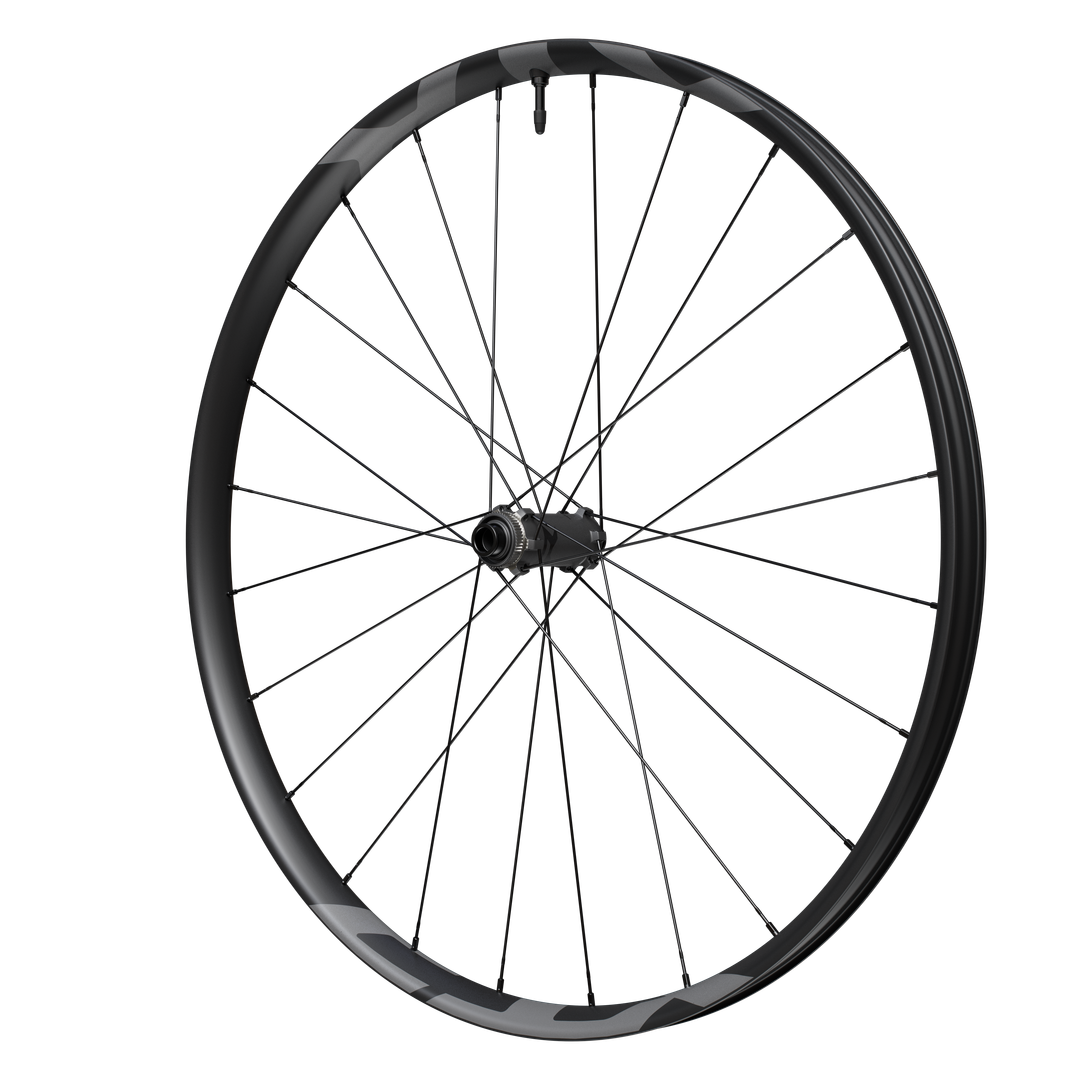

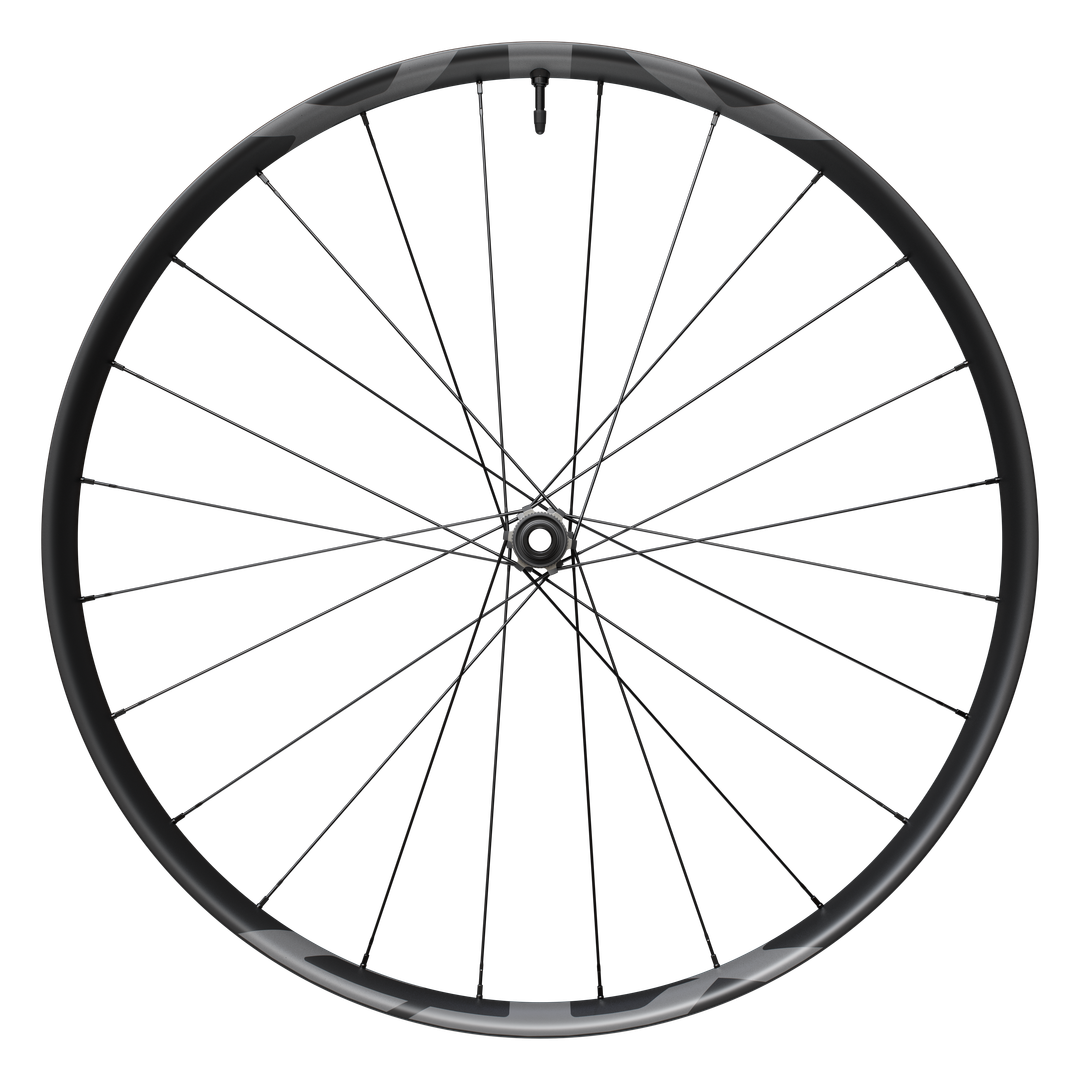

The SHIMANO XTR M9200 XC 29'' front wheel wheel is designed for cross-country looking for maximum performance. The ultra-light 29.6 mm carbon tubeless rim is Shimano's lightest ever. This structure offers an excellent compromise between light weight and robustness, ideal for the demands of high-level XC.

The titanium spokes, mounted in 24-point straight-link, ensure excellent tension and a good balance between stiffness and flexibility. Combined with a 110x15 mm Boost front hub, this configuration guarantees efficient power transmission and enhanced stability in technical sections.

The FH-M9210-B hub features a cartridge bearing system, combined with optimized seals and a low-friction design, reducing energy loss during freewheeling.

Equipped with Centerlock brake mounts, this wheel is the perfect complement to a high-end XTR assembly. It represents the ultimate combination of lightness, responsiveness and reliability.

Ref: 15283868500348

Informations techniques

Model: WH-M9200 for practical XC.

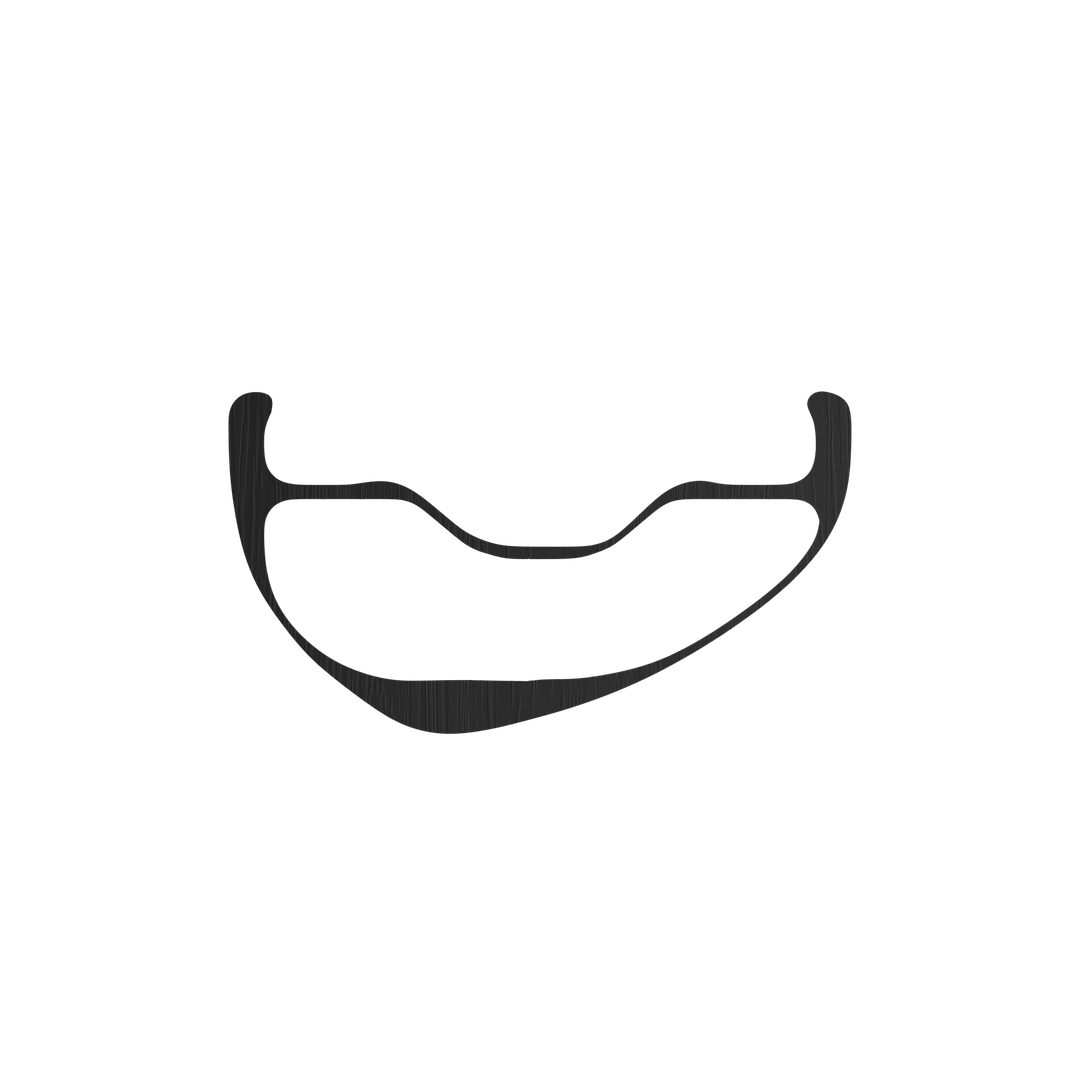

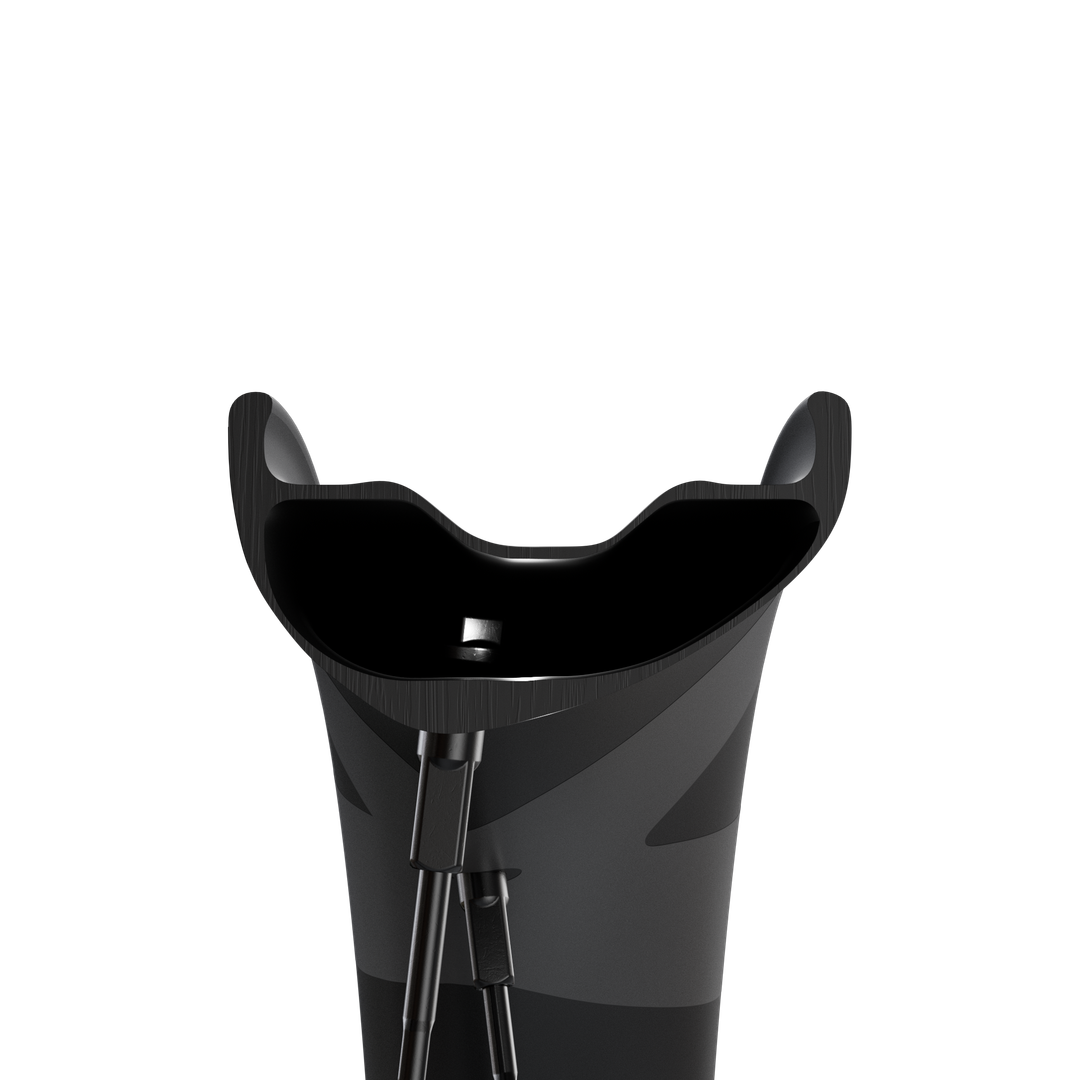

Rim :
Carbon rim.
Internal width 29.6mm.
External width 35mm.
Height 19.2mm.

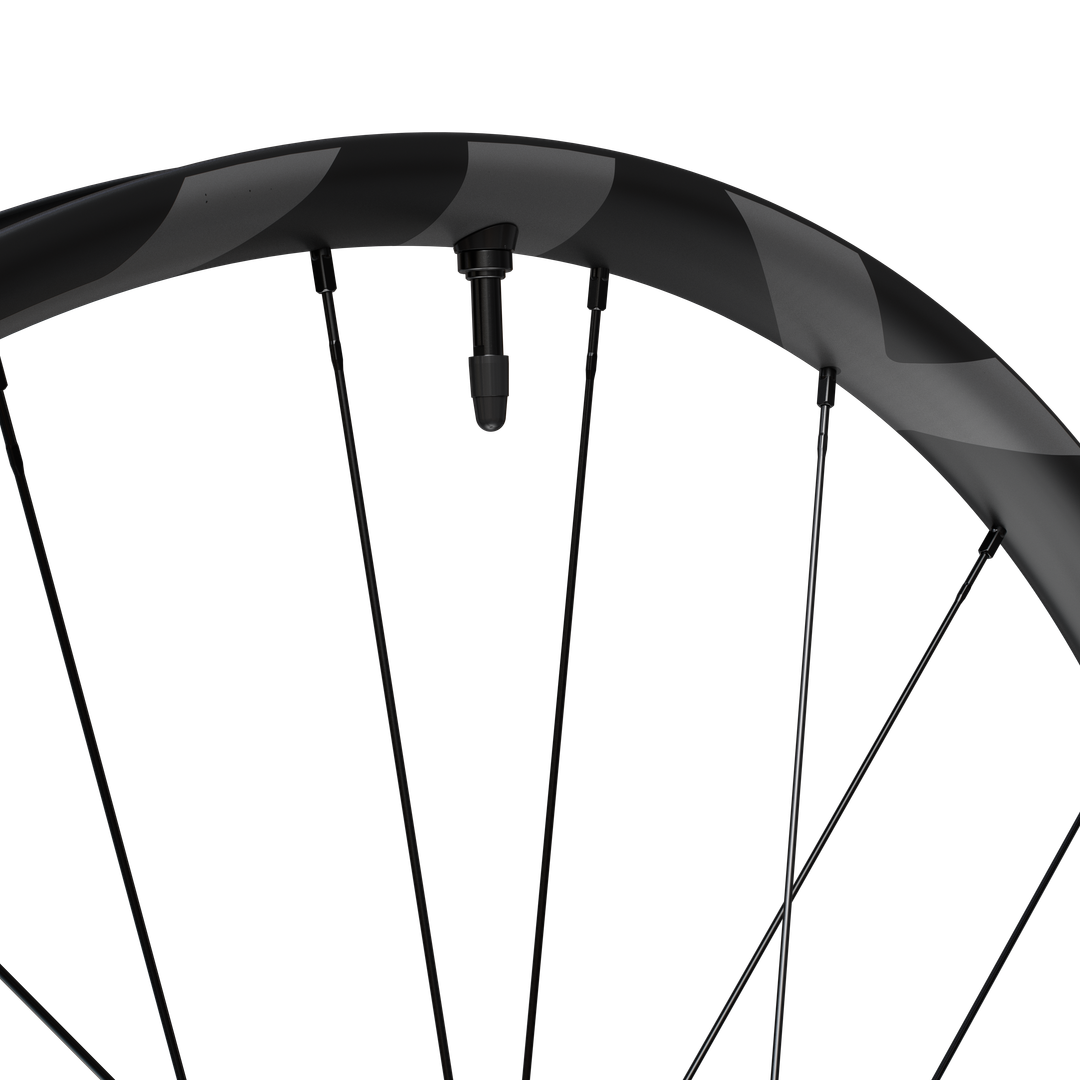

Tubeless compatible.
Asymmetrical profile.
Tubeless rim tape and valve supplied.
For 29 x 2.20 - 2.60 tires.

Spokes :
Straight titanium spokes 2.2-2.0-1.7-2.0.
24 spokes.
2 spare spokes and nipples supplied.
Spoke wrench supplied.

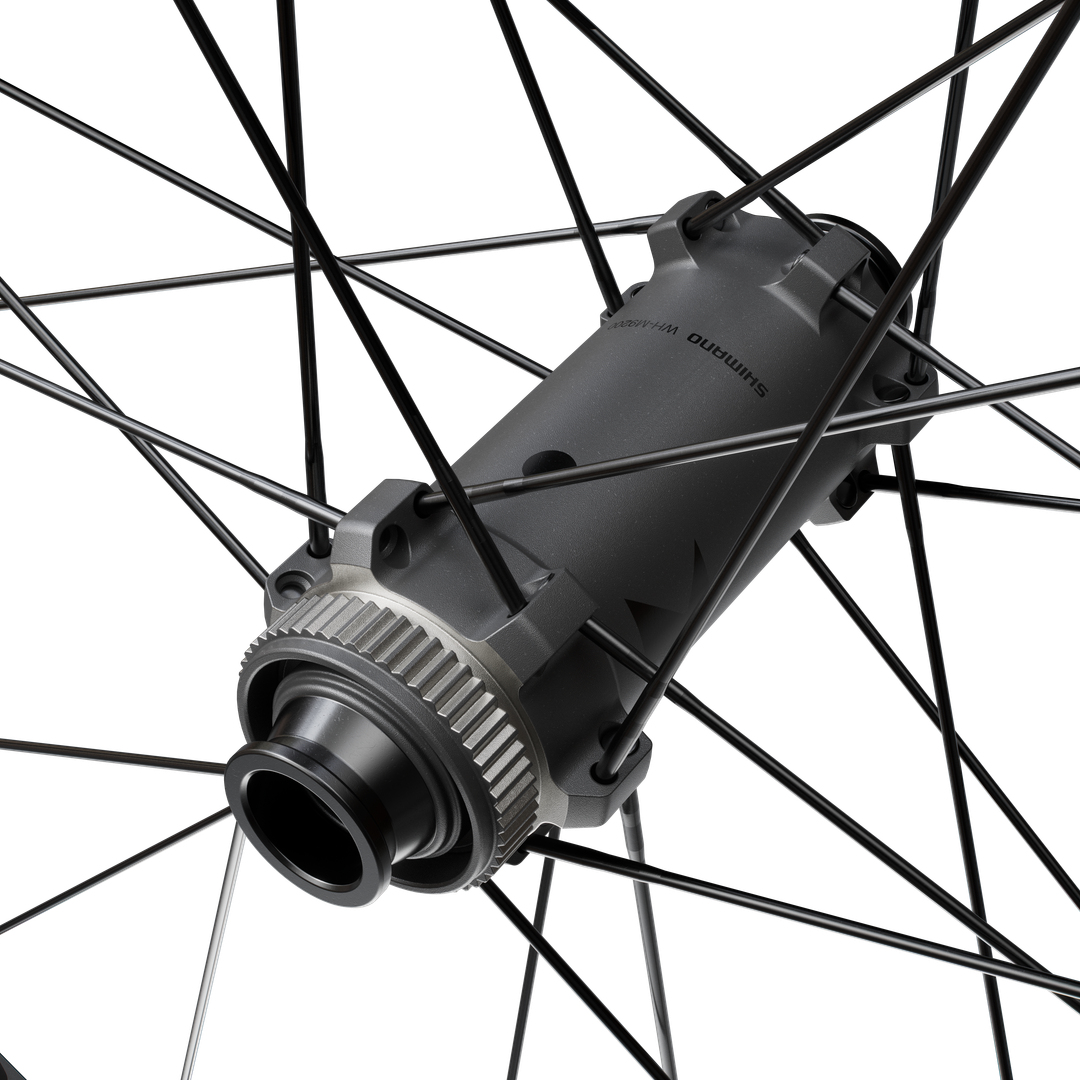

Hub :
15x110mm axle.
Aluminum body.
Stainless steel cartridge bearings.
Labyrinth + Contact seals.
Centerlock disc clamping (nut supplied).

Replacement program in case of breakage (subject to conditions, please contact us for more information).
Weight (manufacturer): 517g.
;

Informations prix

Supplier suggested retail price in May 2025
