WOLFTOOTH

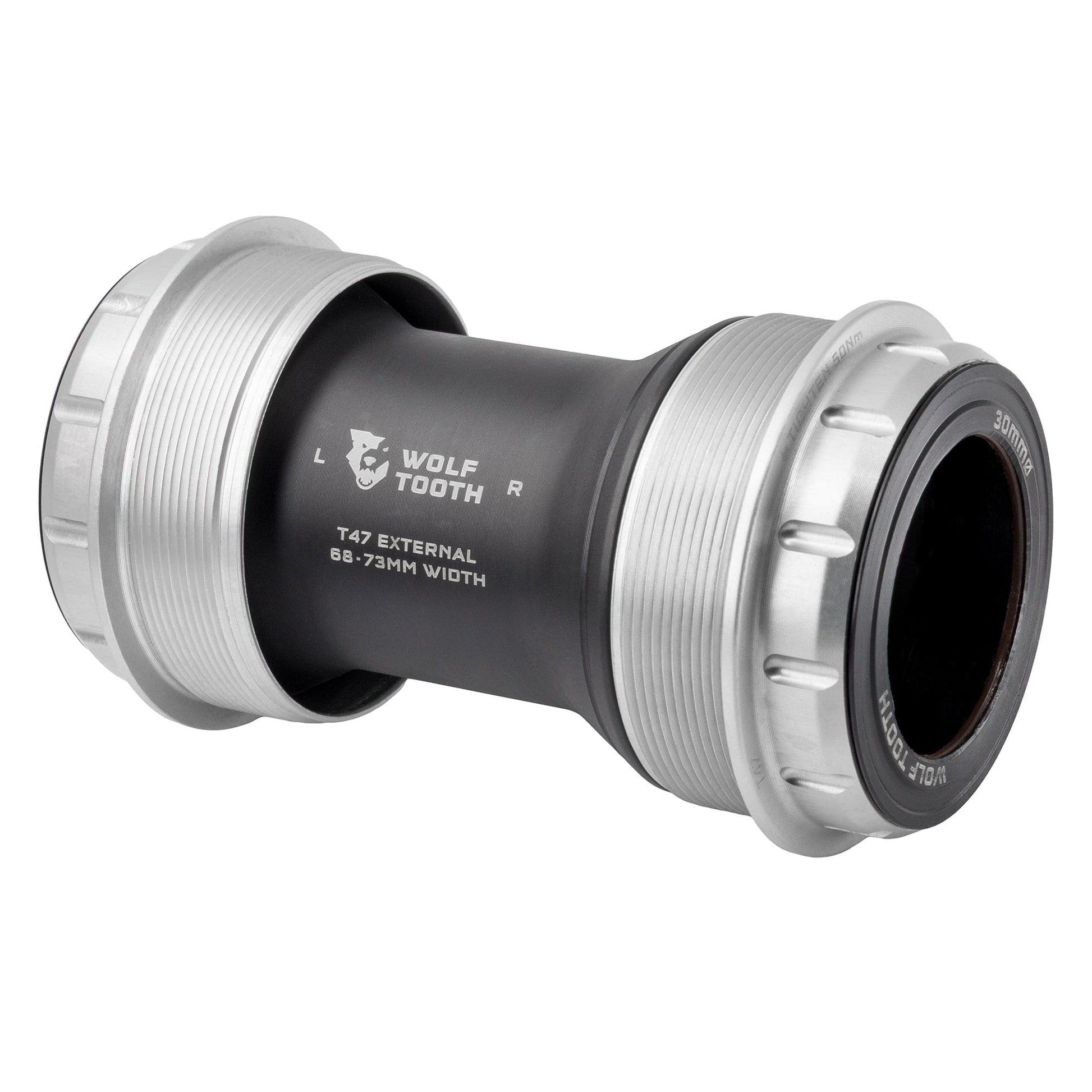

WOLFTOOTH T47 External 30mm raw Silver crankset

Réf. fabricant : WBB-T47E-30-RSIL
Give your bike the ultimate in performance with the Wolf Tooth T47 External bottom bracket for 30 mm axles. Designed for unrivalled smoothness of... Read more
178,40 €
178,40 €
View full details

Description

Give your bike the ultimate in performance with the Wolf Tooth T47 External bottom bracket for 30 mm axles. Designed for unrivalled smoothness of rotation, superior durability and hermetic protection against the elements, this bottom bracket is the ultimate upgrade for cyclists who make no compromises. It guarantees direct, frictionless power transmission for maximum efficiency.

Whether you're blasting down mountain bike trails, exploring gravel paths or chasing seconds on the road, this bottom bracket is your ally. Its ultra-robust construction and advanced sealing system ensure rock-solid reliability, allowing you to concentrate on your performance, whatever the weather or terrain conditions.

The ingenious design relies on custom bearings and polymer bushings that eliminate creaking by preventing metal-to-metal contact. Surgically precise CNC-machined aluminum cups, combined with multi-barrier seals, create an impenetrable fortress. Installation is quick and easy, thanks to the use of standard tools.

Ref: 15615576703356

Informations techniques

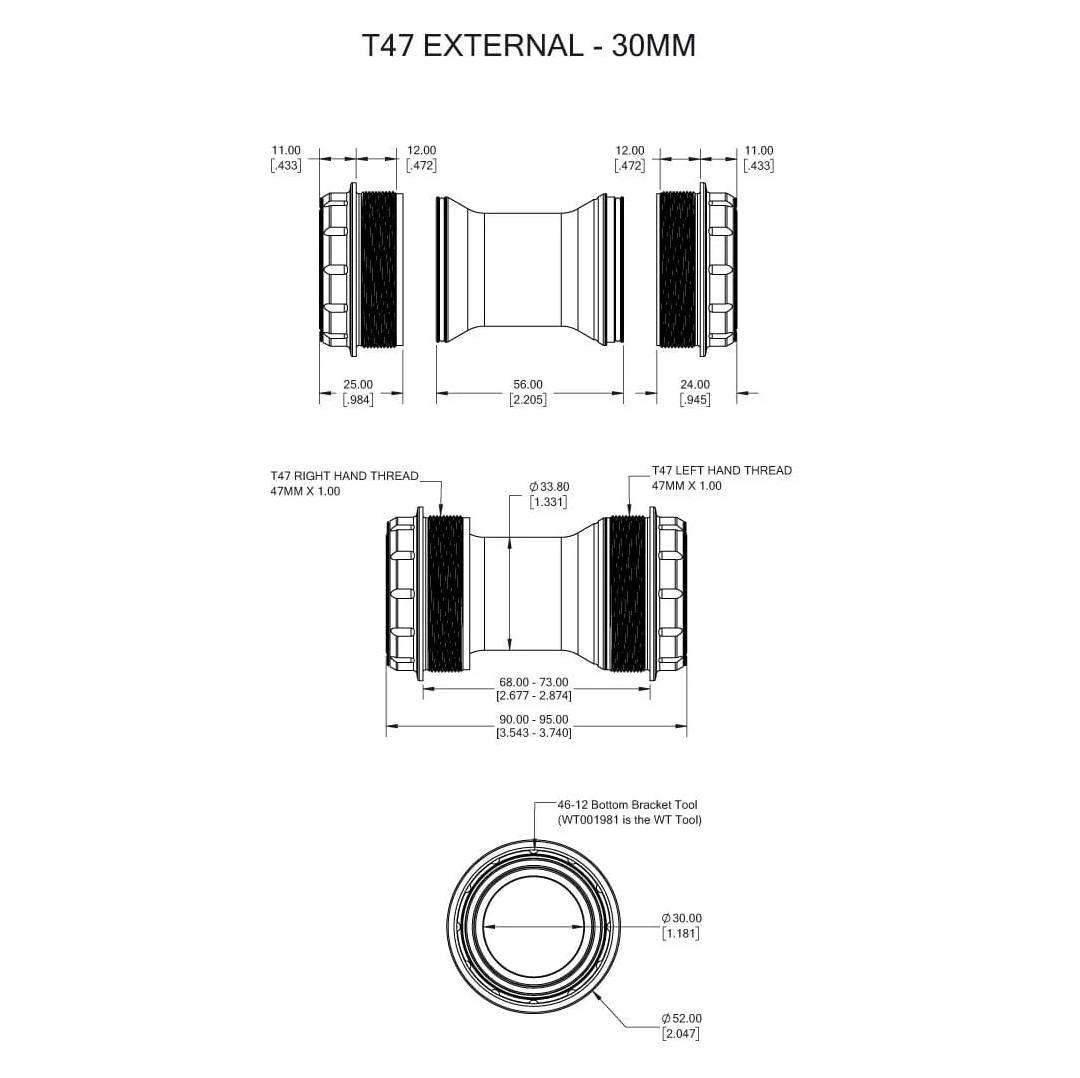

Standard: T47 External
Axis compatibility: 30 mm
Supported housing widths: 68-73 mm (via adjustable internal sleeve)
Materials: CNC-machined 6061-T6 aluminum cups; glass-filled nylon inner sleeve; NBR/EPDM/urethane seals; AISI 52100 steel bearings (Rc 61-66 balls, Rc 60-65 races) with ACOSUR ZNA coating
Sealing: axle O-rings, bearing/ring gutter seals, low-friction internal/external seals, shell O-rings, and labyrinth-type end caps
Weight: 30 mm - 91 g (complete set without spacers)
Required tools: Standard 46-12 spline tool for 30 mm + grease
Available colors: Black, Orange, Ultraviolet Purple, Raw Silver
Pack contents: 1x bottom bracket complete (cups + bearings), 2x shell spacers 2.5 mm, axle spacers (0.5 mm, 1 mm, 2 mm, 3 mm, 5 mm) for 30 mm
;
